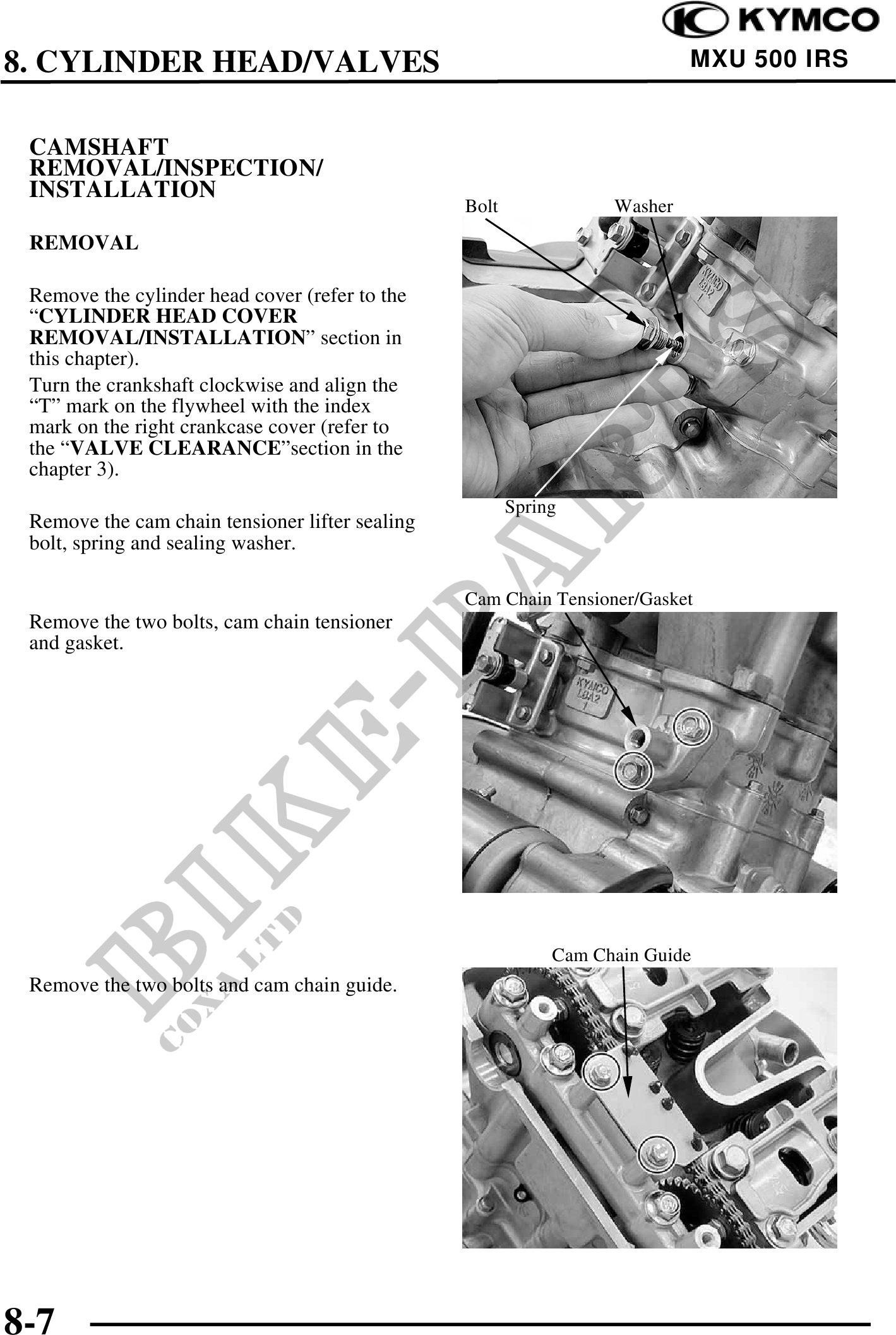

          8. CYLINDER HEAD/VALVES                                                     MXU 500 IRS


 CAMSHAFT
 REMOVAL/INSPECTION/
 INSTALLATION
                                                 Bolt              Washer
 REMOVAL

 Remove the cylinder head cover (refer to the
 "CYLINDER HEAD COVER
 REMOVAL/INSTALLATION" section in
 this chapter).
 Turn the crankshaft clockwise and align the
 "T" mark on the flywheel with the index
 mark on the right crankcase cover (refer to
 the "VALVE CLEARANCE"section in the
 chapter 3).
                                                        Spring
 Remove the cam chain tensioner lifter sealing
 bolt, spring and sealing washer.

                                                 Cam Chain Tensioner/Gasket
 Remove the two bolts, cam chain tensioner
 and gasket.




                                                             Cam Chain Guide
 Remove the two bolts and cam chain guide.




8-7
