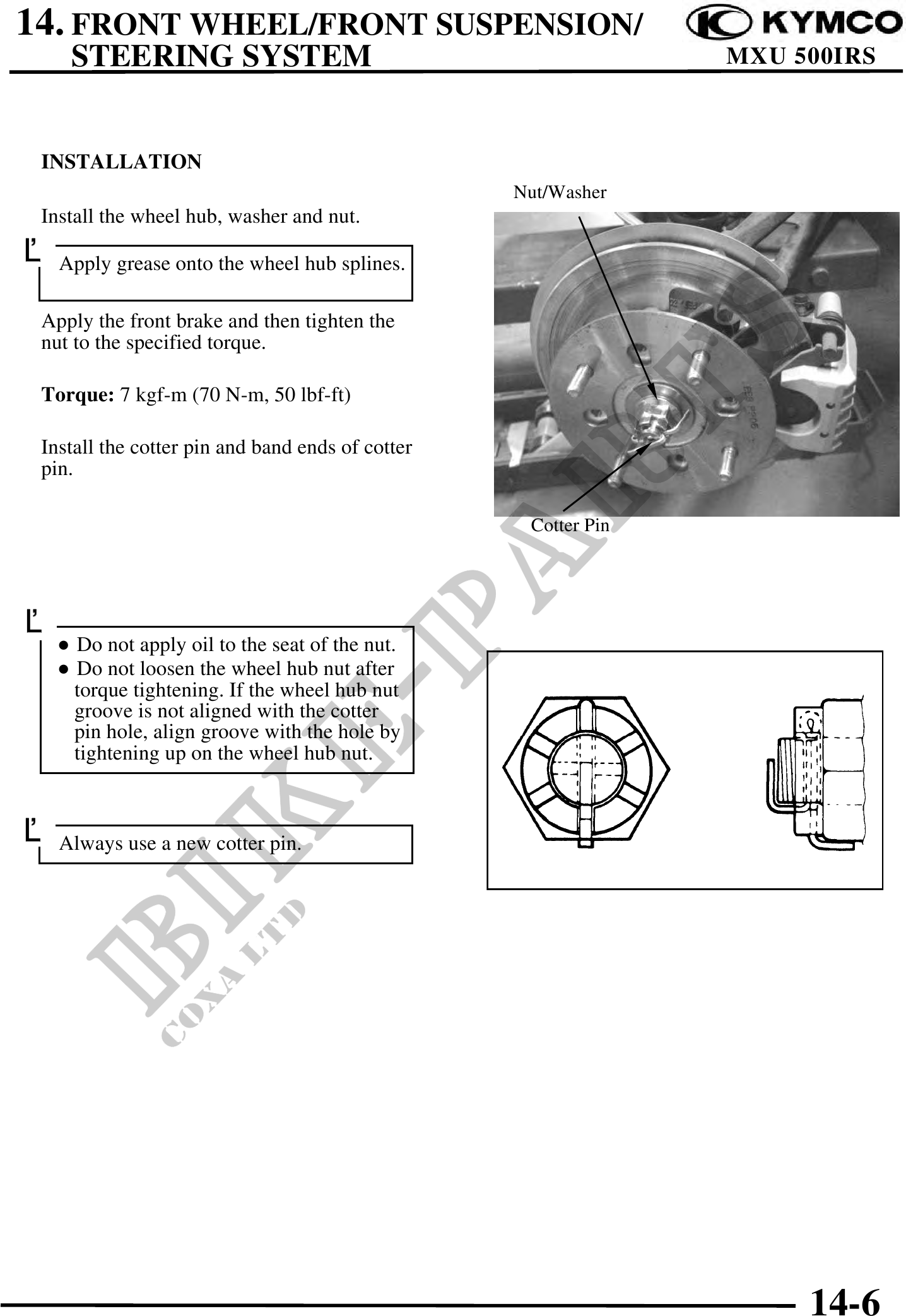

14. FRONT WHEEL/FRONT SUSPENSION/
STEERING SYSTEM MXU 500IRS
INSTALLATION
Nut/Washer
Install the wheel hub, washer and nut.
Apply grease onto the wheel hub splines.
Apply the front brake and then tighten the
nut to the specified torque.
Torque: 7 kgf-m (70 N-m, 50 lbf-ft)
Install the cotter pin and band ends of cotter
pin.
Cotter Pin
Do not apply oil to the seat of the nut.
Do not loosen the wheel hub nut after
torque tightening. If the wheel hub nut
groove is not aligned with the cotter
pin hole, align groove with the hole by
tightening up on the wheel hub nut.
Always use a new cotter pin.
14-6
