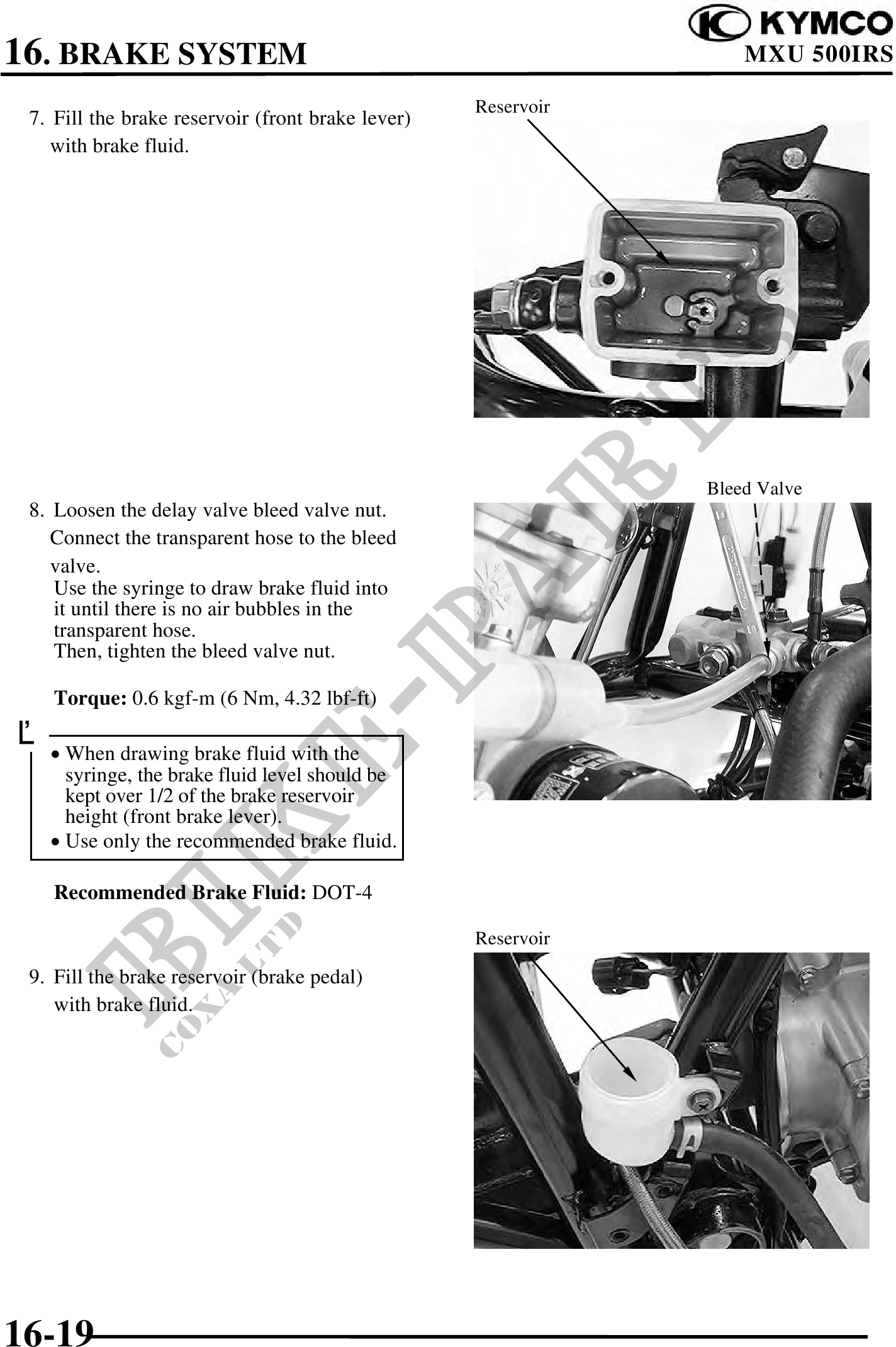

16. BRAKE SYSTEM MXU 500IRS
Reservoir
7. Fill the brake reservoir (front brake lever)
with brake fluid.
Bleed Valve
8. Loosen the delay valve bleed valve nut.
Connect the transparent hose to the bleed
valve.
Use the syringe to draw brake fluid into
it until there is no air bubbles in the
transparent hose.
Then, tighten the bleed valve nut.
Torque: 0.6 kgf-m (6 Nm, 4.32 lbf-ft)
· When drawing brake fluid with the
syringe, the brake fluid level should be
kept over 1/2 of the brake reservoir
height (front brake lever).
· Use only the recommended brake fluid.
Recommended Brake Fluid: DOT-4
Reservoir
9. Fill the brake reservoir (brake pedal)
with brake fluid.
16-19
