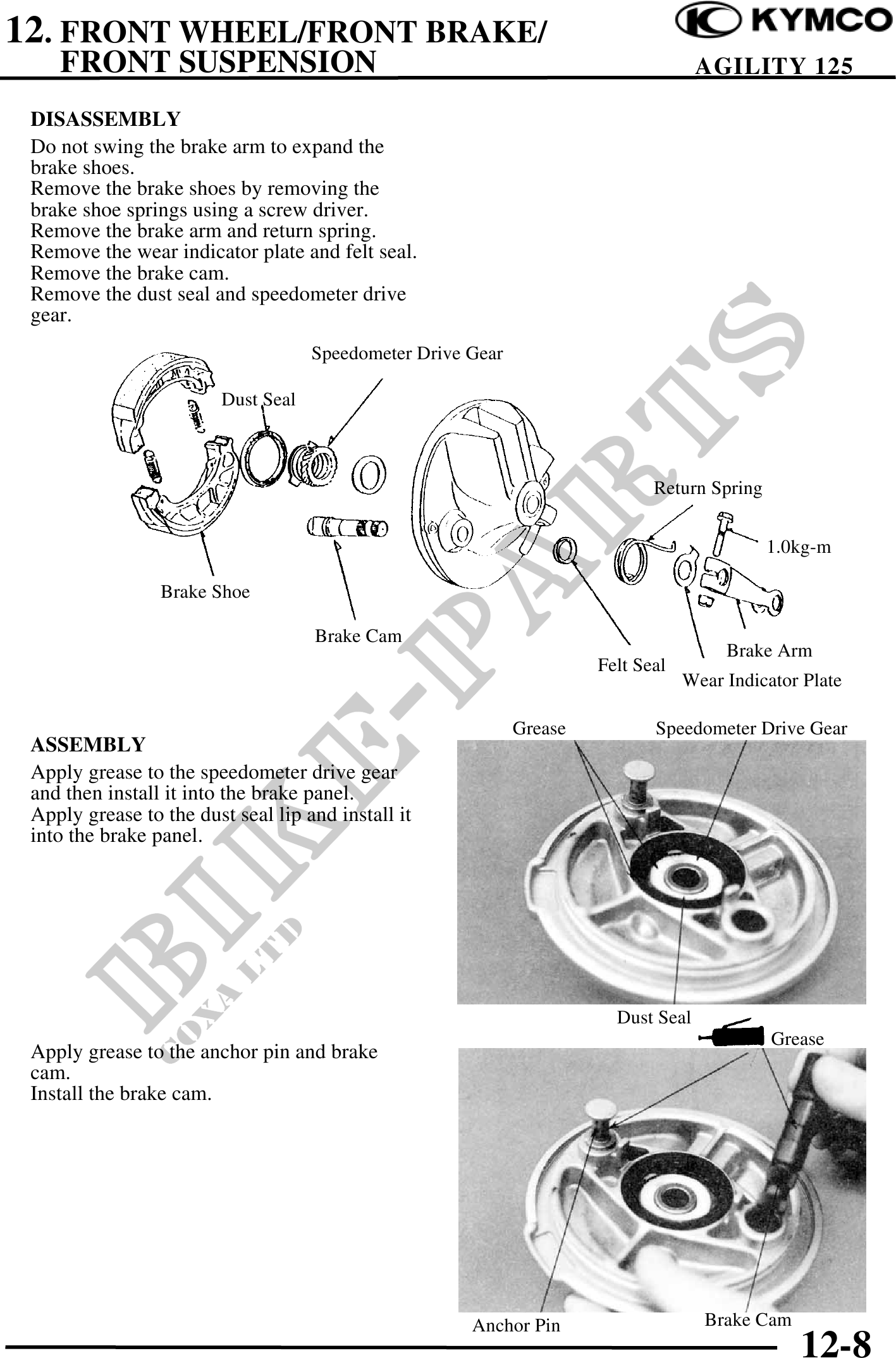

12. FRONT WHEEL/FRONT BRAKE/ FRONT SUSPENSION AGILITY 125 DISASSEMBLY Do not swing the brake arm to expand the brake shoes. Remove the brake shoes by removing the brake shoe springs using a screw driver. Remove the brake arm and return spring. Remove the wear indicator plate and felt seal. Remove the brake cam. Remove the dust seal and speedometer drive gear. Speedometer Drive Gear Dust Seal Return Spring 1.0kg-m Brake Shoe Brake Cam Brake Arm Felt Seal Wear Indicator Plate Grease Speedometer Drive Gear ASSEMBLY Apply grease to the speedometer drive gear and then install it into the brake panel. Apply grease to the dust seal lip and install it into the brake panel. Dust Seal Grease Apply grease to the anchor pin and brake cam. Install the brake cam. Anchor Pin Brake Cam 12-8
