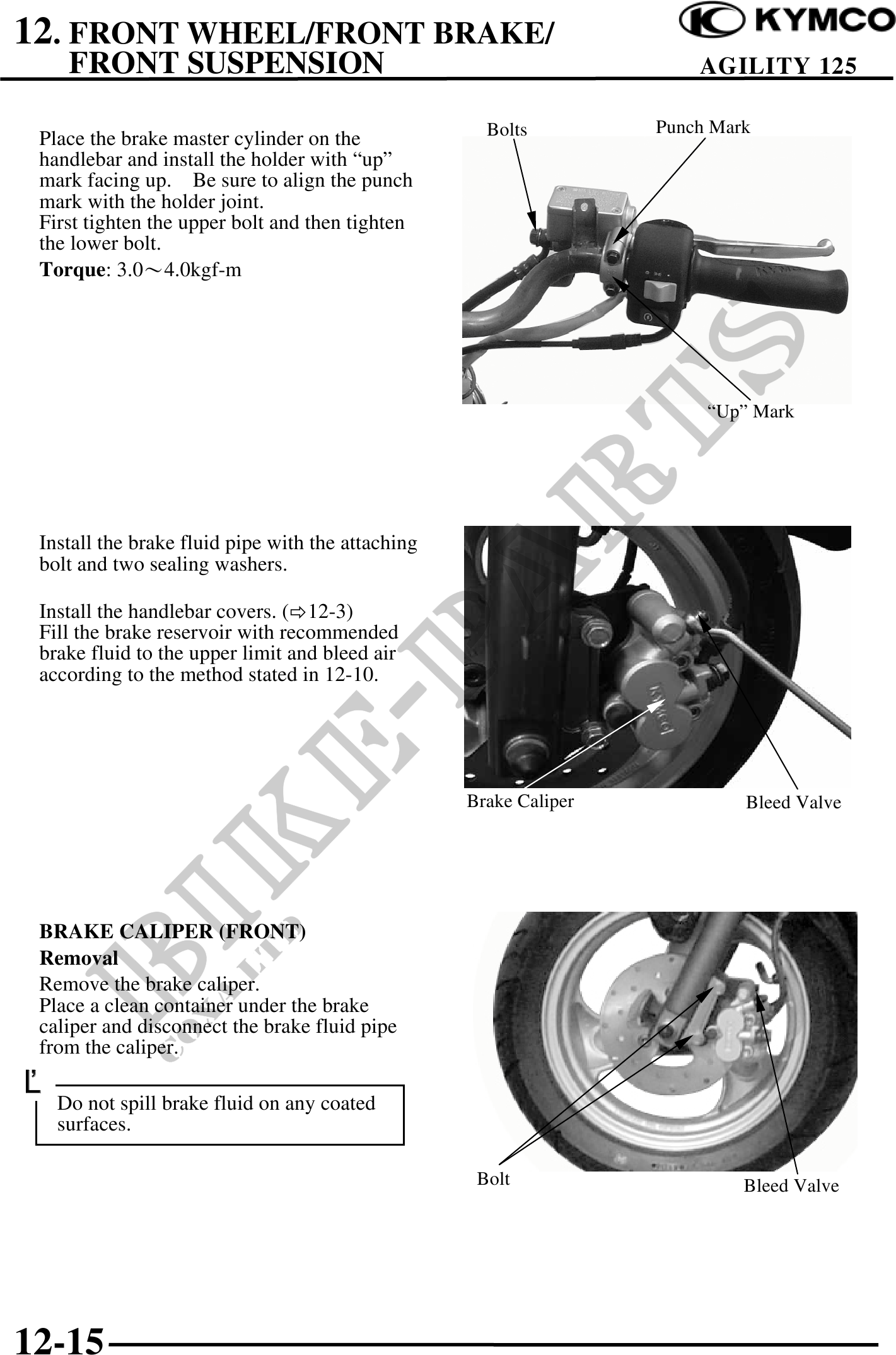

12. FRONT WHEEL/FRONT BRAKE/ FRONT SUSPENSION AGILITY 125 Bolts Punch Mark Place the brake master cylinder on the handlebar and install the holder with "up" mark facing up. Be sure to align the punch mark with the holder joint. First tighten the upper bolt and then tighten the lower bolt. Torque: 3.04.0kgf-m "Up" Mark Install the brake fluid pipe with the attaching bolt and two sealing washers. Install the handlebar covers. ( 12-3) Fill the brake reservoir with recommended brake fluid to the upper limit and bleed air according to the method stated in 12-10. Brake Caliper Bleed Valve BRAKE CALIPER (FRONT) Removal Remove the brake caliper. Place a clean container under the brake caliper and disconnect the brake fluid pipe from the caliper. Do not spill brake fluid on any coated surfaces. Bolt Bleed Valve 12-15
