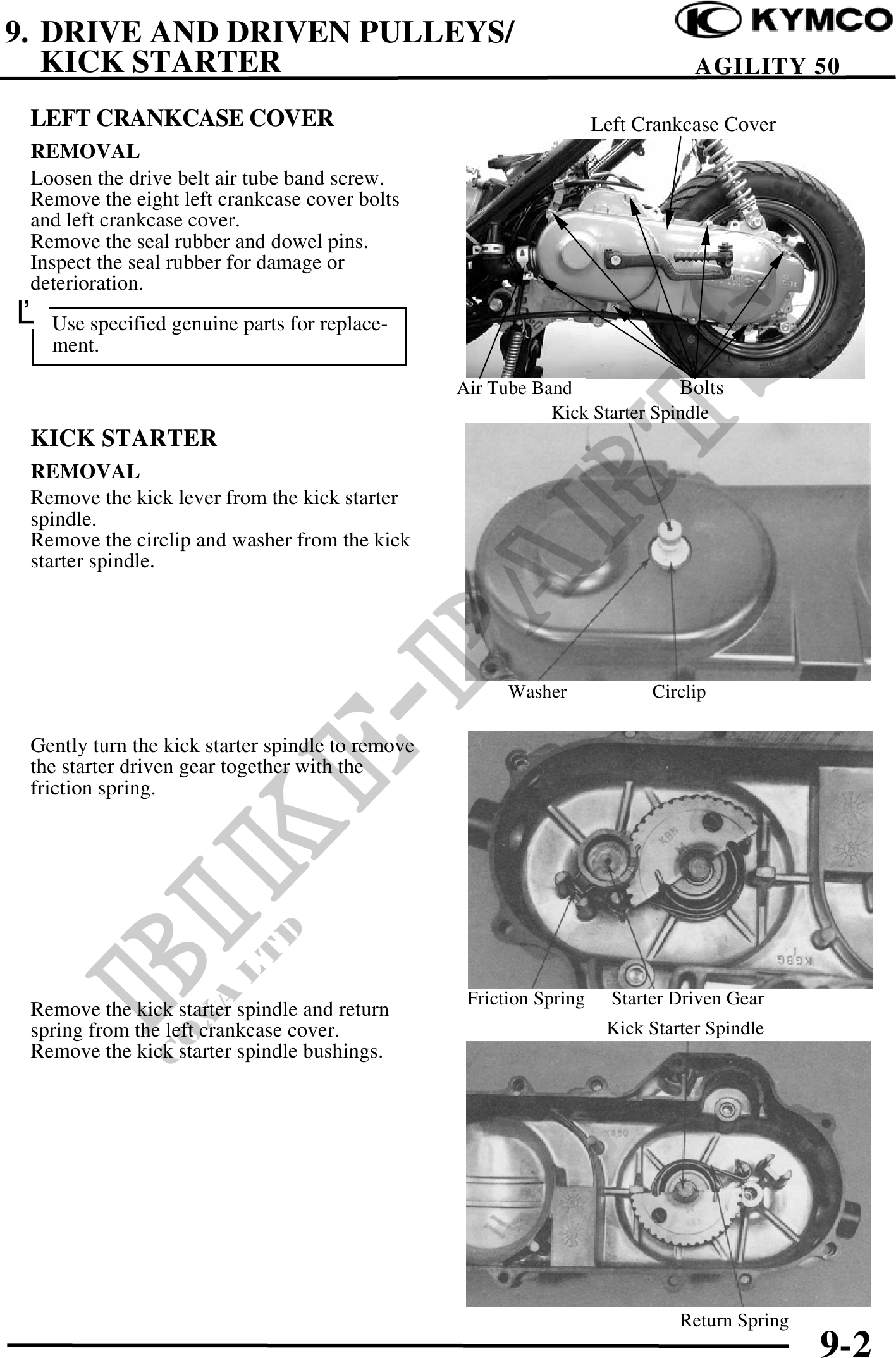

9. DRIVE AND DRIVEN PULLEYS/ KICK STARTER AGILITY 50 LEFT CRANKCASE COVER Left Crankcase Cover REMOVAL Loosen the drive belt air tube band screw. Remove the eight left crankcase cover bolts and left crankcase cover. Remove the seal rubber and dowel pins. Inspect the seal rubber for damage or deterioration. Use specified genuine parts for replace- ment. Air Tube Band Bolts Kick Starter Spindle KICK STARTER REMOVAL Remove the kick lever from the kick starter spindle. Remove the circlip and washer from the kick starter spindle. Washer Circlip Gently turn the kick starter spindle to remove the starter driven gear together with the friction spring. Friction Spring Starter Driven Gear Remove the kick starter spindle and return spring from the left crankcase cover. Kick Starter Spindle Remove the kick starter spindle bushings. Return Spring 9-2
