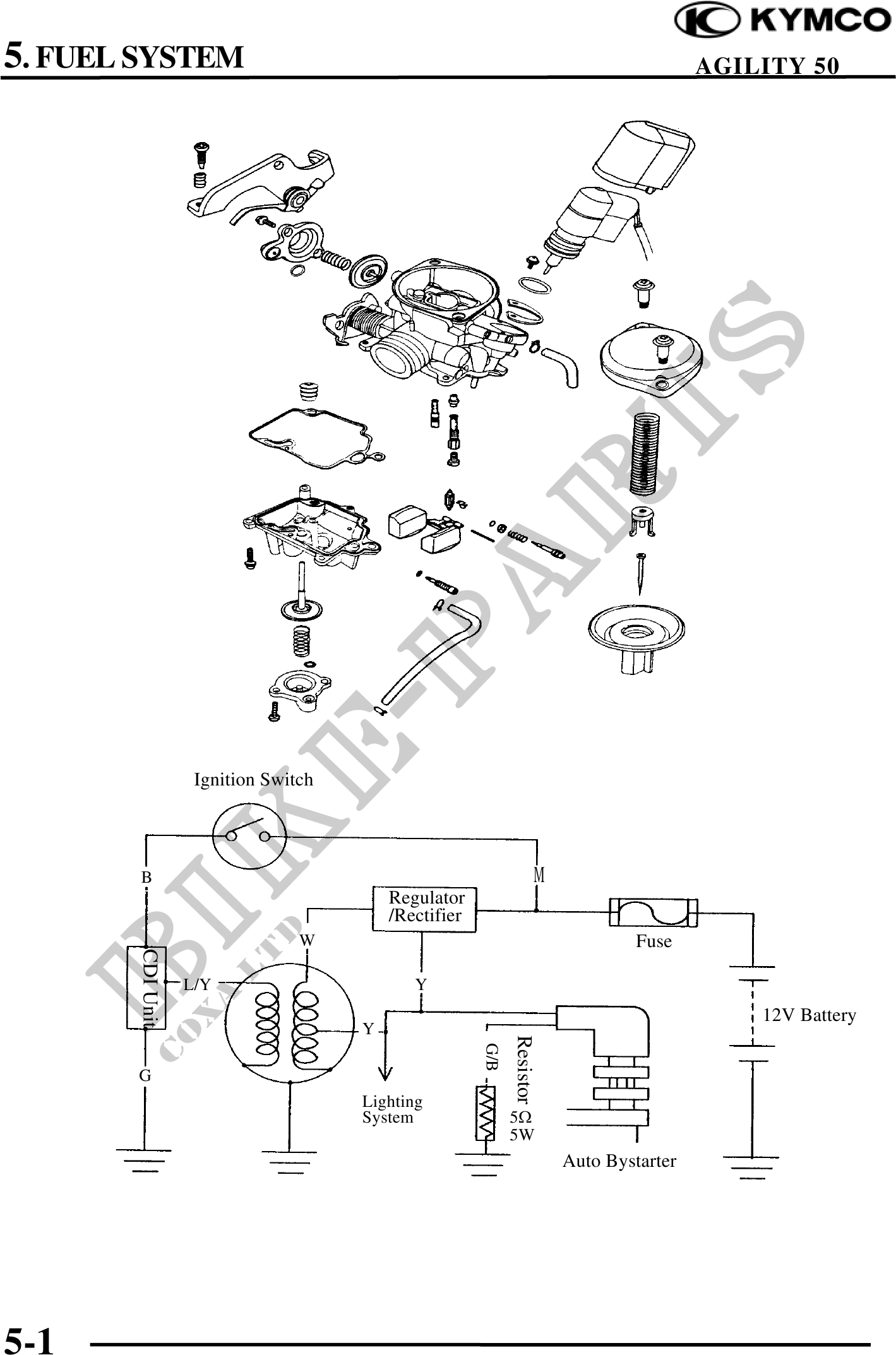

          5. FUEL SYSTEM                                                                              AGILITY 50




                   Ignition Switch




       B                                                               M
                                         Regulator
                                         /Rectifier
                                W                                                   Fuse
       CDI Unit




                  L/Y                       Y
                                                                                                12V Battery
                                     Y
                                                            Resistor
                                                      G/B




       G
                                     Lighting
                                     System                 5
                                                            5W
                                                                           Auto Bystarter




5-1
