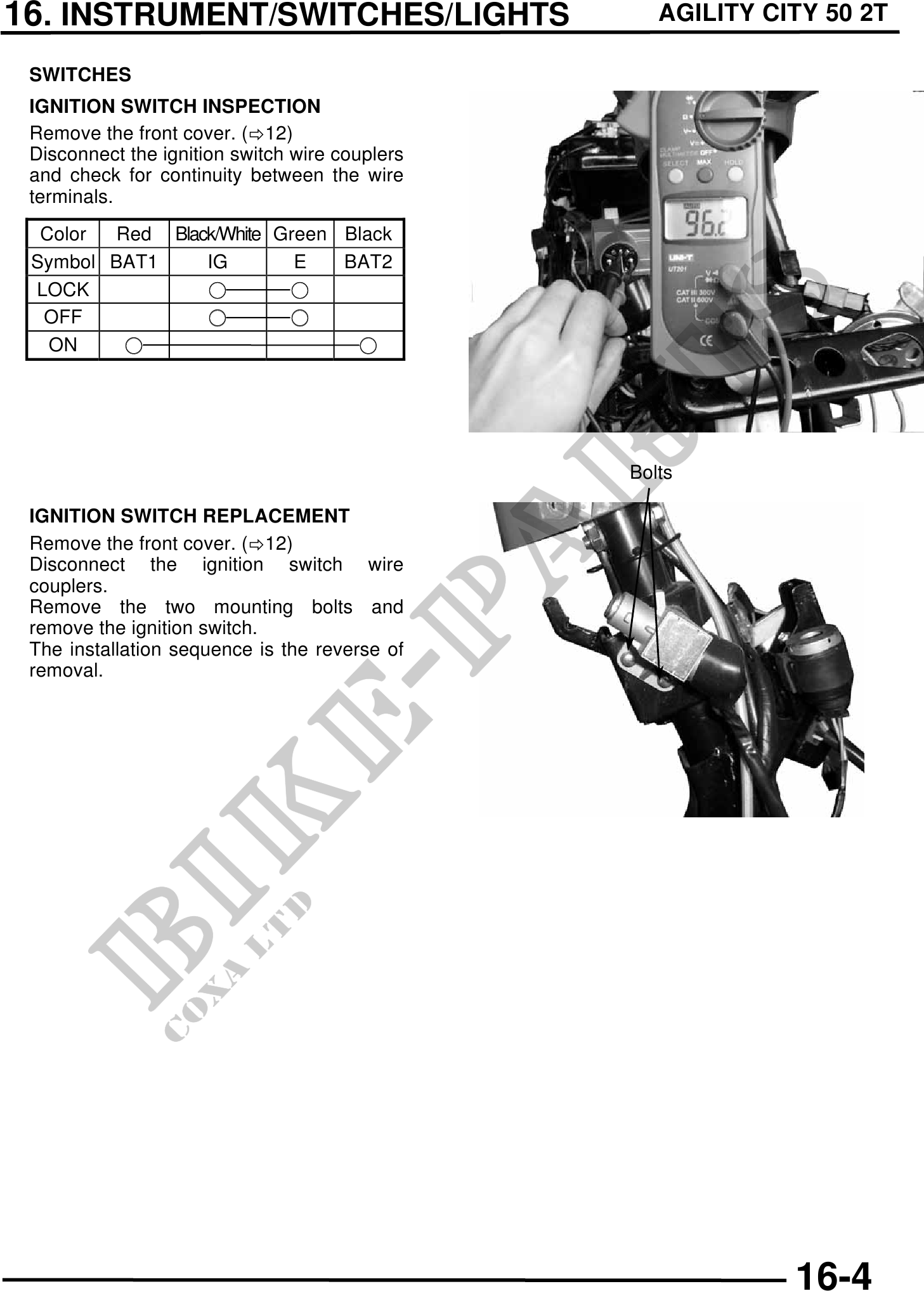

16. INSTRUMENT/SWITCHES/LIGHTS AGILITY CITY 50 2T SWITCHES IGNITION SWITCH INSPECTION Remove the front cover. ( 12) Disconnect the ignition switch wire couplers and check for continuity between the wire terminals. Color Red Black/White Green Black Symbol BAT1 IG E BAT2 LOCK OFF ON Bolts IGNITION SWITCH REPLACEMENT Remove the front cover. ( 12) Disconnect the ignition switch wire couplers. Remove the two mounting bolts and remove the ignition switch. The installation sequence is the reverse of removal. 16-4
