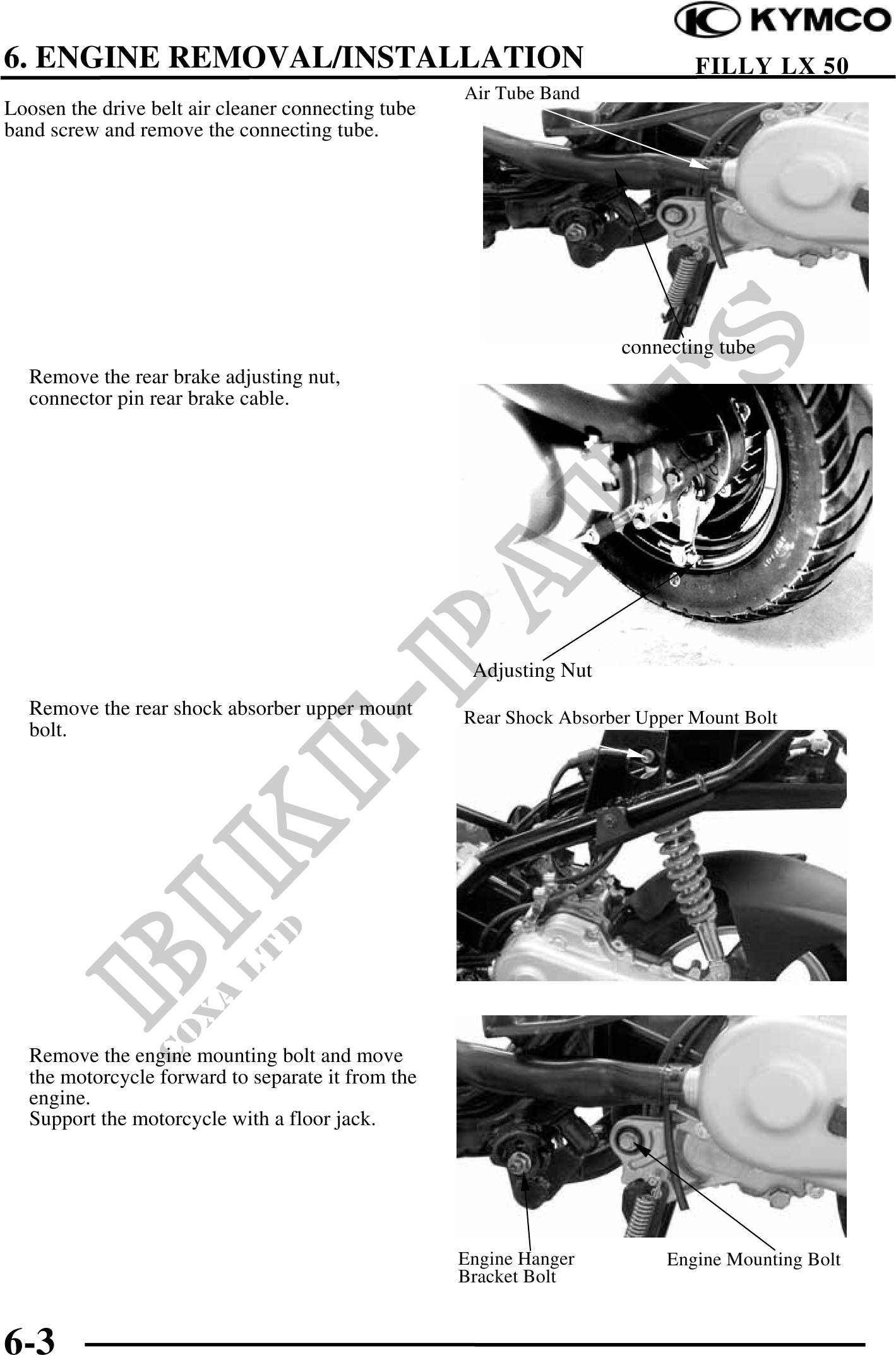

6. ENGINE REMOVAL/INSTALLATION FILLY LX 50
Air Tube Band
Loosen the drive belt air cleaner connecting tube
band screw and remove the connecting tube.
connecting tube
Remove the rear brake adjusting nut,
connector pin rear brake cable.
Adjusting Nut
Remove the rear shock absorber upper mount Rear Shock Absorber Upper Mount Bolt
bolt.
Remove the engine mounting bolt and move
the motorcycle forward to separate it from the
engine.
Support the motorcycle with a floor jack.
Engine Hanger Engine Mounting Bolt
Bracket Bolt
