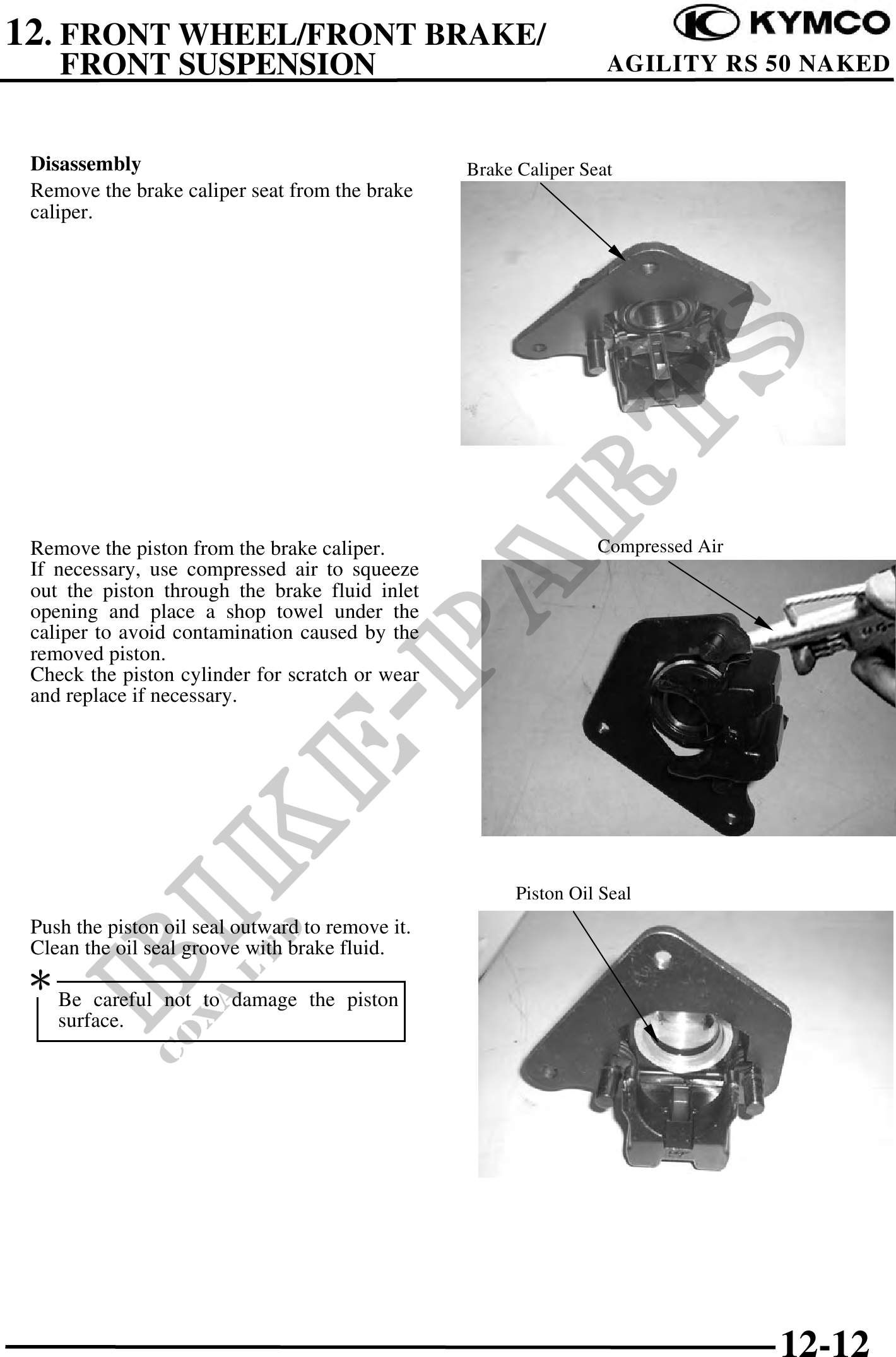

12. FRONT WHEEL/FRONT BRAKE/
FRONT SUSPENSION AGILITY RS 50 NAKED
Disassembly Brake Caliper Seat
Remove the brake caliper seat from the brake
caliper.
Remove the piston from the brake caliper. Compressed Air
If necessary, use compressed air to squeeze
out the piston through the brake fluid inlet
opening and place a shop towel under the
caliper to avoid contamination caused by the
removed piston.
Check the piston cylinder for scratch or wear
and replace if necessary.
Piston Oil Seal
Push the piston oil seal outward to remove it.
Clean the oil seal groove with brake fluid.
Be careful not to damage the piston
surface.
12-12
