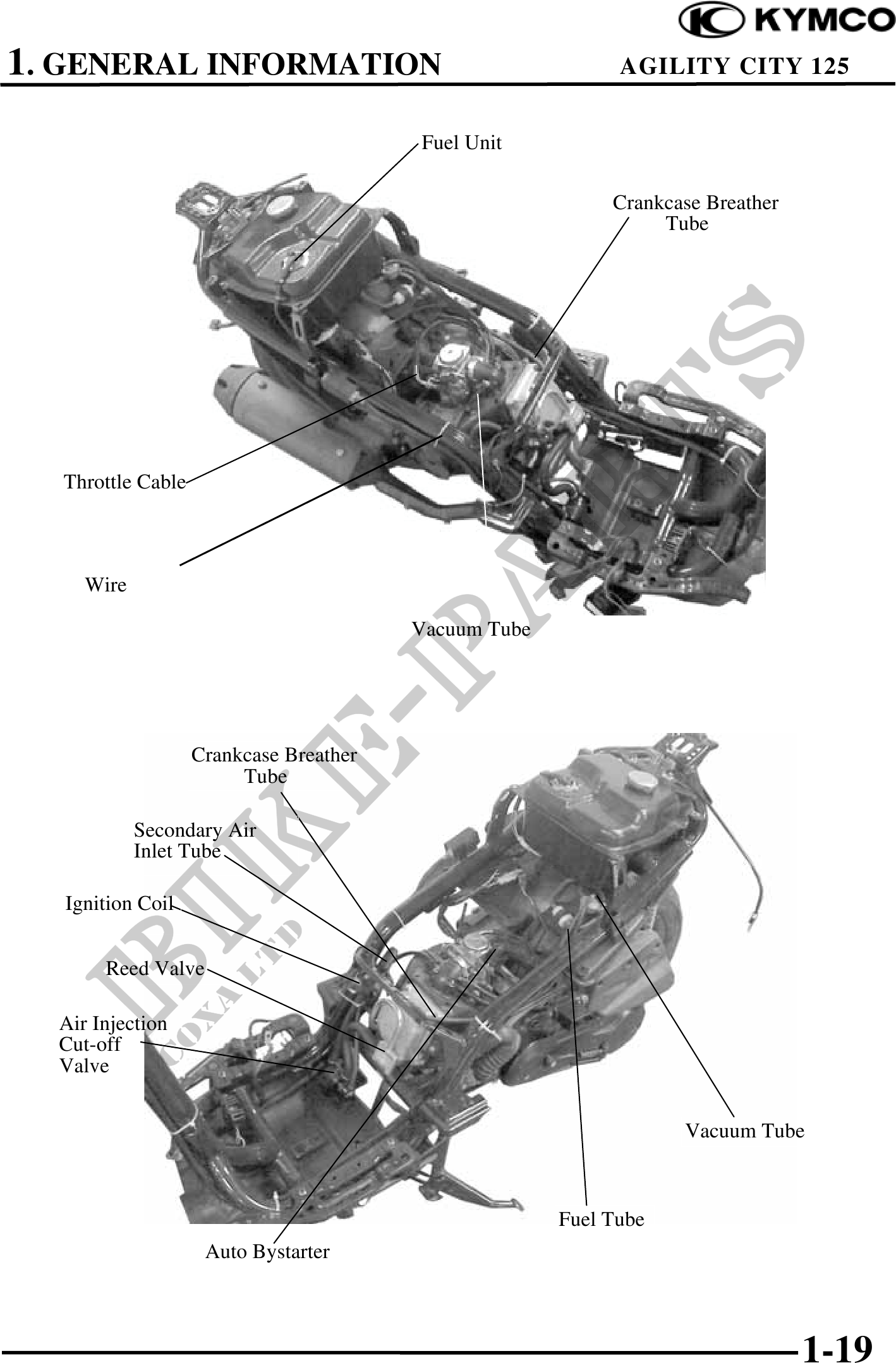

          1. GENERAL INFORMATION                                      AGILITY CITY 125


                                        Fuel Unit

                                                           Crankcase Breather
                                                                Tube




  Throttle Cable



     Wire

                                        Vacuum Tube




                   Crankcase Breather
                        Tube

            Secondary Air
            Inlet Tube

  Ignition Coil


       Reed Valve

  Air Injection
  Cut-off
  Valve


                                                                  Vacuum Tube



                                                      Fuel Tube
                    Auto Bystarter



                                                                                1-19
