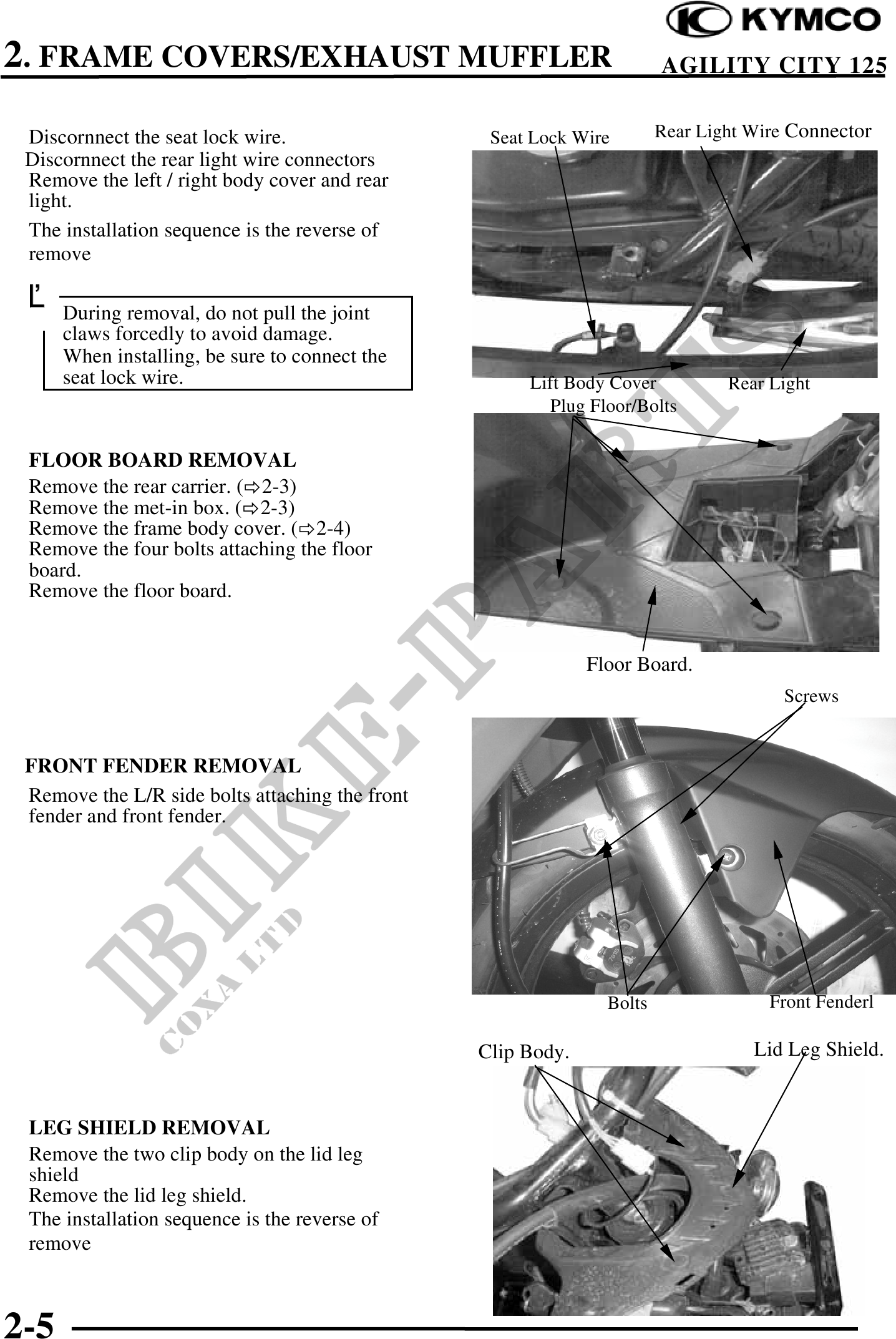

2. FRAME COVERS/EXHAUST MUFFLER AGILITY CITY 125 Discornnect the seat lock wire. Seat Lock Wire Rear Light Wire Connector Discornnect the rear light wire connectors Remove the left / right body cover and rear light. The installation sequence is the reverse of remove During removal, do not pull the joint claws forcedly to avoid damage. When installing, be sure to connect the seat lock wire. Lift Body Cover Rear Light Plug Floor/Bolts FLOOR BOARD REMOVAL Remove the rear carrier. ( 2-3) Remove the met-in box. ( 2-3) Remove the frame body cover. ( 2-4) Remove the four bolts attaching the floor board. Remove the floor board. Floor Board. Screws FRONT FENDER REMOVAL Remove the L/R side bolts attaching the front fender and front fender. Bolts Front Fenderl Clip Body. Lid Leg Shield. LEG SHIELD REMOVAL Remove the two clip body on the lid leg shield Remove the lid leg shield. The installation sequence is the reverse of remove 2-5
