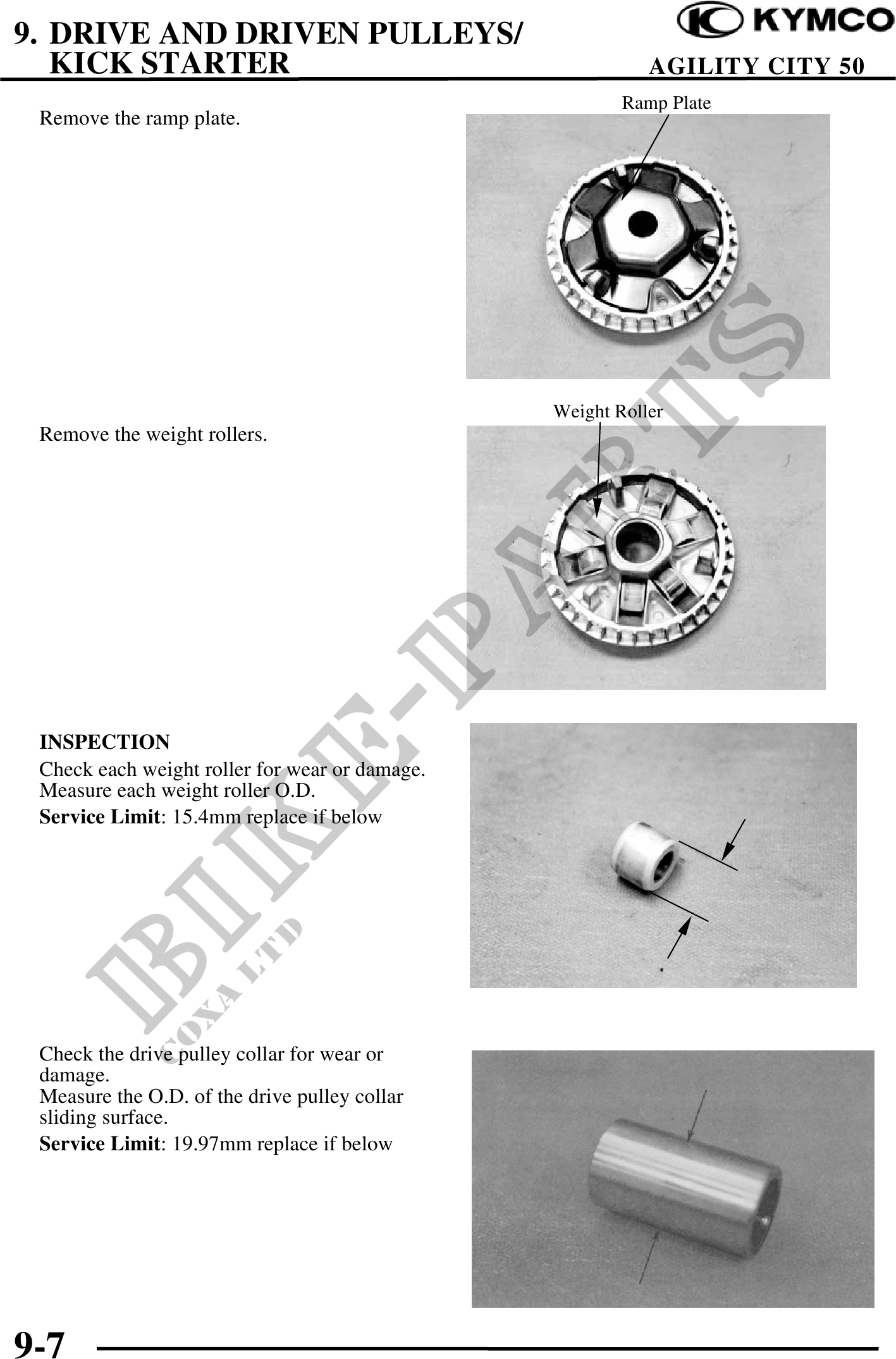

9. DRIVE AND DRIVEN PULLEYS/
KICK STARTER AGILITY CITY 50
Ramp Plate
Remove the ramp plate.
Weight Roller
Remove the weight rollers.
INSPECTION
Check each weight roller for wear or damage.
Measure each weight roller O.D.
Service Limit: 15.4mm replace if below
Check the drive pulley collar for wear or
damage.
Measure the O.D. of the drive pulley collar
sliding surface.
Service Limit: 19.97mm replace if below
9-7
