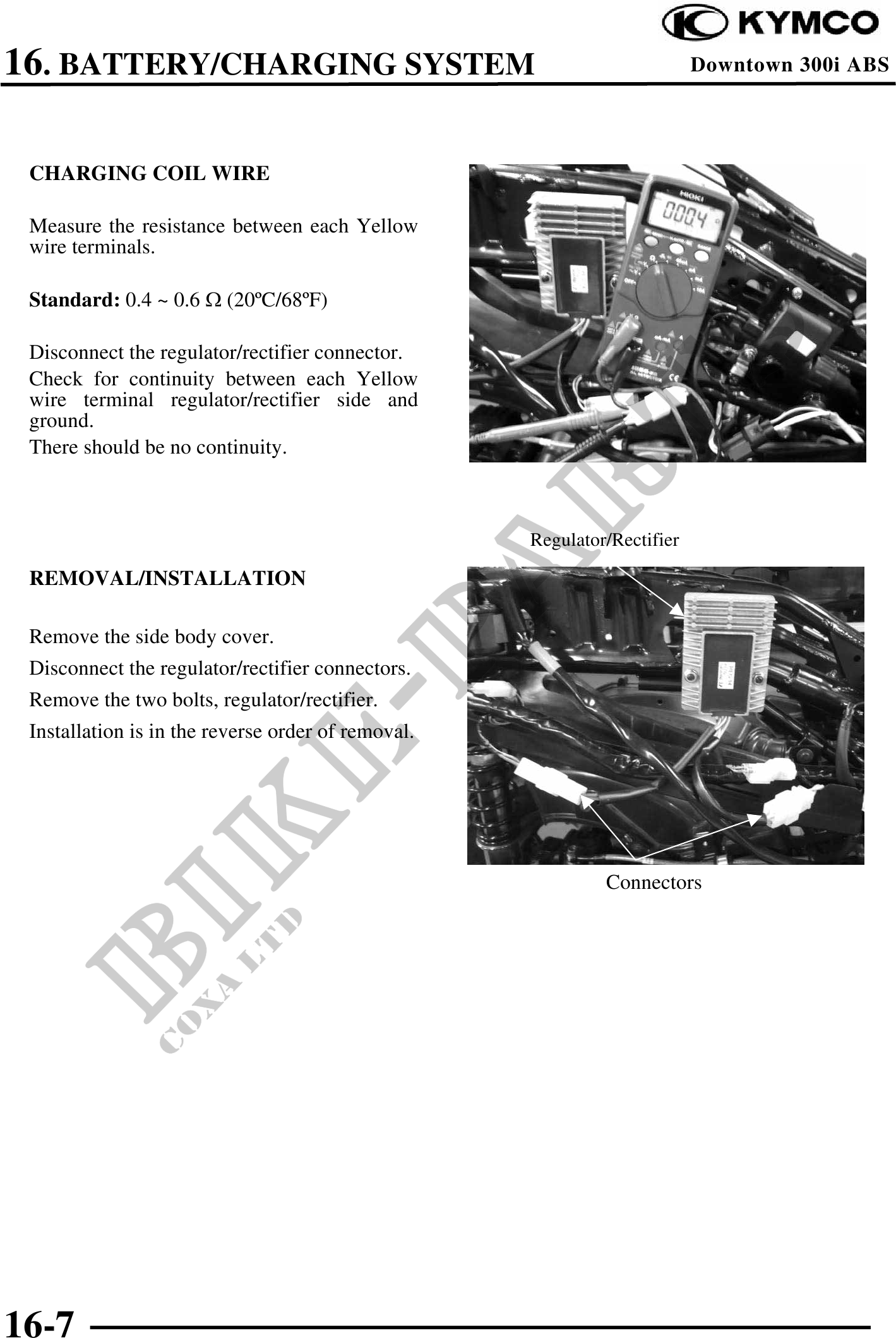

16. BATTERY/CHARGING SYSTEM Downtown 300i ABS
CHARGING COIL WIRE
Measure the resistance between each Yellow
wire terminals.
Standard: 0.4 ~ 0.6 (20C/68F)
Disconnect the regulator/rectifier connector.
Check for continuity between each Yellow
wire terminal regulator/rectifier side and
ground.
There should be no continuity.
Regulator/Rectifier
REMOVAL/INSTALLATION
Remove the side body cover.
Disconnect the regulator/rectifier connectors.
Remove the two bolts, regulator/rectifier.
Installation is in the reverse order of removal.
Connectors
16-7
