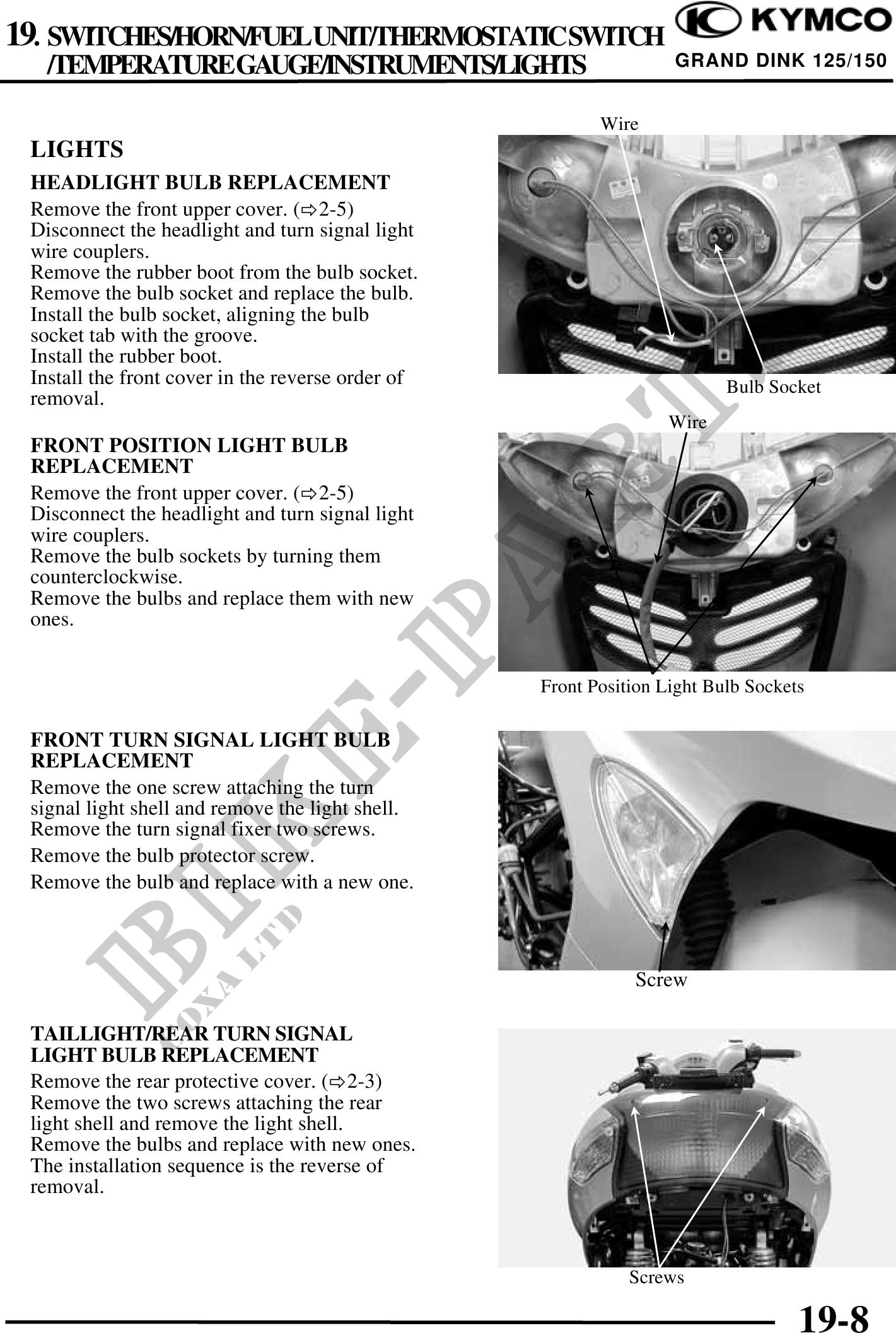

19. SWITCHES/HORN/FUELUNIT/THERMOSTATICSWITCH /TEMPERATUREGAUGE/INSTRUMENTS/LIGHTS GRAND DINK 125/150 Wire LIGHTS HEADLIGHT BULB REPLACEMENT Remove the front upper cover. ( 2-5) Disconnect the headlight and turn signal light wire couplers. Remove the rubber boot from the bulb socket. Remove the bulb socket and replace the bulb. Install the bulb socket, aligning the bulb socket tab with the groove. Install the rubber boot. Install the front cover in the reverse order of Bulb Socket removal. Wire FRONT POSITION LIGHT BULB REPLACEMENT Remove the front upper cover. ( 2-5) Disconnect the headlight and turn signal light wire couplers. Remove the bulb sockets by turning them counterclockwise. Remove the bulbs and replace them with new ones. Front Position Light Bulb Sockets FRONT TURN SIGNAL LIGHT BULB REPLACEMENT Remove the one screw attaching the turn signal light shell and remove the light shell. Remove the turn signal fixer two screws. Remove the bulb protector screw. Remove the bulb and replace with a new one. Screw TAILLIGHT/REAR TURN SIGNAL LIGHT BULB REPLACEMENT Remove the rear protective cover. ( 2-3) Remove the two screws attaching the rear light shell and remove the light shell. Remove the bulbs and replace with new ones. The installation sequence is the reverse of removal. Screws 19-8
