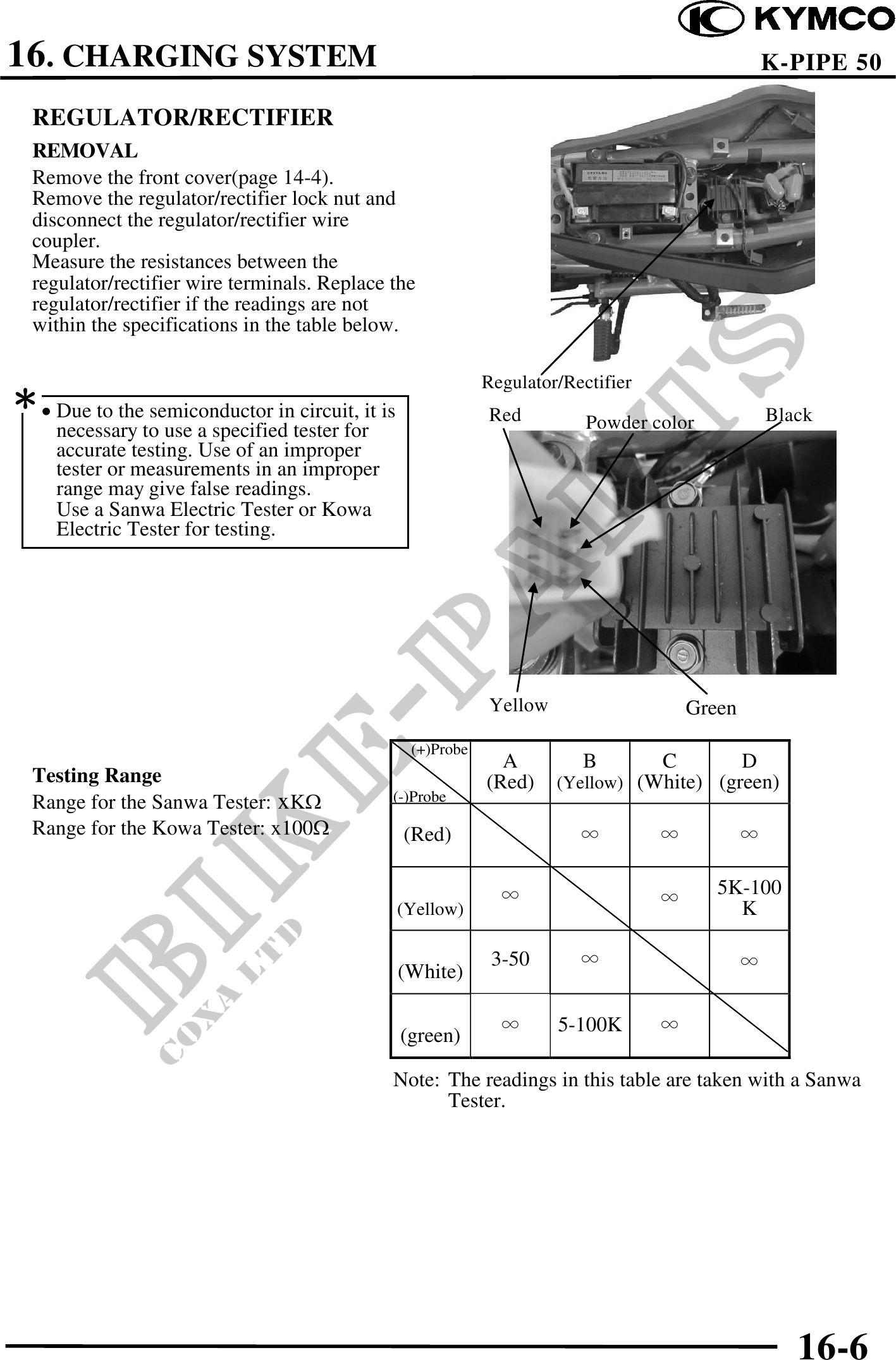

16. CHARGING SYSTEM K-PIPE 50 REGULATOR/RECTIFIER REMOVAL Remove the front cover(page 14-4). Remove the regulator/rectifier lock nut and disconnect the regulator/rectifier wire coupler. Measure the resistances between the regulator/rectifier wire terminals. Replace the regulator/rectifier if the readings are not within the specifications in the table below. Regulator/Rectifier Due to the semiconductor in circuit, it is Red Black necessary to use a specified tester for Powder color accurate testing. Use of an improper tester or measurements in an improper range may give false readings. Use a Sanwa Electric Tester or Kowa Electric Tester for testing. Yellow Green (+)Probe A B C D Testing Range (Red) (Yellow) (White) (green) Range for the Sanwa Tester: xK (-)Probe Range for the Kowa Tester: x100 (Red) 5K-100 (Yellow) K 3-50 (White) 5-100K (green) Note: The readings in this table are taken with a Sanwa Tester. 16-6
