kpw 50 Manuel atelier : Page 192

          19. EVAPORATIVE/EXHAUST EMISSION
       CONTROL SYSTEM                                                                                                        K-PIPE 50


19
 EXHAUST EMISSION CONTROL SYSTEM DIAGRAM ................................................... 18-0
 EXHAUST EMISSION CONTROL SYSTEM ....................................................................... 18-1
  SERVICE INFORMATION ..................................................................................................... 18-1
  TROUBLESHOOTING............................................................................................................ 18-1
  MAINTENANCE SCHEDULE ............................................................................................... 18-2
  SECONDARY AIR CLEANER............................................................................................... 18-3
                                                                                                                                              19
  AIR INJECTION CUT-OFF VALVE (A.I.C.V.) ..................................................................... 18-4
  REED VALVE ......................................................................................................................... 18-5
  EXHAUST MUFFLER ............................................................................................................ 18-6
  EXHAUST EMISSION RELATED SYSTEM INSPECTION ................................................ 18-7

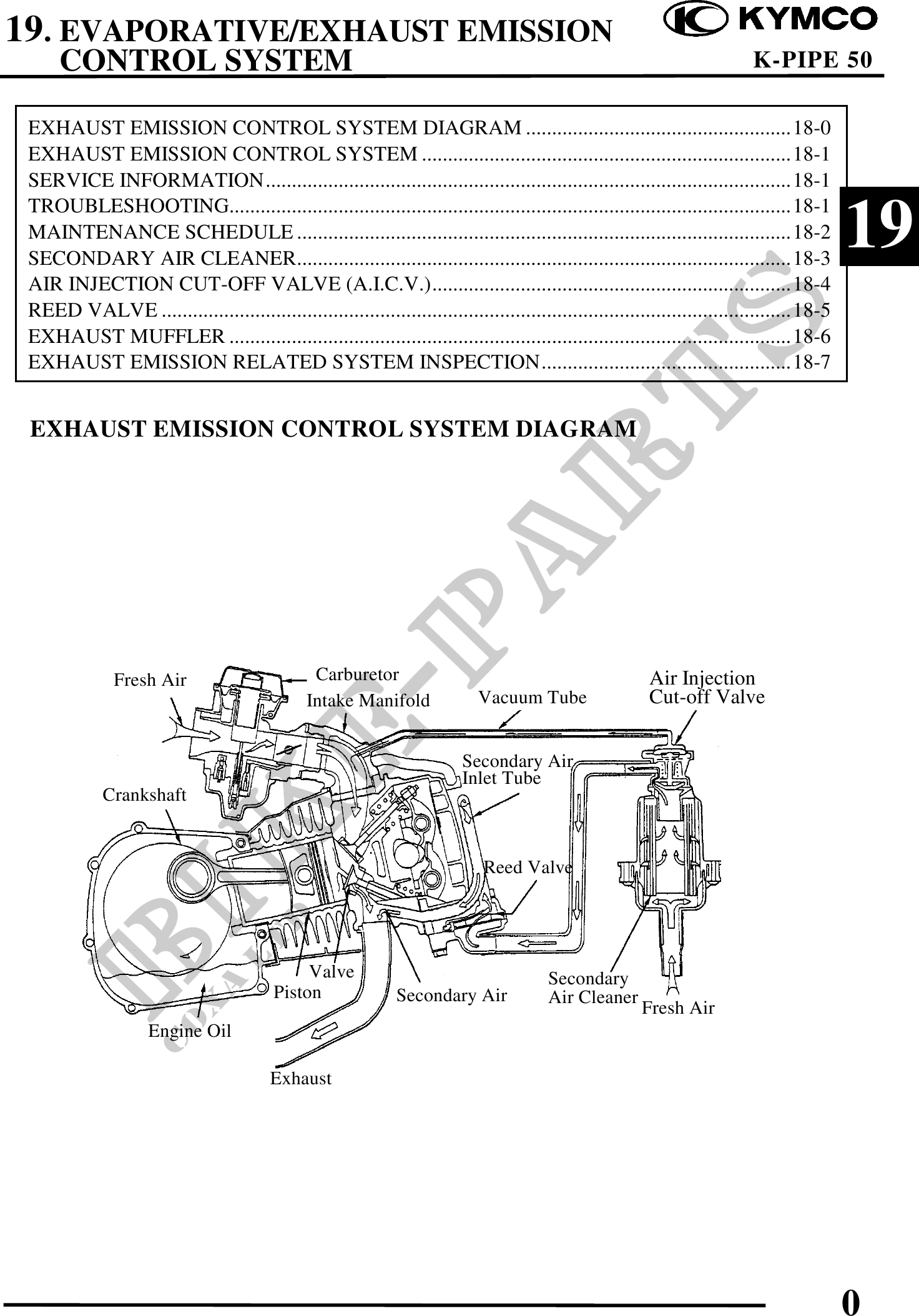

   EXHAUST EMISSION CONTROL SYSTEM DIAGRAM




                Fresh Air                         Carburetor                                                Air Injection
                                                 Intake Manifold              Vacuum Tube                   Cut-off Valve


                                                                            Secondary Air
                                                                            Inlet Tube
              Crankshaft


                                                                               Reed Valve




                                                Valve                                     Secondary
                                           Piston               Secondary Air             Air Cleaner
                                                                                                          Fresh Air
                      Engine Oil

                                           Exhaust
