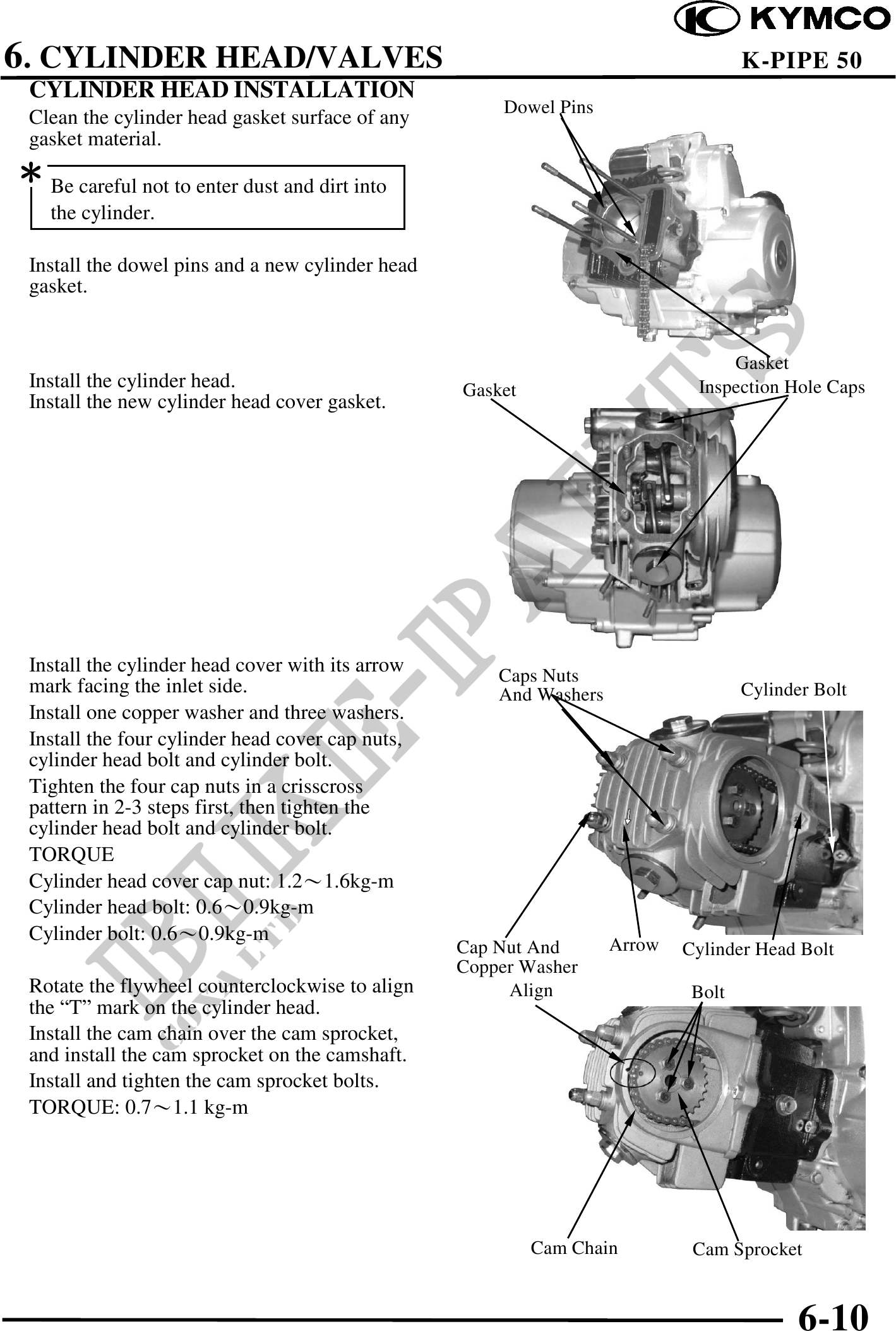

6. CYLINDER HEAD/VALVES K-PIPE 50 CYLINDER HEAD INSTALLATION Dowel Pins Clean the cylinder head gasket surface of any gasket material. Be careful not to enter dust and dirt into the cylinder. Install the dowel pins and a new cylinder head gasket. Gasket Install the cylinder head. Gasket Inspection Hole Caps Install the new cylinder head cover gasket. Install the cylinder head cover with its arrow Caps Nuts mark facing the inlet side. And Washers Cylinder Bolt Install one copper washer and three washers. Install the four cylinder head cover cap nuts, cylinder head bolt and cylinder bolt. Tighten the four cap nuts in a crisscross pattern in 2-3 steps first, then tighten the cylinder head bolt and cylinder bolt. TORQUE Cylinder head cover cap nut: 1.21.6kg-m Cylinder head bolt: 0.60.9kg-m Cylinder bolt: 0.60.9kg-m Cap Nut And Arrow Cylinder Head Bolt Copper Washer Rotate the flywheel counterclockwise to align Align Bolt the "T" mark on the cylinder head. Install the cam chain over the cam sprocket, and install the cam sprocket on the camshaft. Install and tighten the cam sprocket bolts. TORQUE: 0.71.1 kg-m Cam Chain Cam Sprocket 6-10
