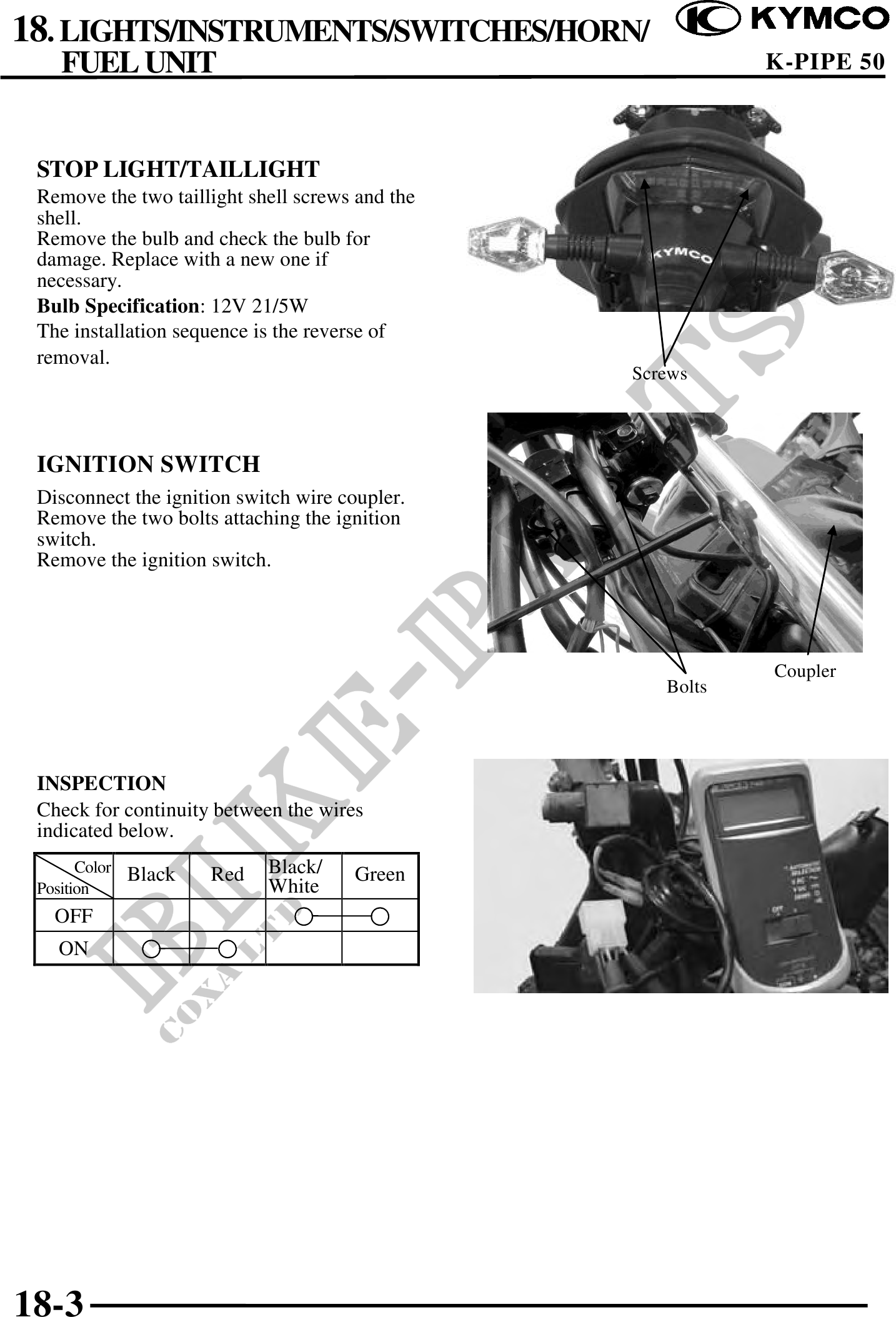

18. LIGHTS/INSTRUMENTS/SWITCHES/HORN/
FUEL UNIT K-PIPE 50
STOP LIGHT/TAILLIGHT
Remove the two taillight shell screws and the
shell.
Remove the bulb and check the bulb for
damage. Replace with a new one if
necessary.
Bulb Specification: 12V 21/5W
The installation sequence is the reverse of
removal.
Screws
IGNITION SWITCH
Disconnect the ignition switch wire coupler.
Remove the two bolts attaching the ignition
switch.
Remove the ignition switch.
Coupler
Bolts
INSPECTION
Check for continuity between the wires
indicated below.
Color Black Red Black/ Green
Position White
OFF
ON
18-3
