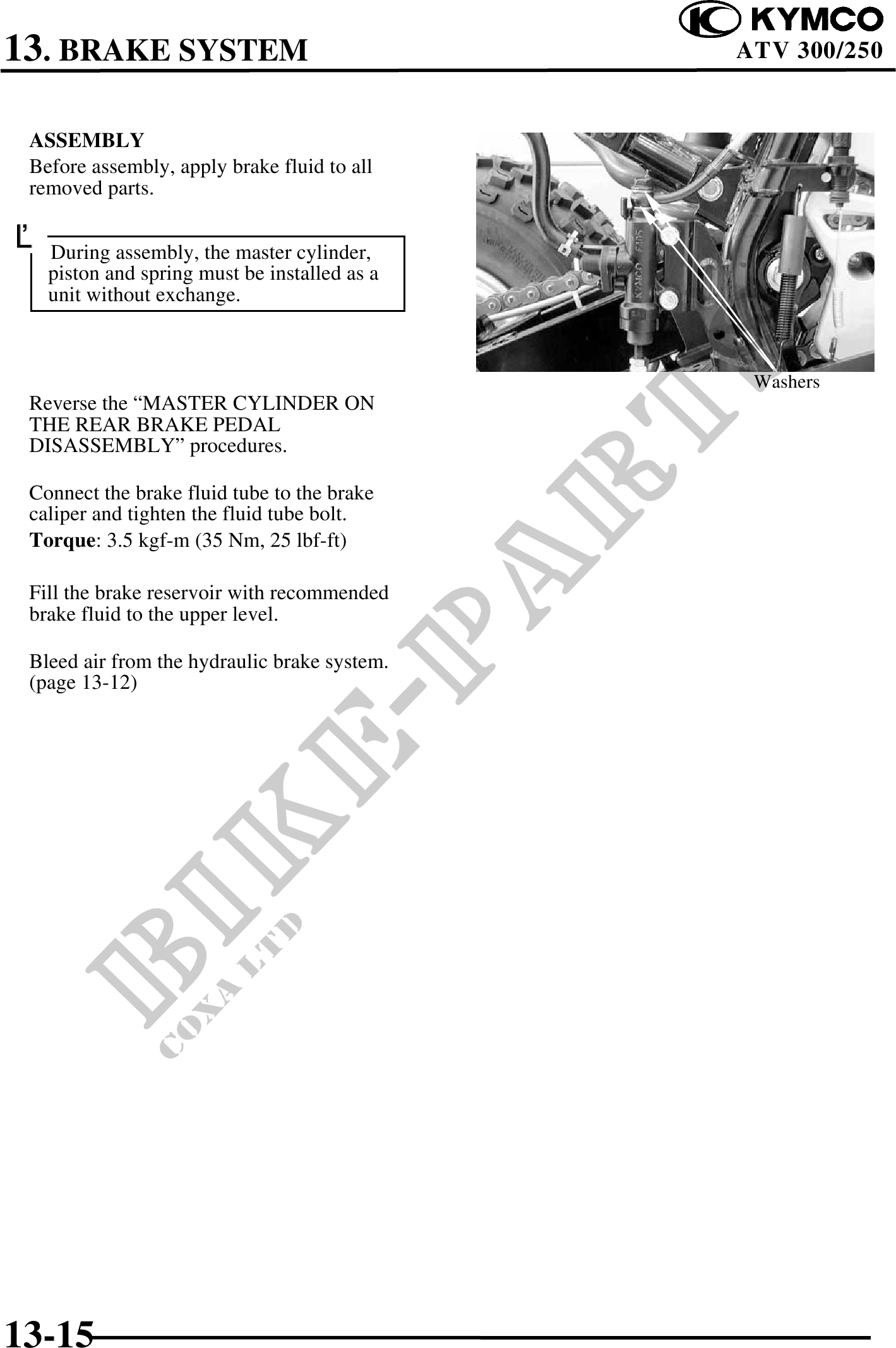

13. BRAKE SYSTEM ATV 300/250
ASSEMBLY
Before assembly, apply brake fluid to all
removed parts.
During assembly, the master cylinder,
piston and spring must be installed as a
unit without exchange.
Washers
Reverse the "MASTER CYLINDER ON
THE REAR BRAKE PEDAL
DISASSEMBLY" procedures.
Connect the brake fluid tube to the brake
caliper and tighten the fluid tube bolt.
Torque: 3.5 kgf-m (35 Nm, 25 lbf-ft)
Fill the brake reservoir with recommended
brake fluid to the upper level.
Bleed air from the hydraulic brake system.
(page 13-12)
13-15
