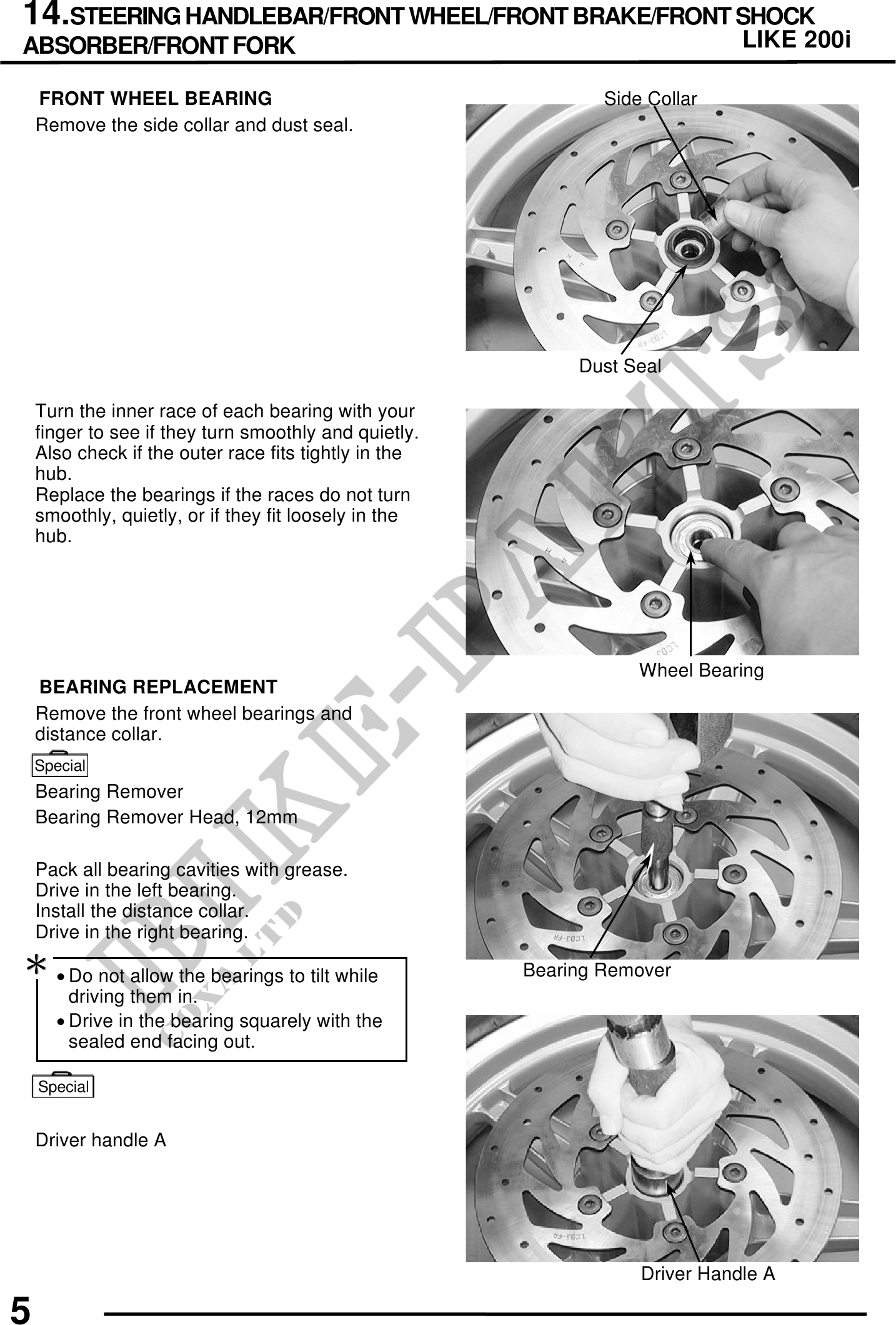

like 200 i Manuel atelier : Page 143

          14.STEERING HANDLEBAR/FRONT WHEEL/FRONT BRAKE/FRONT SHOCK
ABSORBER/FRONT FORK                                                           LIKE 200i

    FRONT WHEEL BEARING                                        Side Collar
    Remove the side collar and dust seal.




                                                            Dust Seal

    Turn the inner race of each bearing with your
    finger to see if they turn smoothly and quietly.
    Also check if the outer race fits tightly in the
    hub.
    Replace the bearings if the races do not turn
    smoothly, quietly, or if they fit loosely in the
    hub.




                                                                   Wheel Bearing
    BEARING REPLACEMENT
    Remove the front wheel bearings and
    distance collar.
    Special
    Bearing Remover
    Bearing Remover Head, 12mm

    Pack all bearing cavities with grease.
    Drive in the left bearing.
    Install the distance collar.
    Drive in the right bearing.
 · Do not allow the bearings to tilt while             Bearing Remover
        driving them in.
      · Drive in the bearing squarely with the
        sealed end facing out.

    Special


    Driver handle A




                                                                   Driver Handle A

5
