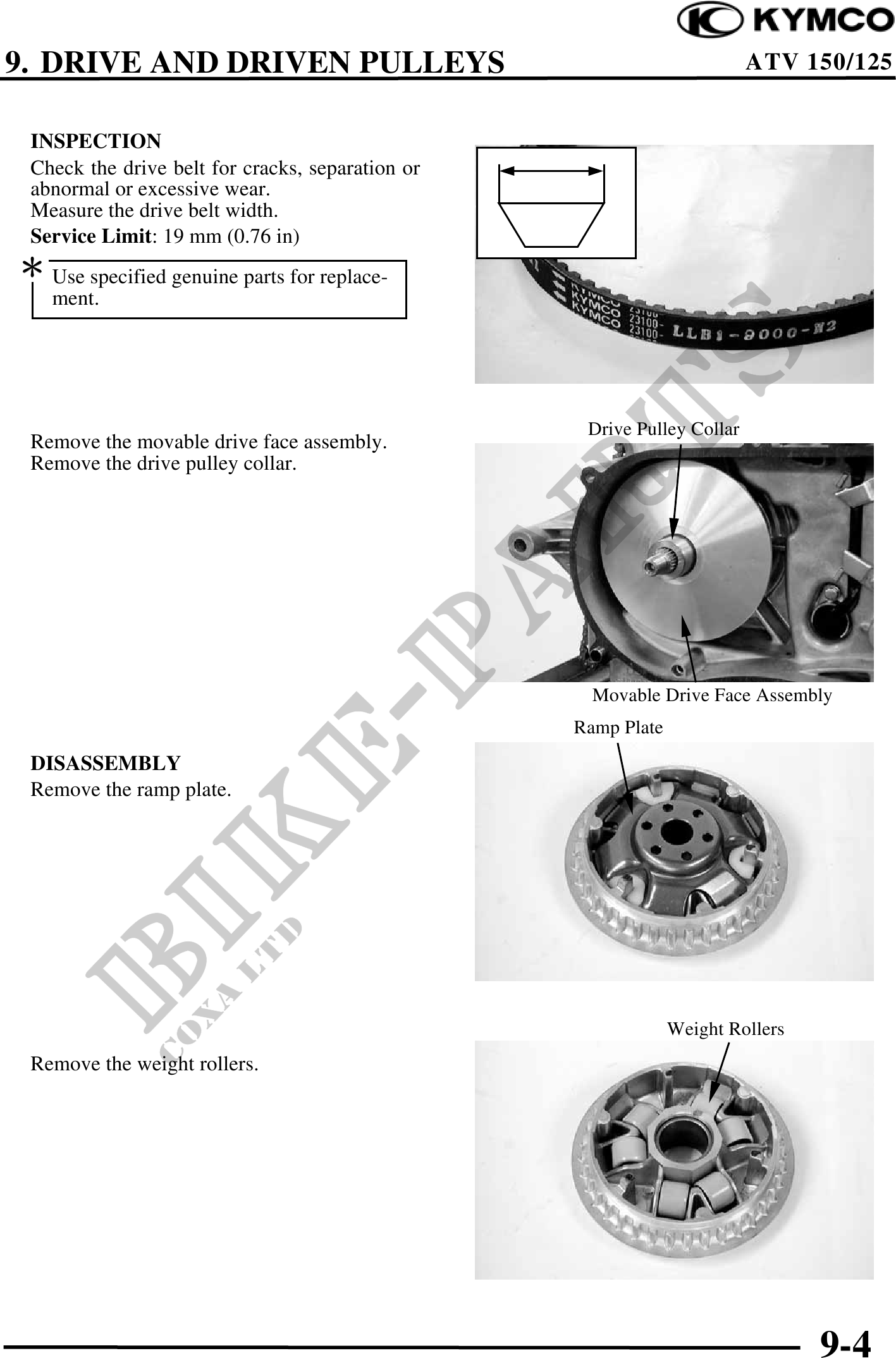

9. DRIVE AND DRIVEN PULLEYS ATV 150/125
INSPECTION
Check the drive belt for cracks, separation or
abnormal or excessive wear.
Measure the drive belt width.
Service Limit: 19 mm (0.76 in)
Use specified genuine parts for replace-
ment.
Drive Pulley Collar
Remove the movable drive face assembly.
Remove the drive pulley collar.
Movable Drive Face Assembly
Ramp Plate
DISASSEMBLY
Remove the ramp plate.
Weight Rollers
Remove the weight rollers.
