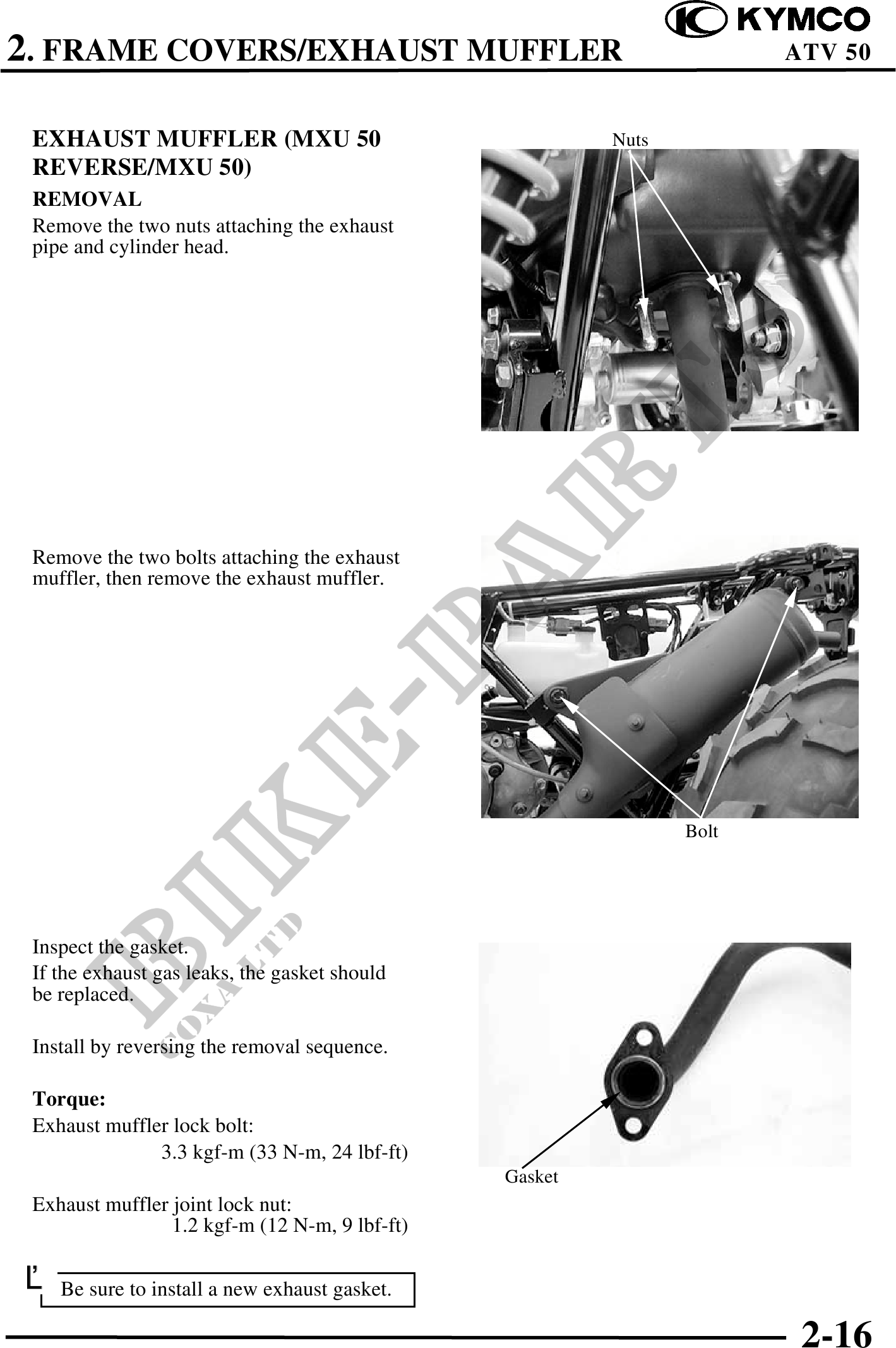

2. FRAME COVERS/EXHAUST MUFFLER ATV 50
EXHAUST MUFFLER (MXU 50 Nuts
REVERSE/MXU 50)
REMOVAL
Remove the two nuts attaching the exhaust
pipe and cylinder head.
Remove the two bolts attaching the exhaust
muffler, then remove the exhaust muffler.
Bolt
Bolt
Inspect the gasket.
If the exhaust gas leaks, the gasket should
be replaced.
Install by reversing the removal sequence.
Torque:
Exhaust muffler lock bolt:
3.3 kgf-m (33 N-m, 24 lbf-ft)
Gasket
Exhaust muffler joint lock nut:
1.2 kgf-m (12 N-m, 9 lbf-ft)
Be sure to install a new exhaust gasket.
2-16
