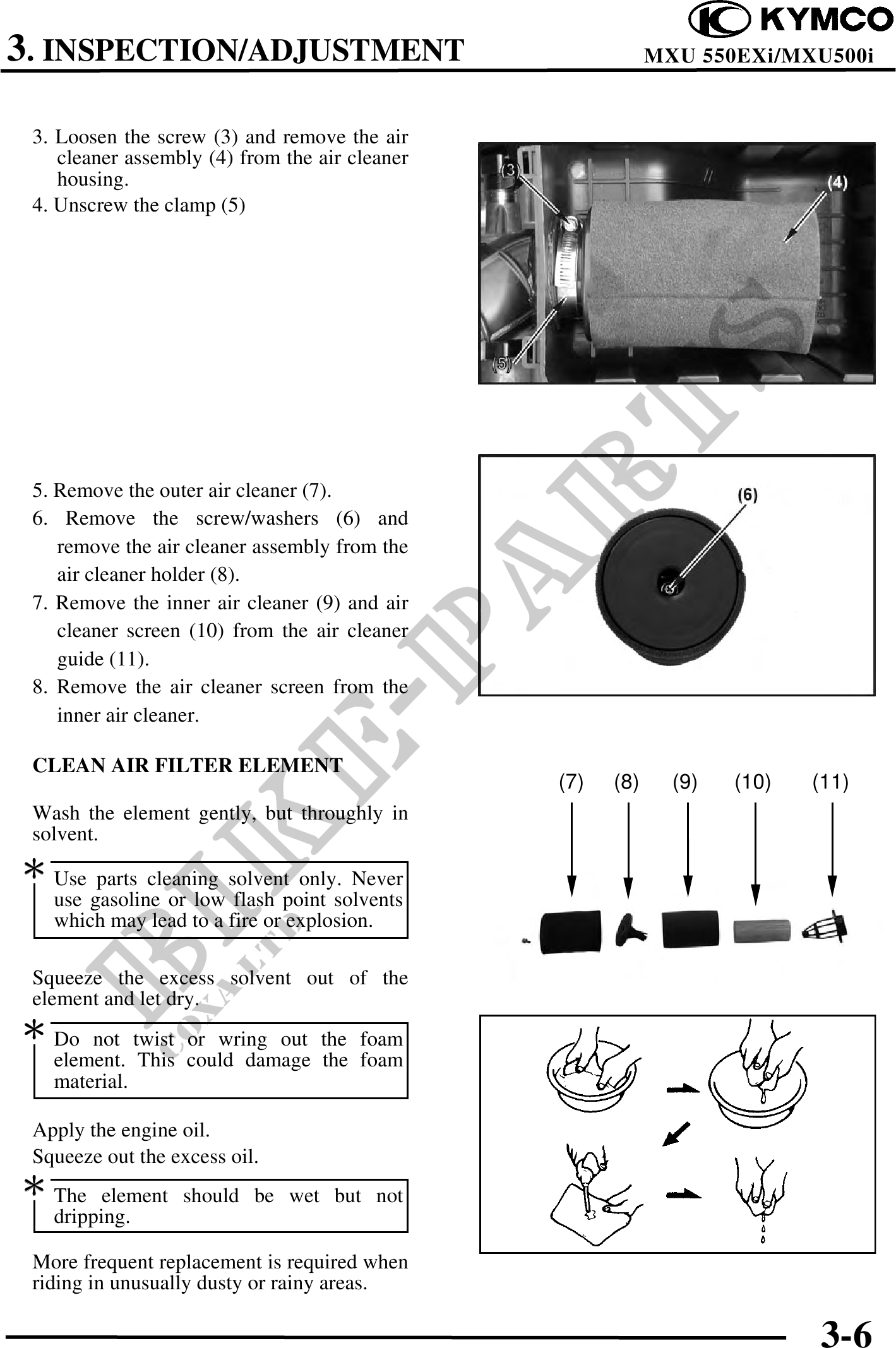

3. INSPECTION/ADJUSTMENT MXU 550EXi/MXU500i 3. Loosen the screw (3) and remove the air cleaner assembly (4) from the air cleaner housing. 4. Unscrew the clamp (5) 5. Remove the outer air cleaner (7). 6. Remove the screw/washers (6) and remove the air cleaner assembly from the air cleaner holder (8). 7. Remove the inner air cleaner (9) and air cleaner screen (10) from the air cleaner guide (11). 8. Remove the air cleaner screen from the inner air cleaner. CLEAN AIR FILTER ELEMENT (7) (8) (9) (10) (11) Wash the element gently, but throughly in solvent. Use parts cleaning solvent only. Never use gasoline or low flash point solvents which may lead to a fire or explosion. Squeeze the excess solvent out of the element and let dry. Do not twist or wring out the foam element. This could damage the foam material. Apply the engine oil. Squeeze out the excess oil. The element should be wet but not dripping. More frequent replacement is required when riding in unusually dusty or rainy areas. 3-6
