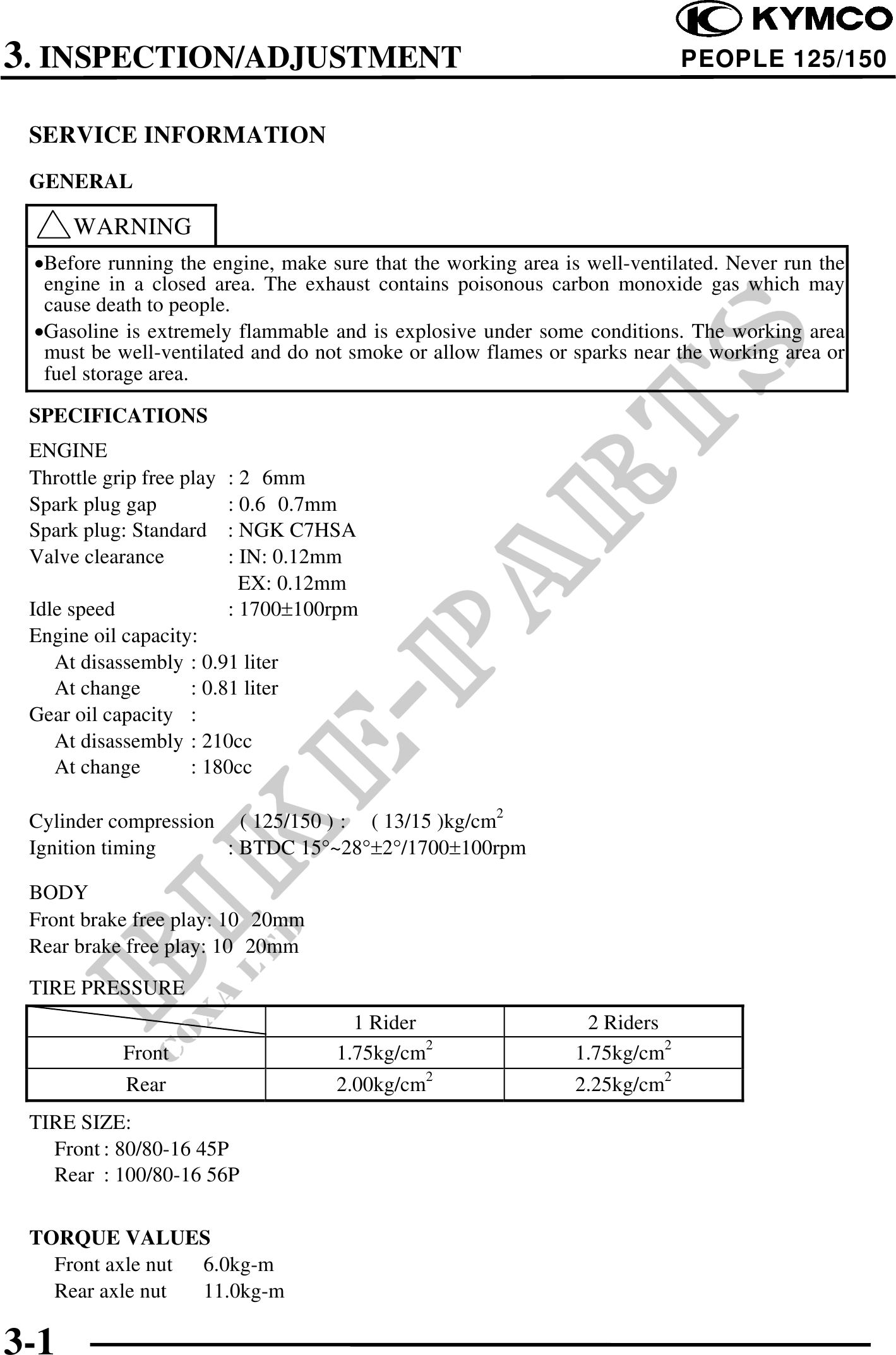

3. INSPECTION/ADJUSTMENT PEOPLE 125/150 SERVICE INFORMATION GENERAL WARNING ·Before running the engine, make sure that the working area is well-ventilated. Never run the engine in a closed area. The exhaust contains poisonous carbon monoxide gas which may cause death to people. ·Gasoline is extremely flammable and is explosive under some conditions. The working area must be well-ventilated and do not smoke or allow flames or sparks near the working area or fuel storage area. SPECIFICATIONS ENGINE Throttle grip free play : 2 6mm Spark plug gap : 0.6 0.7mm Spark plug: Standard : NGK C7HSA Valve clearance : IN: 0.12mm EX: 0.12mm Idle speed : 1700100rpm Engine oil capacity: At disassembly : 0.91 liter At change : 0.81 liter Gear oil capacity : At disassembly : 210cc At change : 180cc 2 Cylinder compression ( 125/150 ) : ( 13/15 )kg/cm Ignition timing : BTDC 15°~28°2°/1700100rpm BODY Front brake free play: 10 20mm Rear brake free play: 10 20mm TIRE PRESSURE 1 Rider 2 Riders 2 Front 1.75kg/cm 1.75kg/cm2 2 Rear 2.00kg/cm 2.25kg/cm2 TIRE SIZE: Front : 80/80-16 45P Rear : 100/80-16 56P TORQUE VALUES Front axle nut 6.0kg-m Rear axle nut 11.0kg-m 3-1
