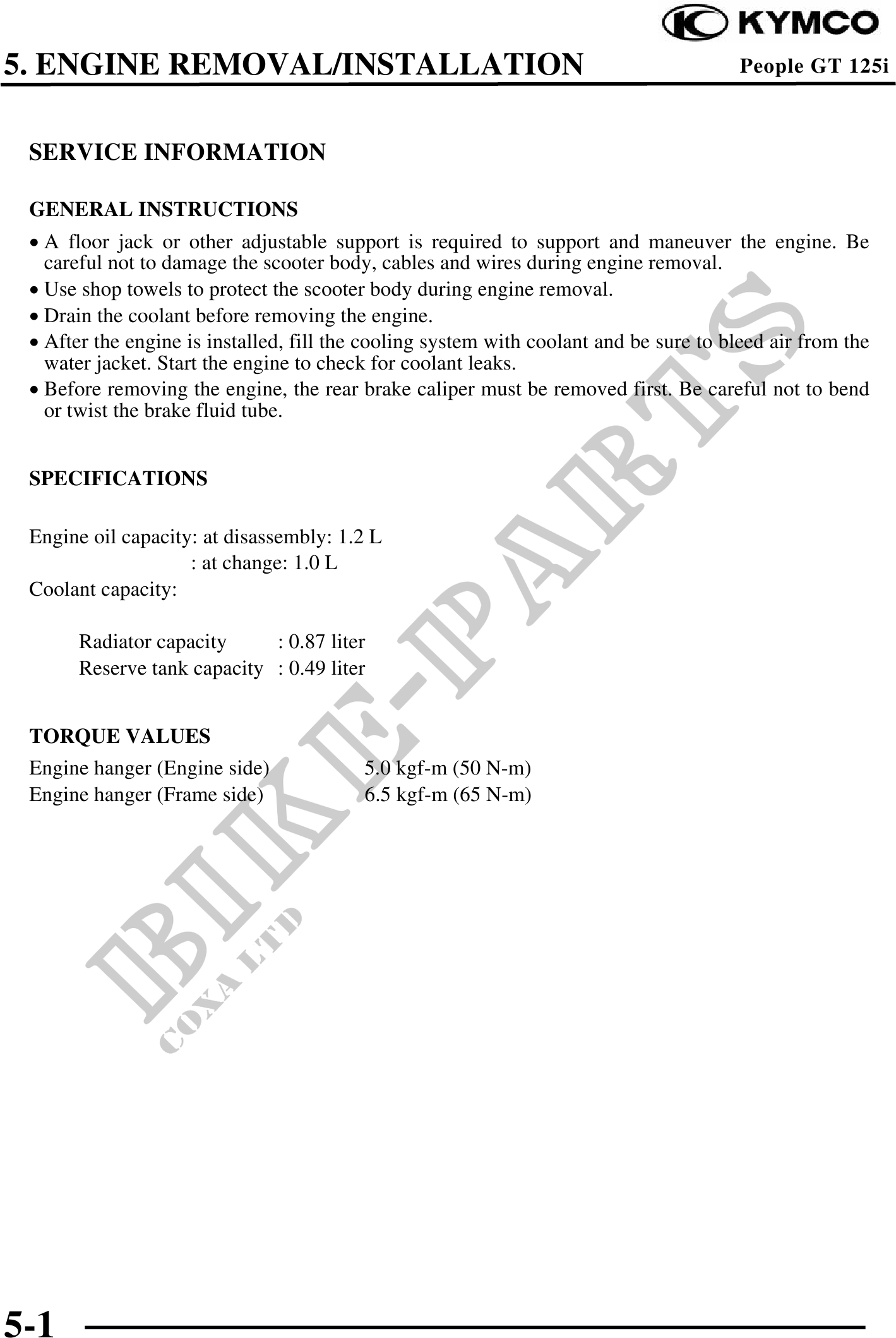

5. ENGINE REMOVAL/INSTALLATION People GT 125i
SERVICE INFORMATION
GENERAL INSTRUCTIONS
· A floor jack or other adjustable support is required to support and maneuver the engine. Be
careful not to damage the scooter body, cables and wires during engine removal.
· Use shop towels to protect the scooter body during engine removal.
· Drain the coolant before removing the engine.
· After the engine is installed, fill the cooling system with coolant and be sure to bleed air from the
water jacket. Start the engine to check for coolant leaks.
· Before removing the engine, the rear brake caliper must be removed first. Be careful not to bend
or twist the brake fluid tube.
SPECIFICATIONS
Engine oil capacity: at disassembly: 1.2 L
: at change: 1.0 L
Coolant capacity:
Radiator capacity : 0.87 liter
Reserve tank capacity : 0.49 liter
TORQUE VALUES
Engine hanger (Engine side) 5.0 kgf-m (50 N-m)
Engine hanger (Frame side) 6.5 kgf-m (65 N-m)
5-1
