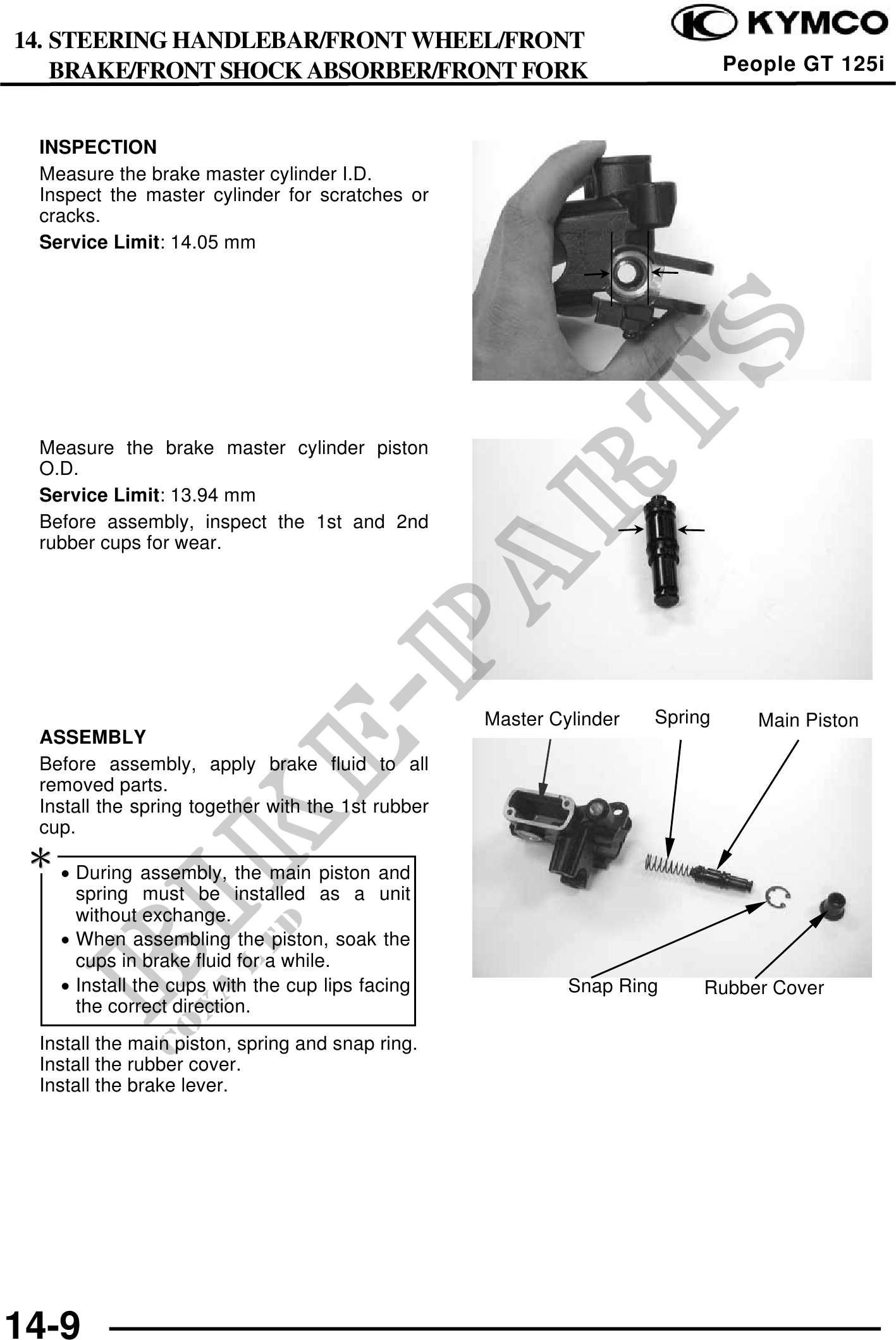

14. STEERING HANDLEBAR/FRONT WHEEL/FRONT
BRAKE/FRONT SHOCK ABSORBER/FRONT FORK People GT 125i
INSPECTION
Measure the brake master cylinder I.D.
Inspect the master cylinder for scratches or
cracks.
Service Limit: 14.05 mm
Measure the brake master cylinder piston
O.D.
Service Limit: 13.94 mm
Before assembly, inspect the 1st and 2nd
rubber cups for wear.
Master Cylinder Spring Main Piston
ASSEMBLY
Before assembly, apply brake fluid to all
removed parts.
Install the spring together with the 1st rubber
cup.
· During assembly, the main piston and
spring must be installed as a unit
without exchange.
· When assembling the piston, soak the
cups in brake fluid for a while.
· Install the cups with the cup lips facing Snap Ring Rubber Cover
the correct direction.
Install the main piston, spring and snap ring.
Install the rubber cover.
Install the brake lever.
14-9
