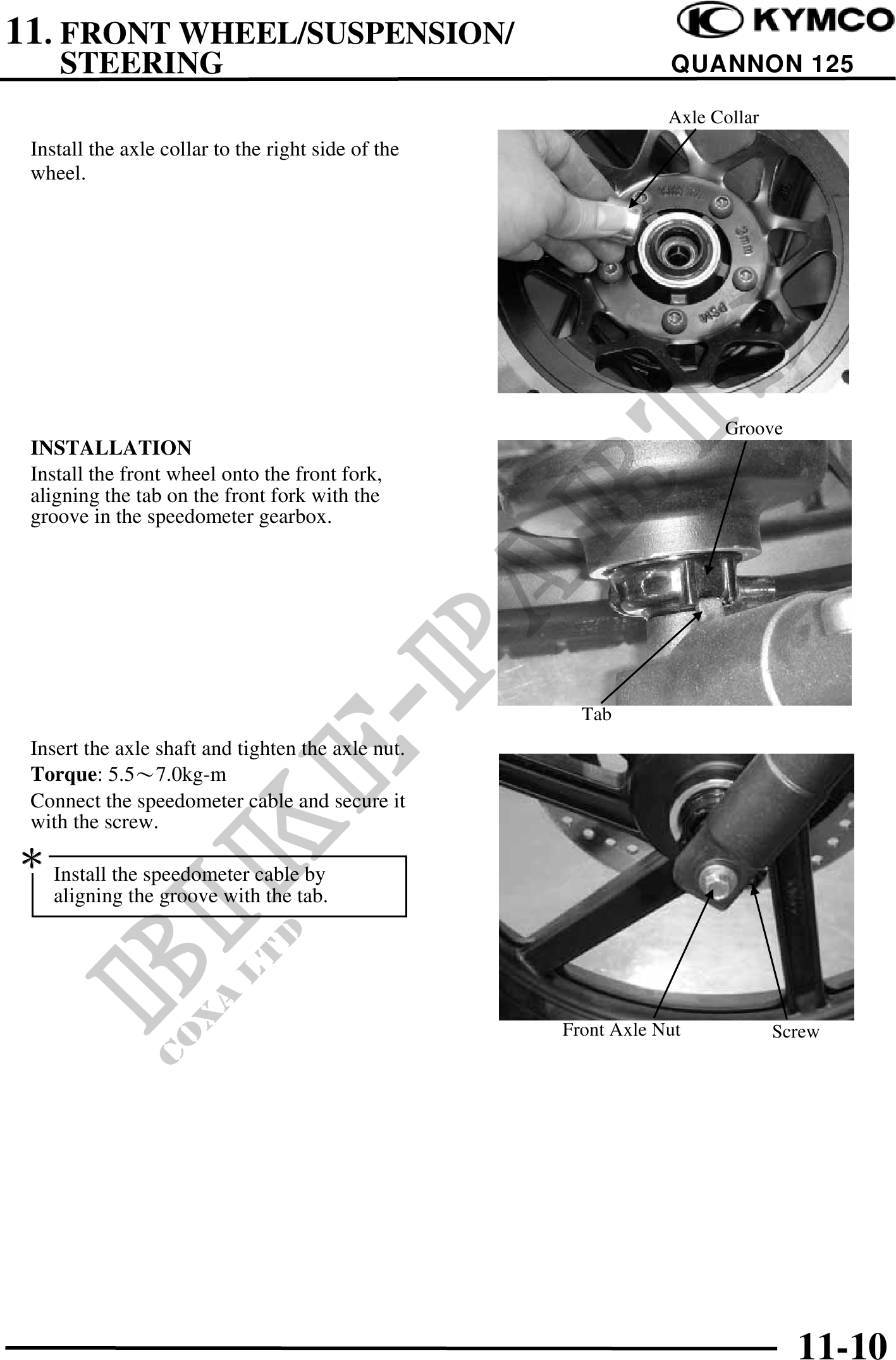

11. FRONT WHEEL/SUSPENSION/
STEERING QUANNON 125
Axle Collar
Install the axle collar to the right side of the
wheel.
Groove
INSTALLATION
Install the front wheel onto the front fork,
aligning the tab on the front fork with the
groove in the speedometer gearbox.
Tab
Insert the axle shaft and tighten the axle nut.
Torque: 5.57.0kg-m
Connect the speedometer cable and secure it
with the screw.
Install the speedometer cable by
aligning the groove with the tab.
Front Axle Nut Screw
11-10
