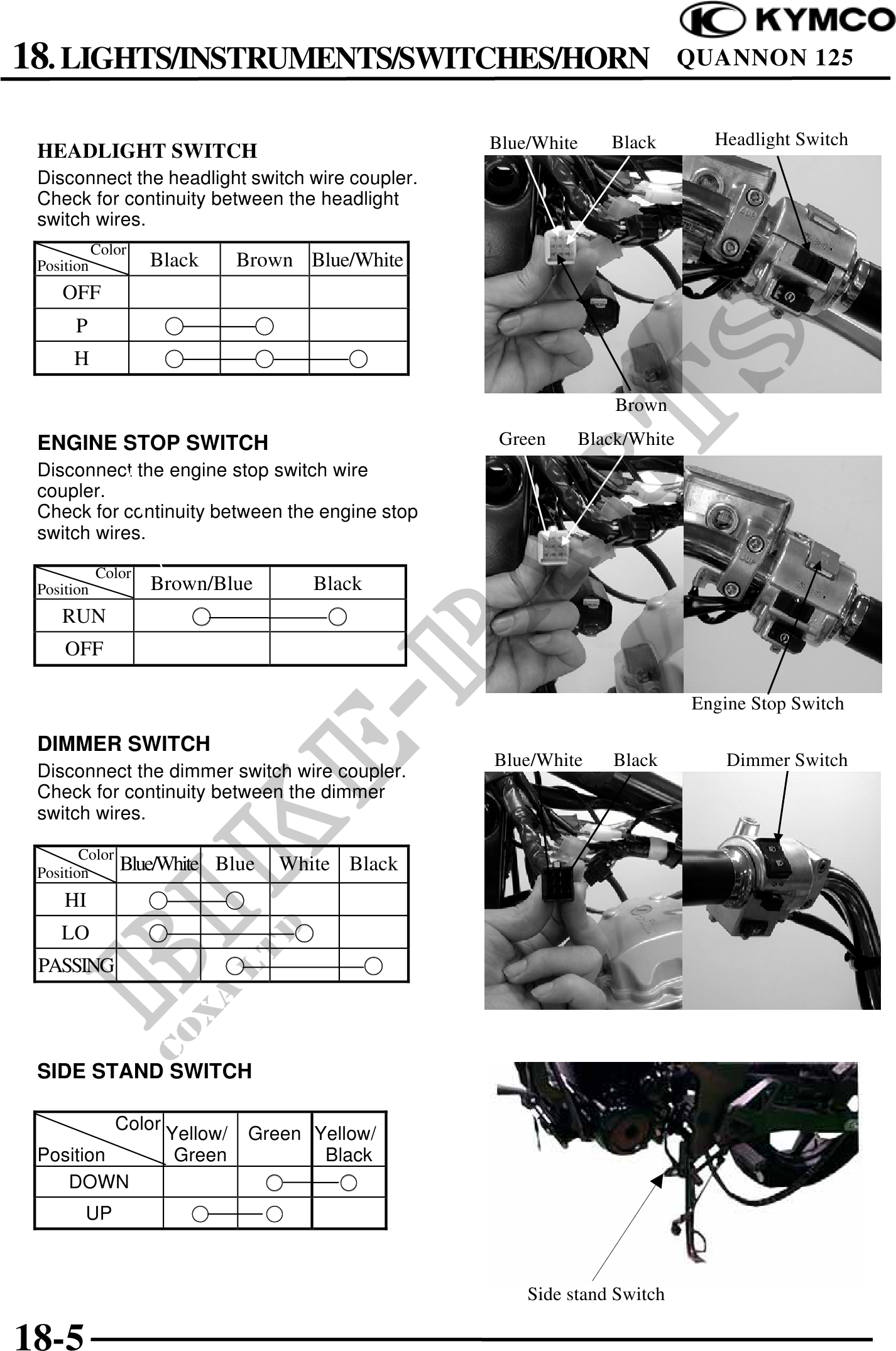

18. LIGHTS/INSTRUMENTS/SWITCHES/HORN QUANNON 125
Blue/White Black Headlight Switch
HEADLIGHT SWITCH
Disconnect the headlight switch wire coupler.
Check for continuity between the headlight
switch wires.
Color
Position Black Brown Blue/White
OFF
P
H
Brown
ENGINE STOP SWITCH Green Black/White
Disconnect the engine stop switch wire
coupler.
Check for continuity between the engine stop
switch wires.
Color
Position Brown/Blue Black
RUN
OFF
Engine Stop Switch
DIMMER SWITCH
Blue/White Black Dimmer Switch
Disconnect the dimmer switch wire coupler.
Check for continuity between the dimmer
switch wires.
Color
Position Blue/White Blue White Black
HI
LO
PASSING
SIDE STAND SWITCH
Color
Yellow/ Green Yellow/
Position Green Black
DOWN
UP
Side stand Switch
18-5
