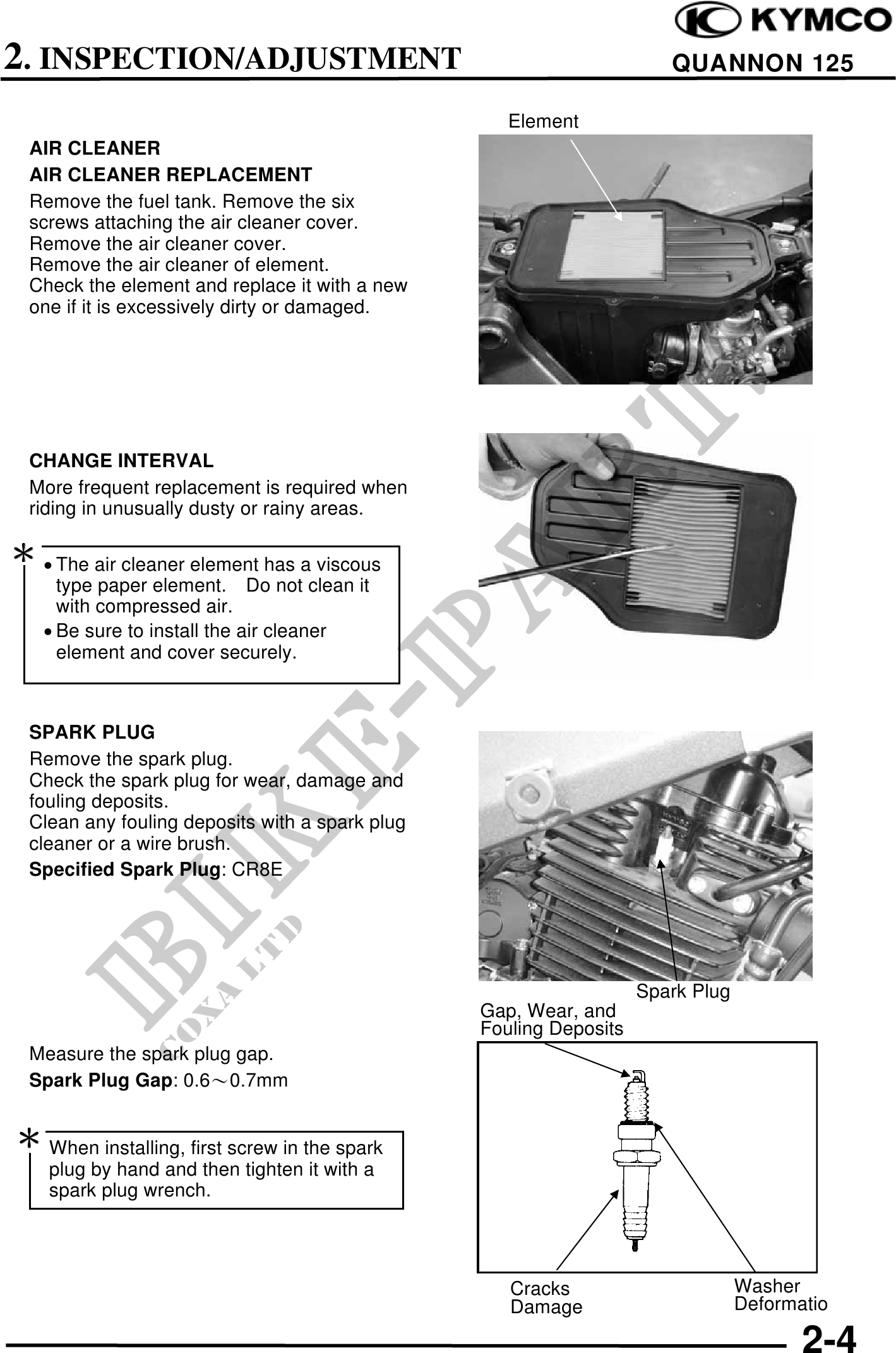

2. INSPECTION/ADJUSTMENT QUANNON 125
Element
AIR CLEANER
AIR CLEANER REPLACEMENT
Remove the fuel tank. Remove the six
screws attaching the air cleaner cover.
Remove the air cleaner cover.
Remove the air cleaner of element.
Check the element and replace it with a new
one if it is excessively dirty or damaged.
CHANGE INTERVAL
More frequent replacement is required when
riding in unusually dusty or rainy areas.
· The air cleaner element has a viscous
type paper element. Do not clean it
with compressed air.
· Be sure to install the air cleaner
element and cover securely.
SPARK PLUG
Remove the spark plug.
Check the spark plug for wear, damage and
fouling deposits.
Clean any fouling deposits with a spark plug
cleaner or a wire brush.
Specified Spark Plug: CR8E
Spark Plug
Gap, Wear, and
Fouling Deposits
Measure the spark plug gap.
Spark Plug Gap: 0.60.7mm
When installing, first screw in the spark
plug by hand and then tighten it with a
spark plug wrench.
Cracks Washer
Damage Deformatio
2-4
