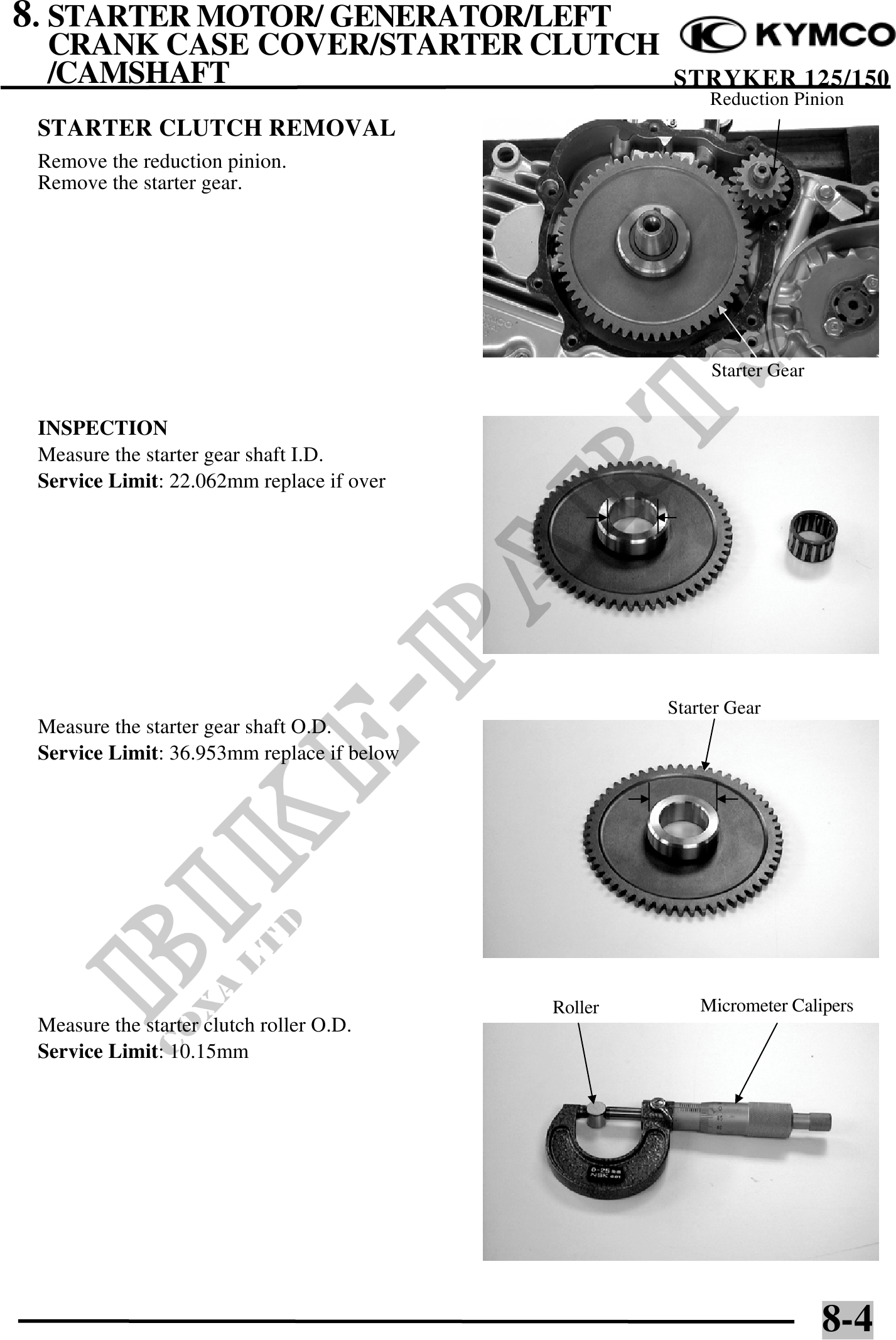

8. STARTER MOTOR/ GENERATOR/LEFT
CRANK CASE COVER/STARTER CLUTCH
/CAMSHAFT STRYKER 125/150
Reduction Pinion
STARTER CLUTCH REMOVAL
Remove the reduction pinion.
Remove the starter gear.
Starter Gear
INSPECTION
Measure the starter gear shaft I.D.
Service Limit: 22.062mm replace if over
Starter Gear
Measure the starter gear shaft O.D.
Service Limit: 36.953mm replace if below
Roller Micrometer Calipers
Measure the starter clutch roller O.D.
Service Limit: 10.15mm
8-4
