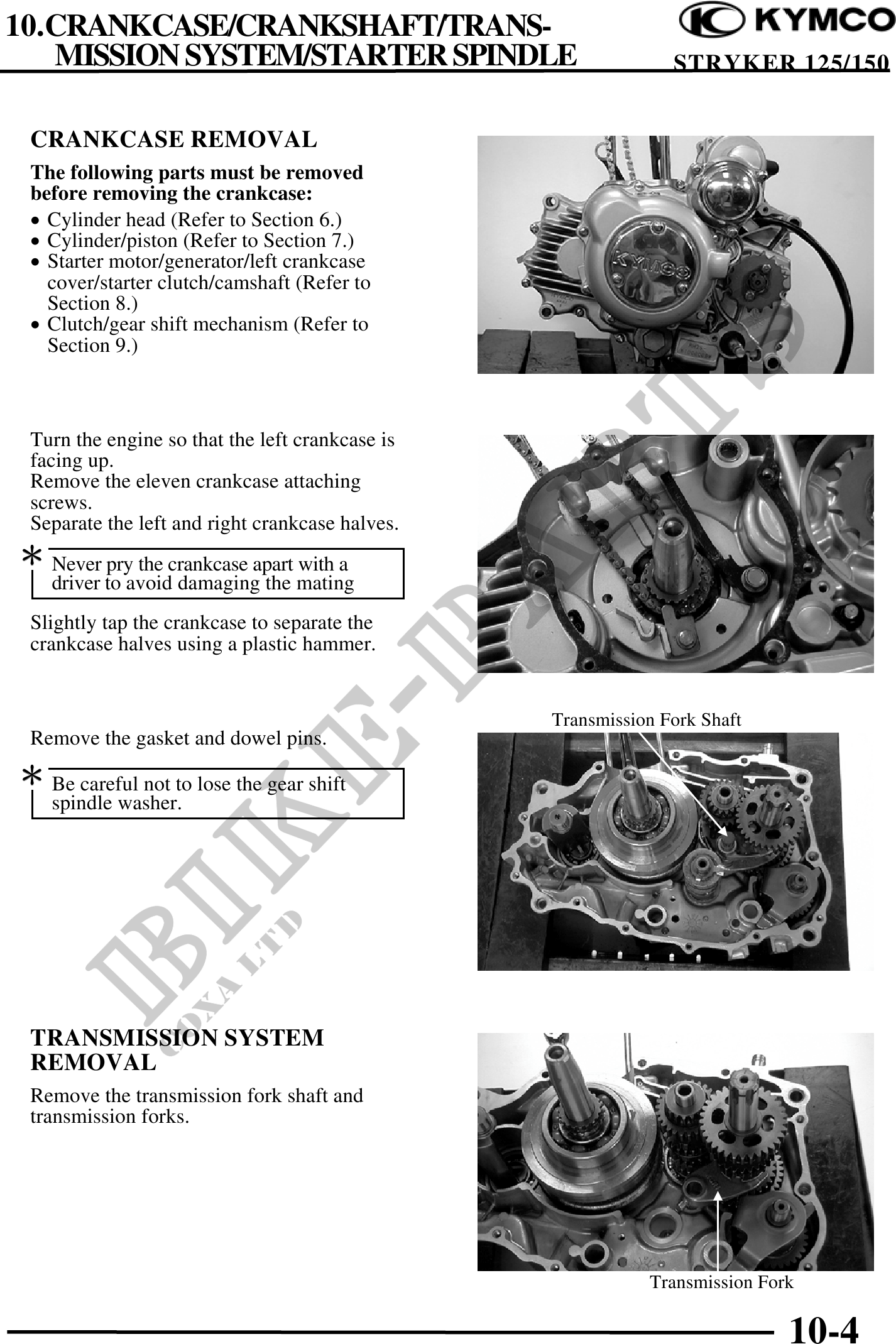

10.CRANKCASE/CRANKSHAFT/TRANS- MISSION SYSTEM/STARTER SPINDLE STRYKER 125/150 CRANKCASE REMOVAL The following parts must be removed before removing the crankcase: · Cylinder head (Refer to Section 6.) · Cylinder/piston (Refer to Section 7.) · Starter motor/generator/left crankcase cover/starter clutch/camshaft (Refer to Section 8.) · Clutch/gear shift mechanism (Refer to Section 9.) Turn the engine so that the left crankcase is facing up. Remove the eleven crankcase attaching screws. Separate the left and right crankcase halves. Never pry the crankcase apart with a driver to avoid damaging the mating Slightly tap the crankcase to separate the crankcase halves using a plastic hammer. Transmission Fork Shaft Remove the gasket and dowel pins. Be careful not to lose the gear shift spindle washer. TRANSMISSION SYSTEM REMOVAL Remove the transmission fork shaft and transmission forks. Transmission Fork 10-4
