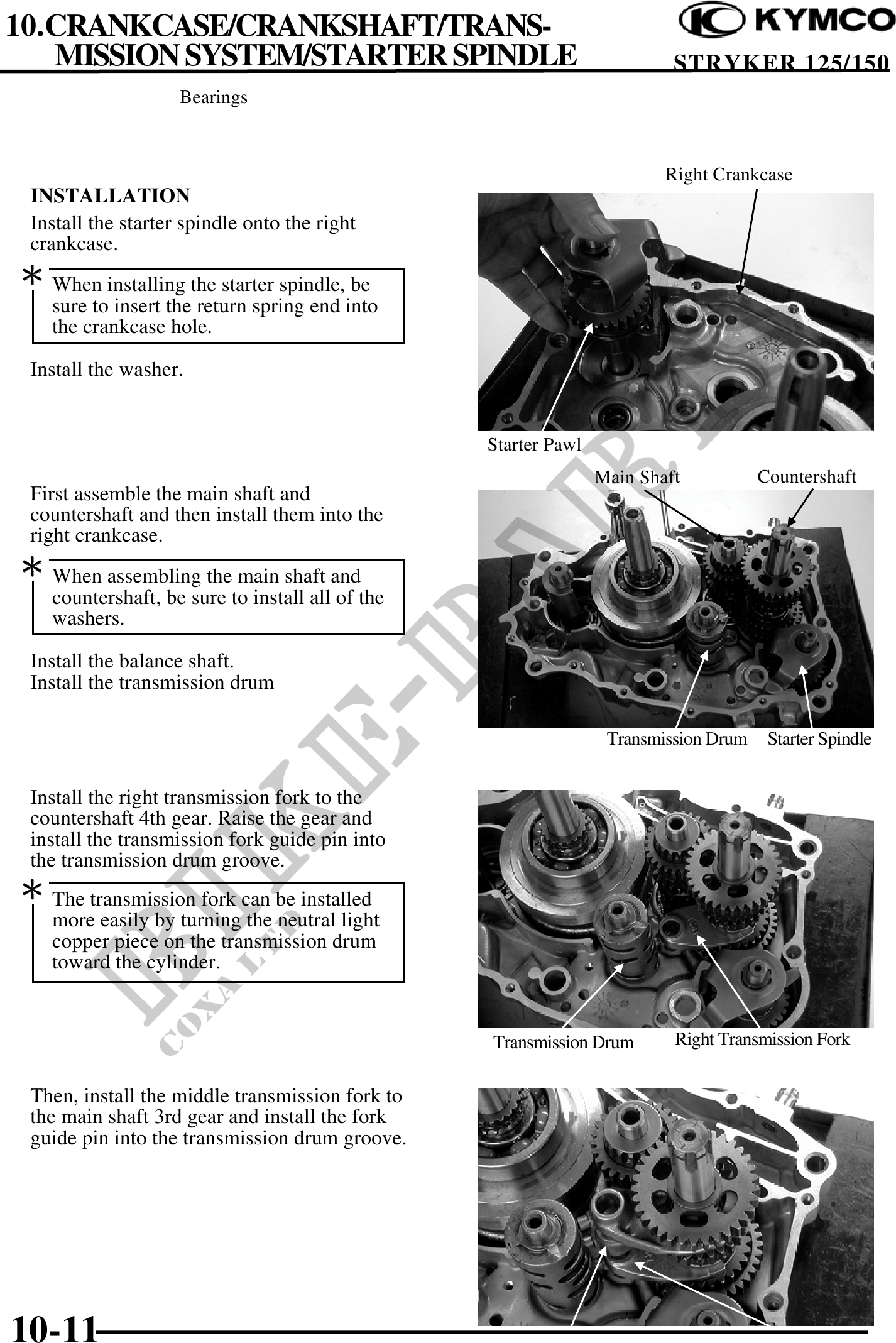

10.CRANKCASE/CRANKSHAFT/TRANS-
MISSION SYSTEM/STARTER SPINDLE STRYKER 125/150
Bearings
Right Crankcase
INSTALLATION
Install the starter spindle onto the right
crankcase.
When installing the starter spindle, be
sure to insert the return spring end into
the crankcase hole.
Install the washer.
Starter Pawl
Main Shaft Countershaft
First assemble the main shaft and
countershaft and then install them into the
right crankcase.
When assembling the main shaft and
countershaft, be sure to install all of the
washers.
Install the balance shaft.
Install the transmission drum
Transmission Drum Starter Spindle
Install the right transmission fork to the
countershaft 4th gear. Raise the gear and
install the transmission fork guide pin into
the transmission drum groove.
The transmission fork can be installed
more easily by turning the neutral light
copper piece on the transmission drum
toward the cylinder.
Transmission Drum Right Transmission Fork
Then, install the middle transmission fork to
the main shaft 3rd gear and install the fork
guide pin into the transmission drum groove.
10-11
