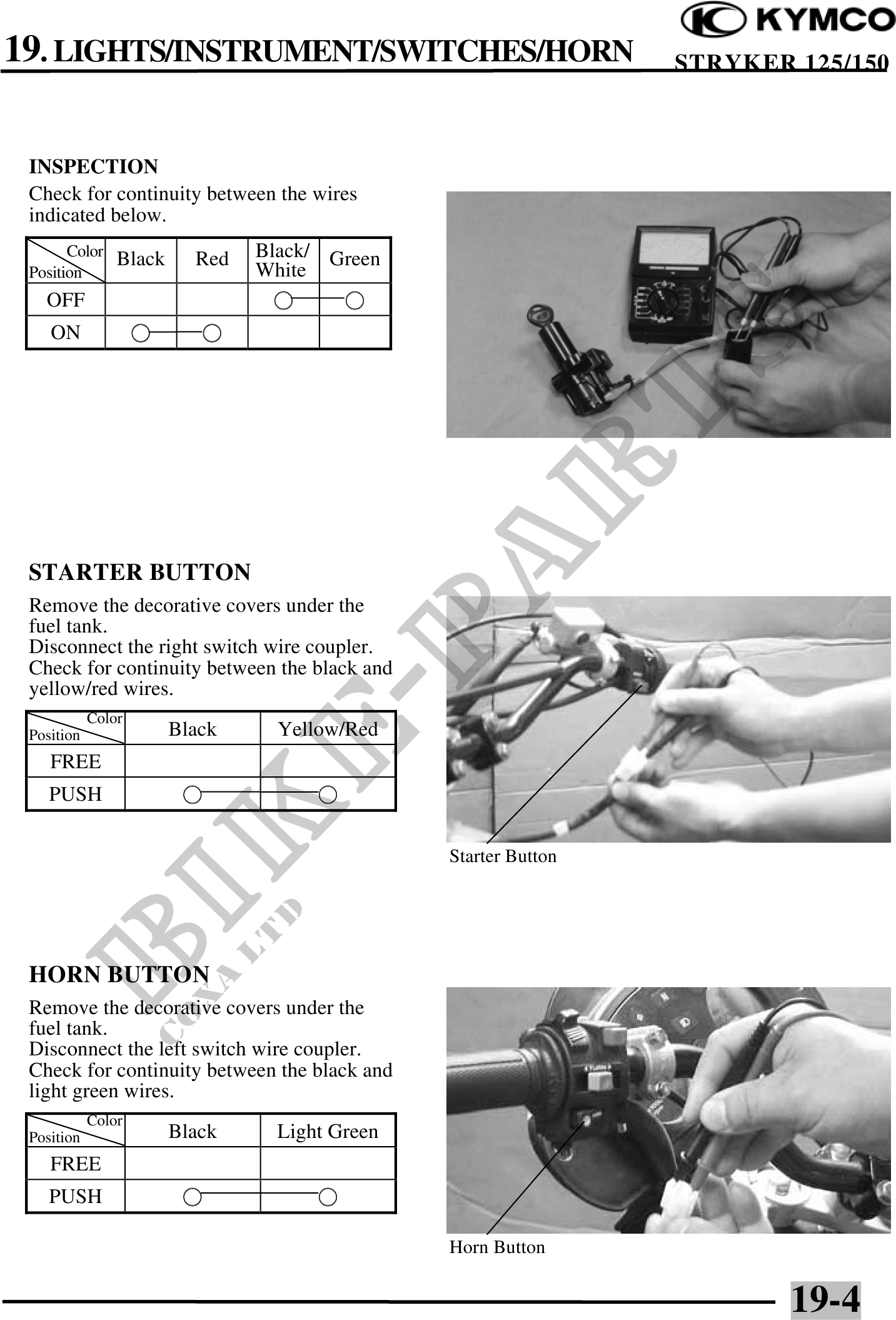

19. LIGHTS/INSTRUMENT/SWITCHES/HORN STRYKER 125/150
INSPECTION
Check for continuity between the wires
indicated below.
Color Black Red Black/ Green
Position White
OFF
ON
STARTER BUTTON
Remove the decorative covers under the
fuel tank.
Disconnect the right switch wire coupler.
Check for continuity between the black and
yellow/red wires.
Color
Position Black Yellow/Red
FREE
PUSH
Starter Button
HORN BUTTON
Remove the decorative covers under the
fuel tank.
Disconnect the left switch wire coupler.
Check for continuity between the black and
light green wires.
Color
Position Black Light Green
FREE
PUSH
Horn Button
19-4
