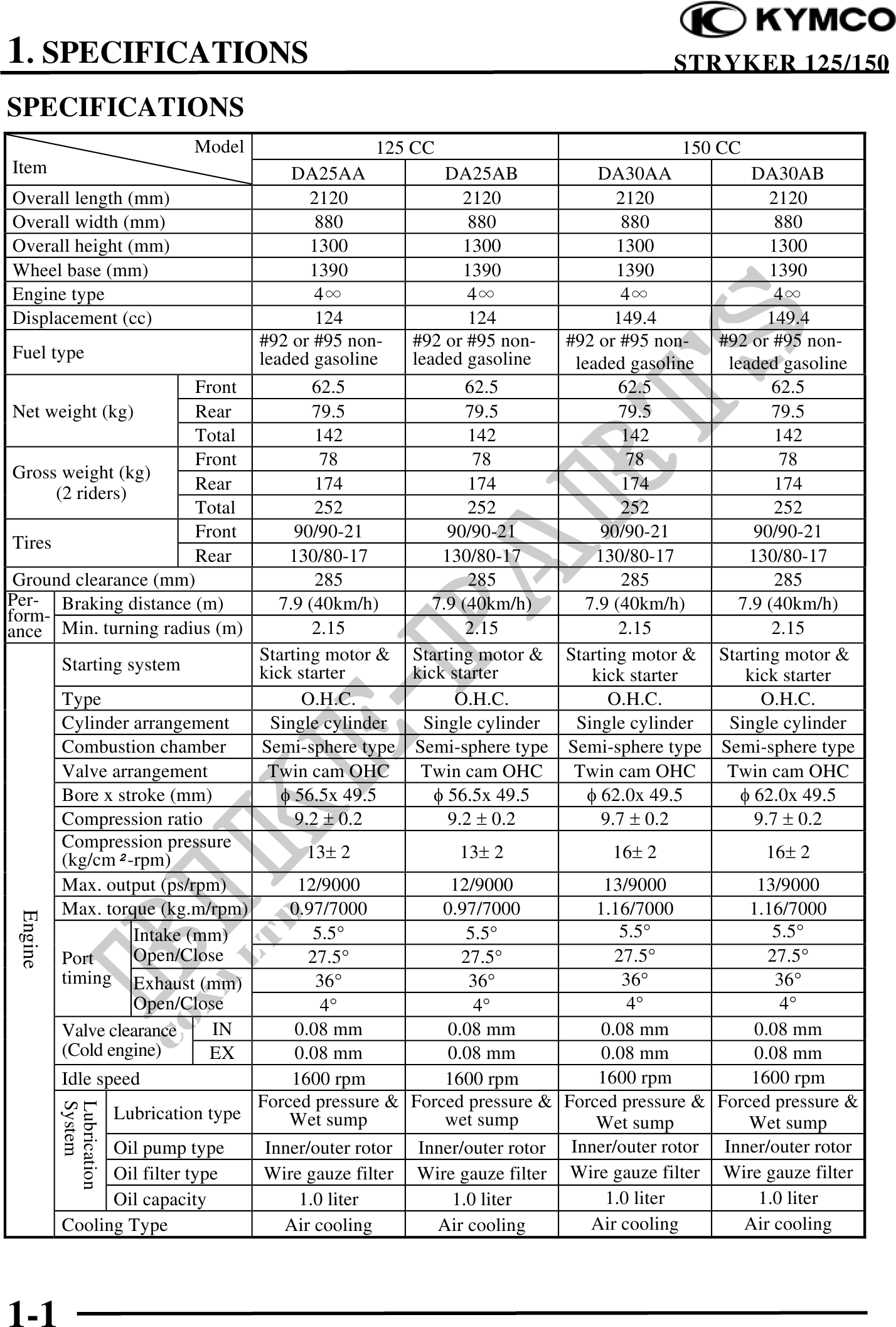

1. SPECIFICATIONS STRYKER 125/150 SPECIFICATIONS Model 125 CC 150 CC Item DA25AA DA25AB DA30AA DA30AB Overall length (mm) 2120 2120 2120 2120 Overall width (mm) 880 880 880 880 Overall height (mm) 1300 1300 1300 1300 Wheel base (mm) 1390 1390 1390 1390 Engine type 4 4 4 4 Displacement (cc) 124 124 149.4 149.4 #92 or #95 non- #92 or #95 non- #92 or #95 non- #92 or #95 non- Fuel type leaded gasoline leaded gasoline leaded gasoline leaded gasoline Front 62.5 62.5 62.5 62.5 Net weight (kg) Rear 79.5 79.5 79.5 79.5 Total 142 142 142 142 Front 78 78 78 78 Gross weight (kg) Rear 174 174 174 174 (2 riders) Total 252 252 252 252 Front 90/90-21 90/90-21 90/90-21 90/90-21 Tires Rear 130/80-17 130/80-17 130/80-17 130/80-17 Ground clearance (mm) 285 285 285 285 Per- Braking distance (m) 7.9 (40km/h) 7.9 (40km/h) 7.9 (40km/h) 7.9 (40km/h) form- ance Min. turning radius (m) 2.15 2.15 2.15 2.15 Starting motor & Starting motor & Starting motor & Starting motor & Starting system kick starter kick starter kick starter kick starter Type O.H.C. O.H.C. O.H.C. O.H.C. Cylinder arrangement Single cylinder Single cylinder Single cylinder Single cylinder Combustion chamber Semi-sphere type Semi-sphere type Semi-sphere type Semi-sphere type Valve arrangement Twin cam OHC Twin cam OHC Twin cam OHC Twin cam OHC Bore x stroke (mm) 56.5x 49.5 56.5x 49.5 62.0x 49.5 62.0x 49.5 Compression ratio 9.2 0.2 9.2 0.2 9.7 0.2 9.7 0.2 Compression pressure (kg/cm-rpm) 13 2 13 2 16 2 16 2 Max. output (ps/rpm) 12/9000 12/9000 13/9000 13/9000 Max. torque (kg.m/rpm) 0.97/7000 0.97/7000 1.16/7000 1.16/7000 Engine Intake (mm) 5.5° 5.5° 5.5° 5.5° Port Open/Close 27.5° 27.5° 27.5° 27.5° timing Exhaust (mm) 36° 36° 36° 36° Open/Close 4° 4° 4° 4° Valve clearance IN 0.08 mm 0.08 mm 0.08 mm 0.08 mm (Cold engine) EX 0.08 mm 0.08 mm 0.08 mm 0.08 mm Idle speed 1600 rpm 1600 rpm 1600 rpm 1600 rpm Forced pressure & Forced pressure & Forced pressure & Forced pressure & System Lubrication Lubrication type Wet sump wet sump Wet sump Wet sump Oil pump type Inner/outer rotor Inner/outer rotor Inner/outer rotor Inner/outer rotor Oil filter type Wire gauze filter Wire gauze filter Wire gauze filter Wire gauze filter Oil capacity 1.0 liter 1.0 liter 1.0 liter 1.0 liter Cooling Type Air cooling Air cooling Air cooling Air cooling 1-1
