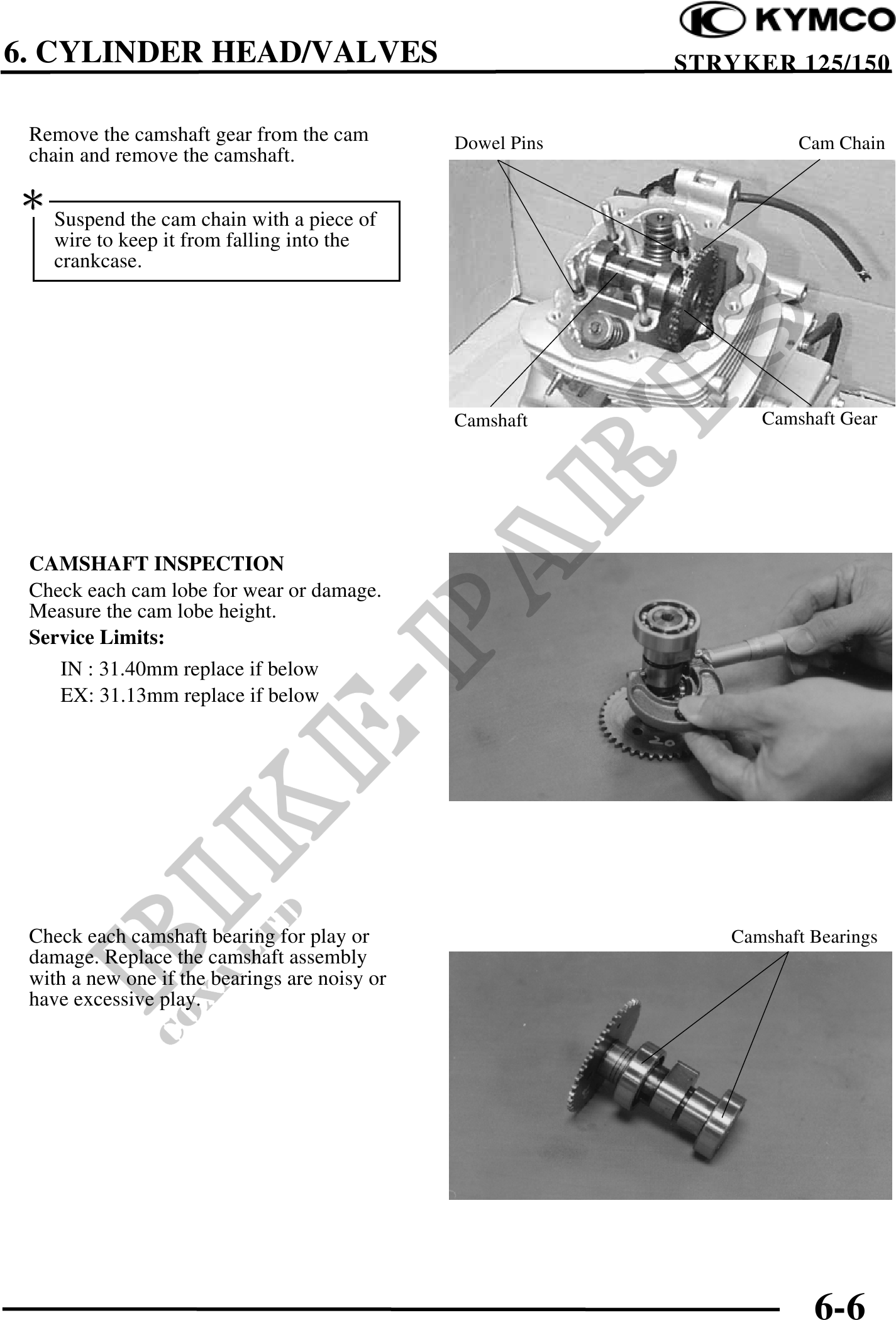

6. CYLINDER HEAD/VALVES STRYKER 125/150
Remove the camshaft gear from the cam Dowel Pins Cam Chain
chain and remove the camshaft.
Suspend the cam chain with a piece of
wire to keep it from falling into the
crankcase.
Camshaft Camshaft Gear
CAMSHAFT INSPECTION
Check each cam lobe for wear or damage.
Measure the cam lobe height.
Service Limits:
IN : 31.40mm replace if below
EX: 31.13mm replace if below
Check each camshaft bearing for play or Camshaft Bearings
damage. Replace the camshaft assembly
with a new one if the bearings are noisy or
have excessive play.
6-6
