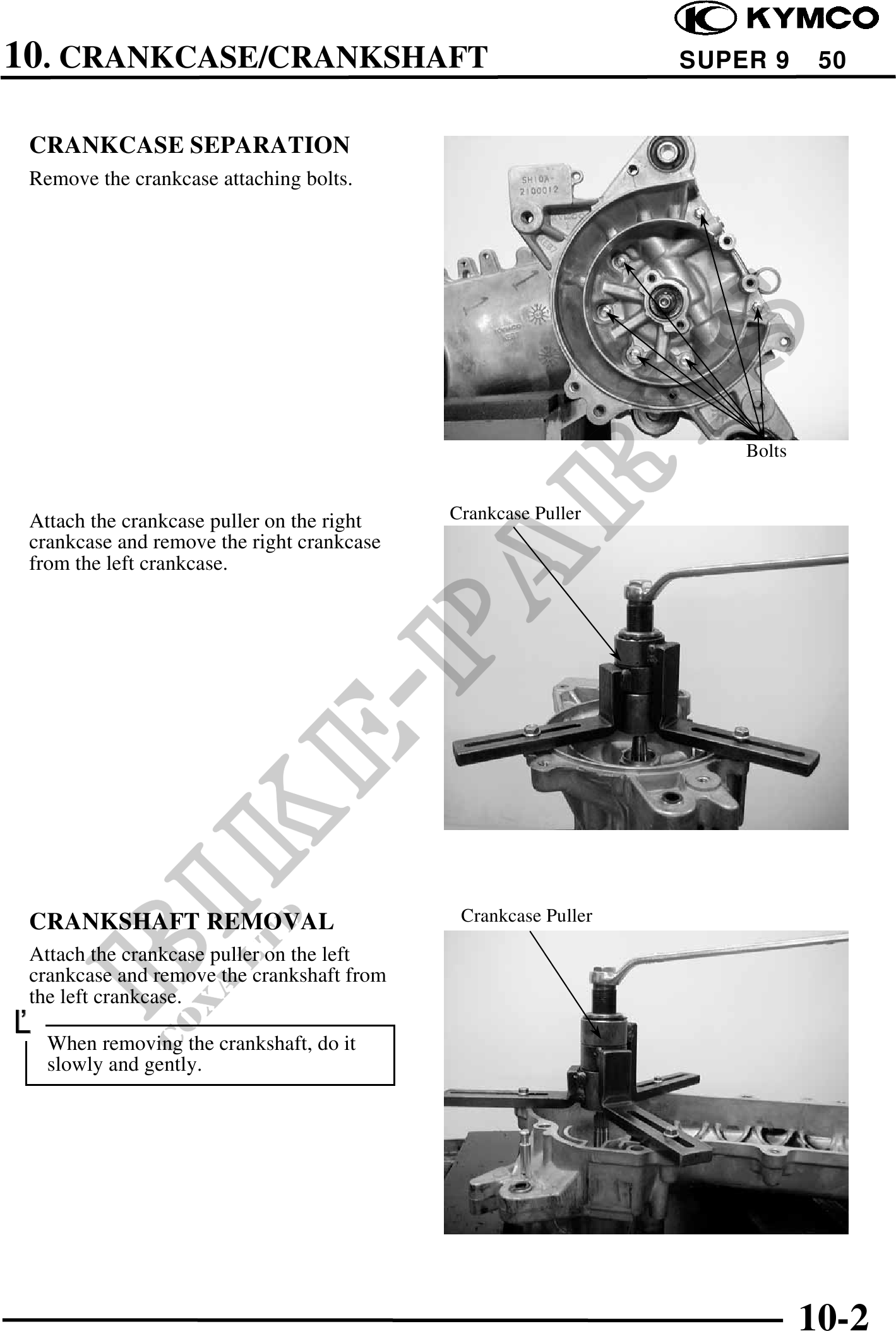

10. CRANKCASE/CRANKSHAFT SUPER 9 50
CRANKCASE SEPARATION
Remove the crankcase attaching bolts.
Bolts
Attach the crankcase puller on the right Crankcase Puller
crankcase and remove the right crankcase
from the left crankcase.
CRANKSHAFT REMOVAL Crankcase Puller
Attach the crankcase puller on the left
crankcase and remove the crankshaft from
the left crankcase.
When removing the crankshaft, do it
slowly and gently.
10-2
