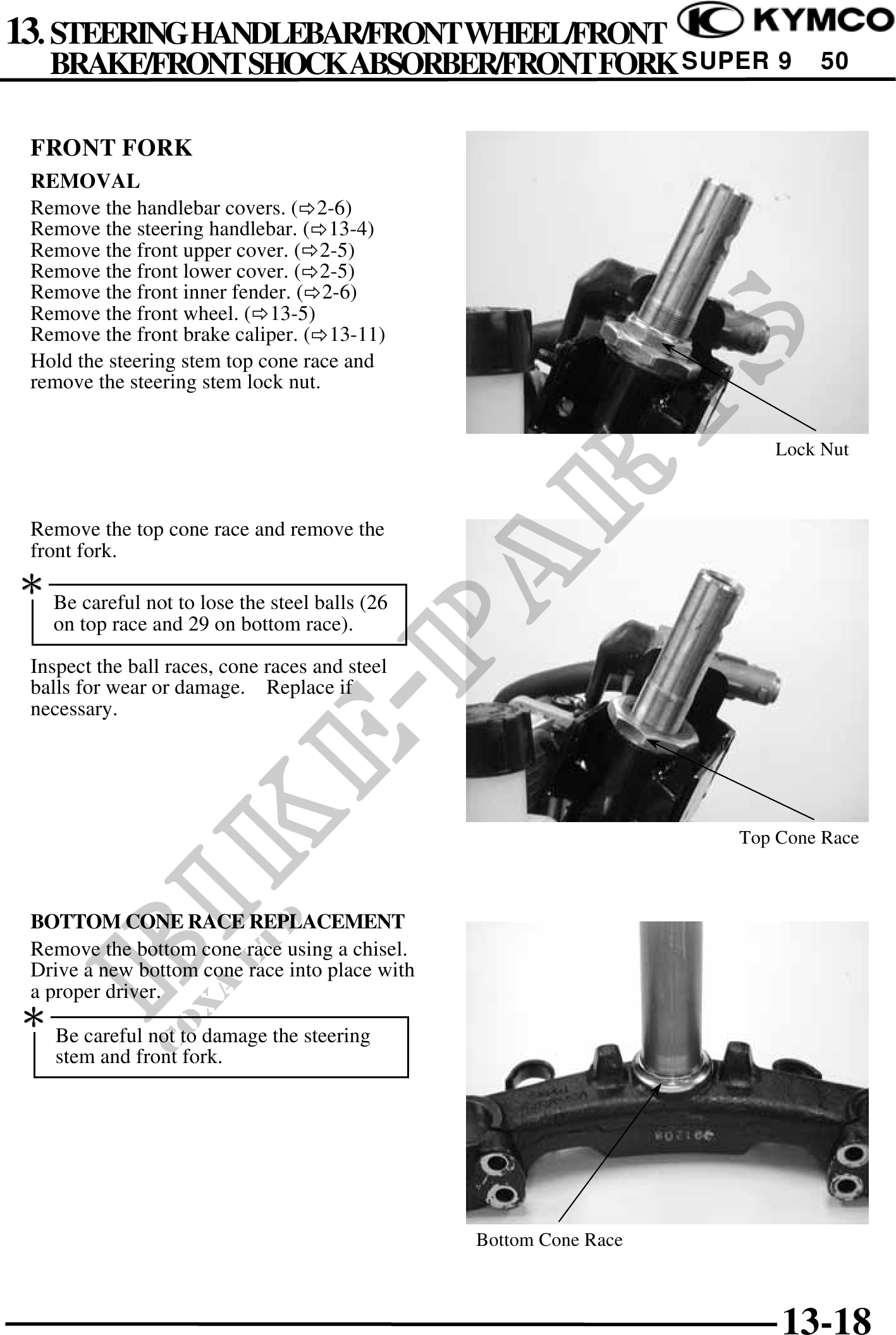

FRONT FORK
REMOVAL
Remove the handlebar covers. ( 2-6)
Remove the steering handlebar. ( 13-4)
Remove the front upper cover. ( 2-5)
Remove the front lower cover. ( 2-5)
Remove the front inner fender. ( 2-6)
Remove the front wheel. ( 13-5)
Remove the front brake caliper. ( 13-11)
Hold the steering stem top cone race and
remove the steering stem lock nut.
Lock Nut
Remove the top cone race and remove the
front fork.
Be careful not to lose the steel balls (26
on top race and 29 on bottom race).
Inspect the ball races, cone races and steel
balls for wear or damage. Replace if
necessary.
Top Cone Race
BOTTOM CONE RACE REPLACEMENT
Remove the bottom cone race using a chisel.
Drive a new bottom cone race into place with
a proper driver.
Be careful not to damage the steering
stem and front fork.
Bottom Cone Race
