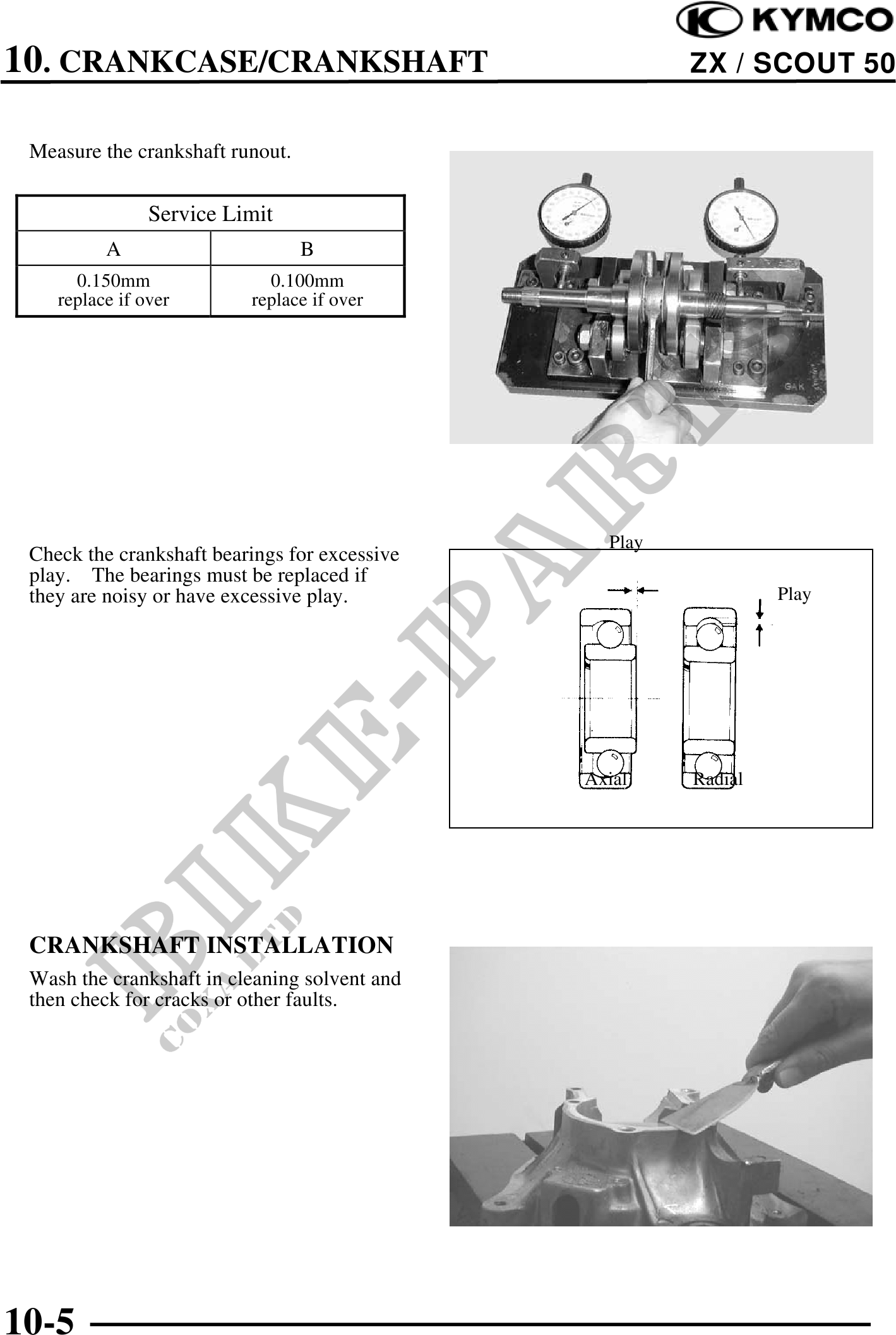

10. CRANKCASE/CRANKSHAFT ZX / SCOUT 50
Measure the crankshaft runout.
Service Limit
A B
0.150mm 0.100mm
replace if over replace if over
Play
Check the crankshaft bearings for excessive
play. The bearings must be replaced if
they are noisy or have excessive play. Play
Axial Radial
CRANKSHAFT INSTALLATION
Wash the crankshaft in cleaning solvent and
then check for cracks or other faults.
10-5
