8. KICK STARTER/DRIVE PULLEY/
CLUTCH/DRIVEN PULLEY ZX / SCOUT 50

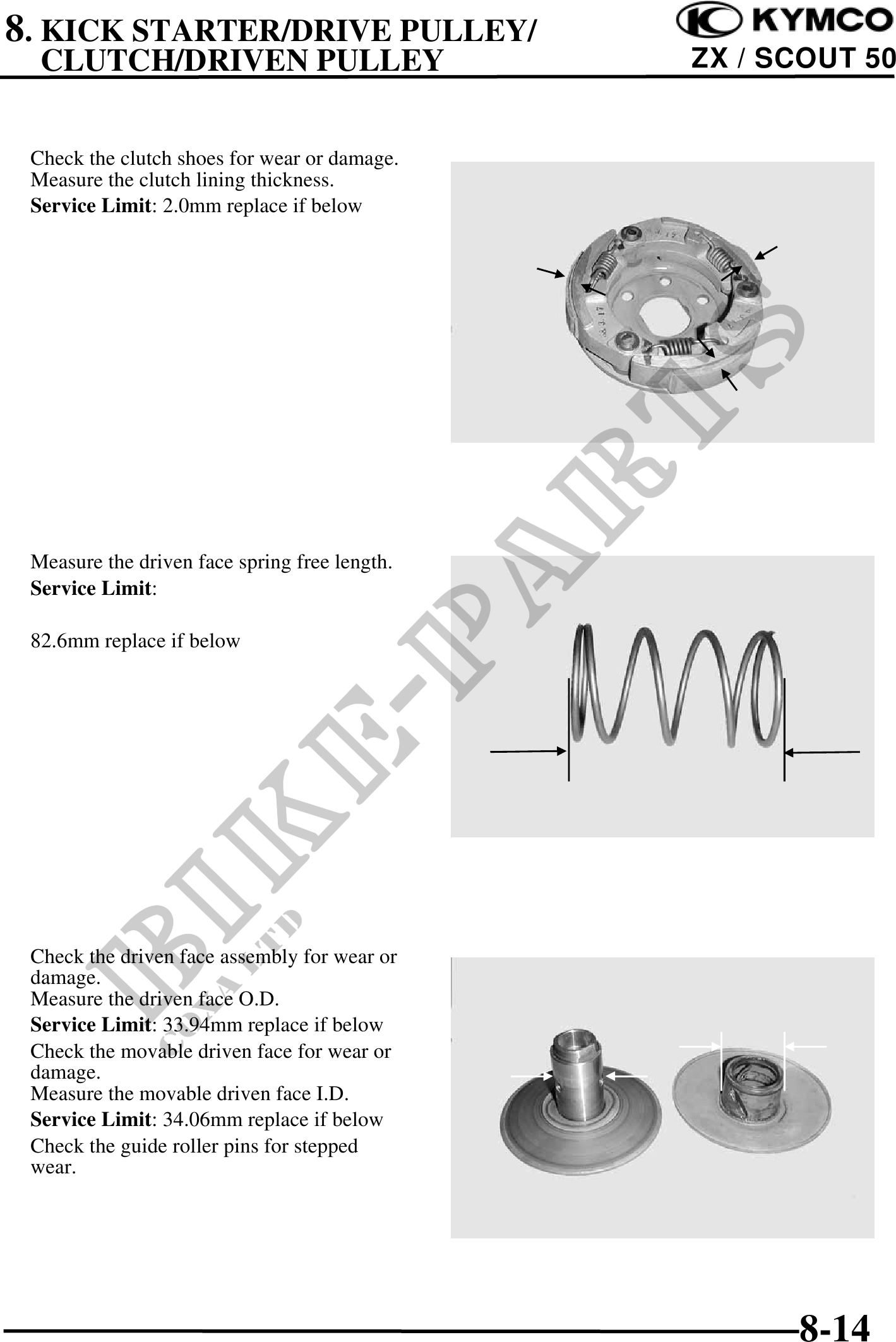

Check the clutch shoes for wear or damage.
Measure the clutch lining thickness.
Service Limit: 2.0mm replace if below
Measure the driven face spring free length.
Service Limit:
82.6mm replace if below
Check the driven face assembly for wear or
damage.
Measure the driven face O.D.
Service Limit: 33.94mm replace if below
Check the movable driven face for wear or
damage.
Measure the movable driven face I.D.
Service Limit: 34.06mm replace if below
Check the guide roller pins for stepped
wear.
