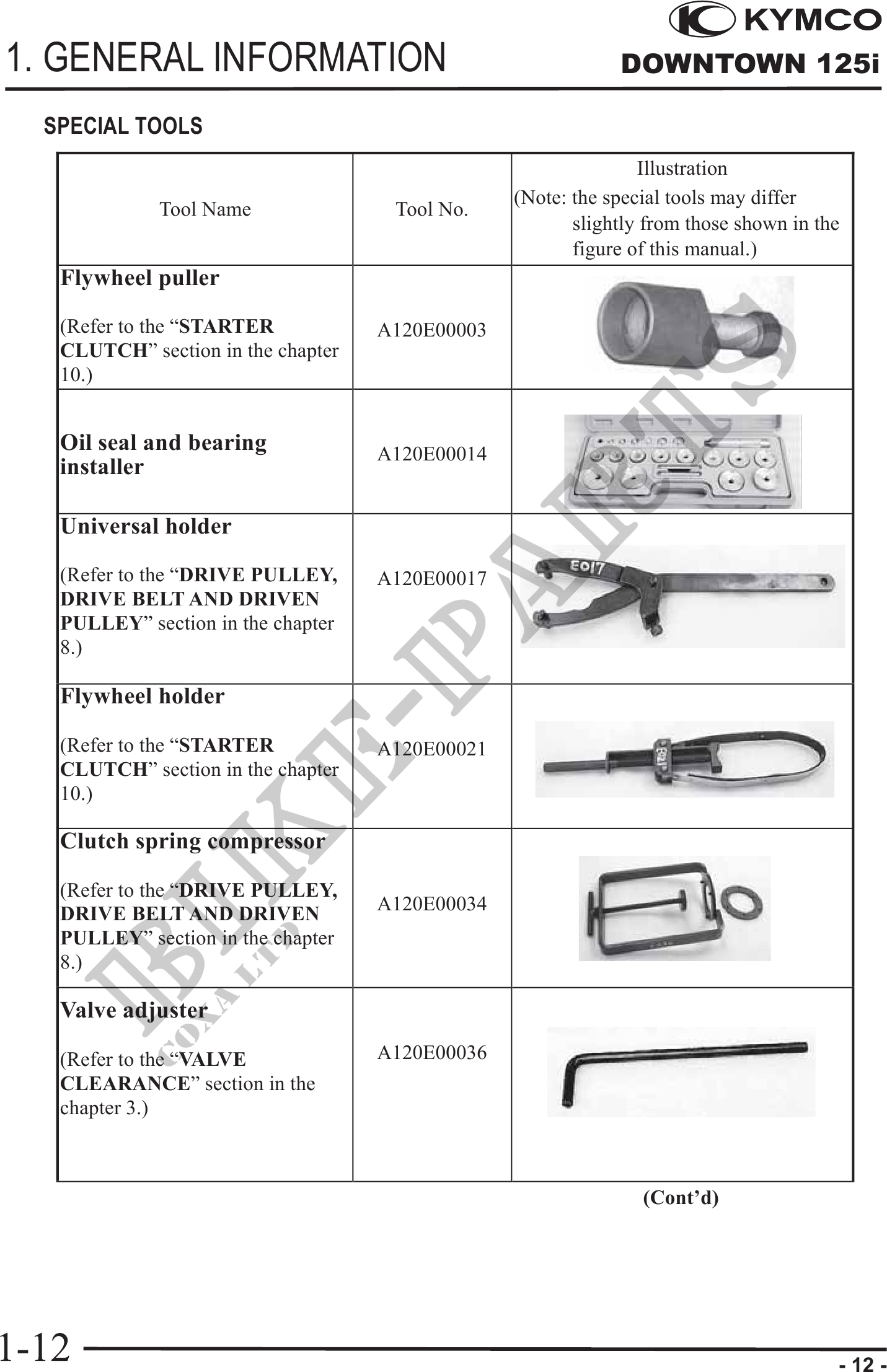

1. GENERAL INFORMATION DOWNTOWN 125i
SPECIAL TOOLS
Illustration
(Note: the special tools may differ
Tool Name Tool No.
slightly from those shown in the
figure of this manual.)
Flywheel puller
(Refer to the "STARTER A120E00003
CLUTCH" section in the chapter
10.)
Oil seal and bearing A120E00014
installer
Universal holder
(Refer to the "DRIVE PULLEY, A120E00017
DRIVE BELT AND DRIVEN
PULLEY" section in the chapter
8.)
Flywheel holder
(Refer to the "STARTER A120E00021
CLUTCH" section in the chapter
10.)
Clutch spring compressor
(Refer to the "DRIVE PULLEY,
A120E00034
DRIVE BELT AND DRIVEN
PULLEY" section in the chapter
8.)
Valve adjuster
(Refer to the "VALVE A120E00036
CLEARANCE" section in the
chapter 3.)
(Cont'd)
- 12 -
