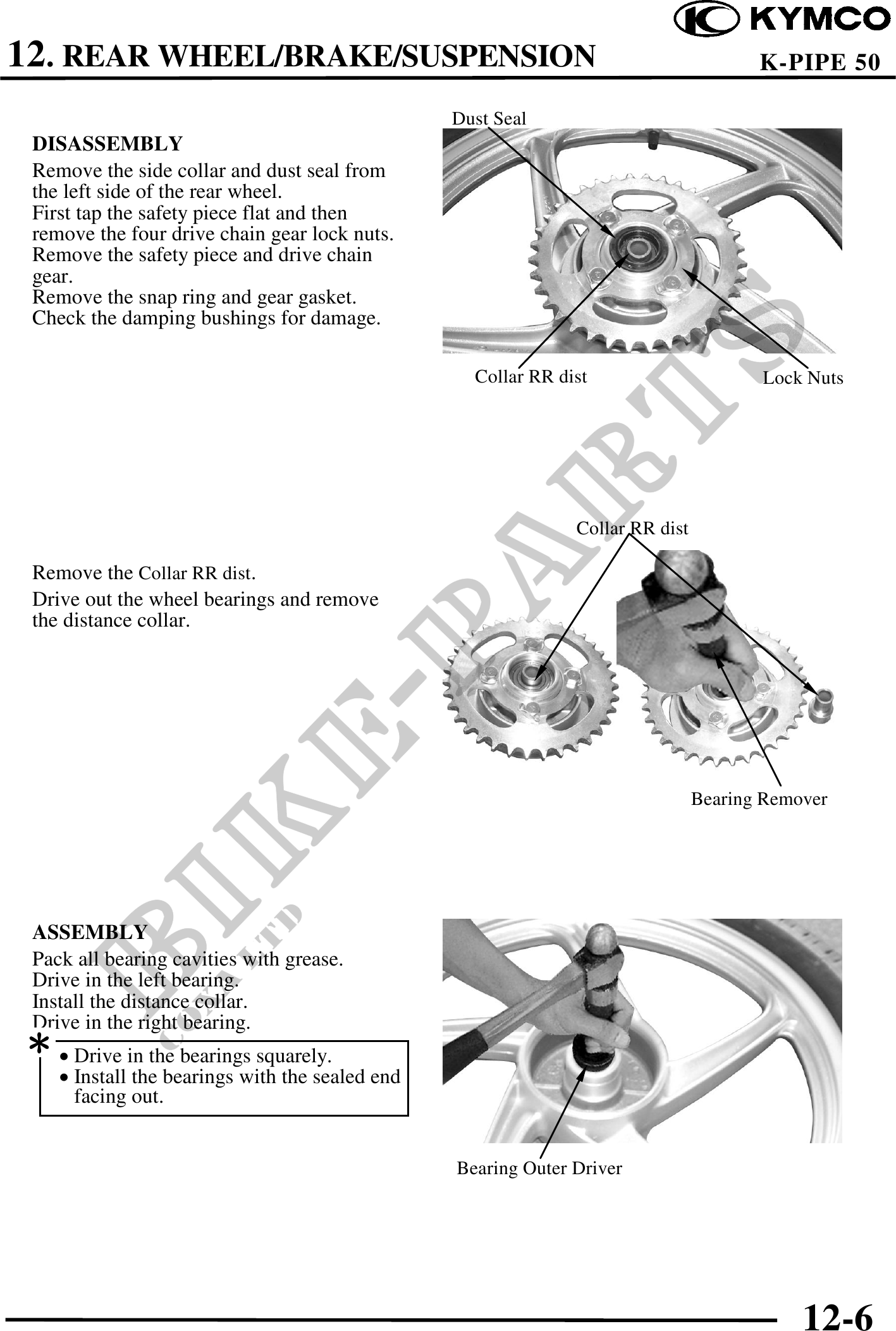

12. REAR WHEEL/BRAKE/SUSPENSION K-PIPE 50
50
Dust Seal
DISASSEMBLY
Remove the side collar and dust seal from
the left side of the rear wheel.
First tap the safety piece flat and then
remove the four drive chain gear lock nuts.
Remove the safety piece and drive chain
gear.
Remove the snap ring and gear gasket.
Check the damping bushings for damage.
Collar RR dist Lock Nuts
Collar RR dist
Remove the Collar RR dist.
Drive out the wheel bearings and remove
the distance collar.
Bearing Remover
ASSEMBLY
Pack all bearing cavities with grease.
Drive in the left bearing.
Install the distance collar.
Drive in the right bearing.
Drive in the bearings squarely.
Install the bearings with the sealed end
facing out.
Bearing Outer Driver
12-6
