11.CRANKSCASE/CRANKSHAFT/
BALANCE SHAFT ATV 300/250

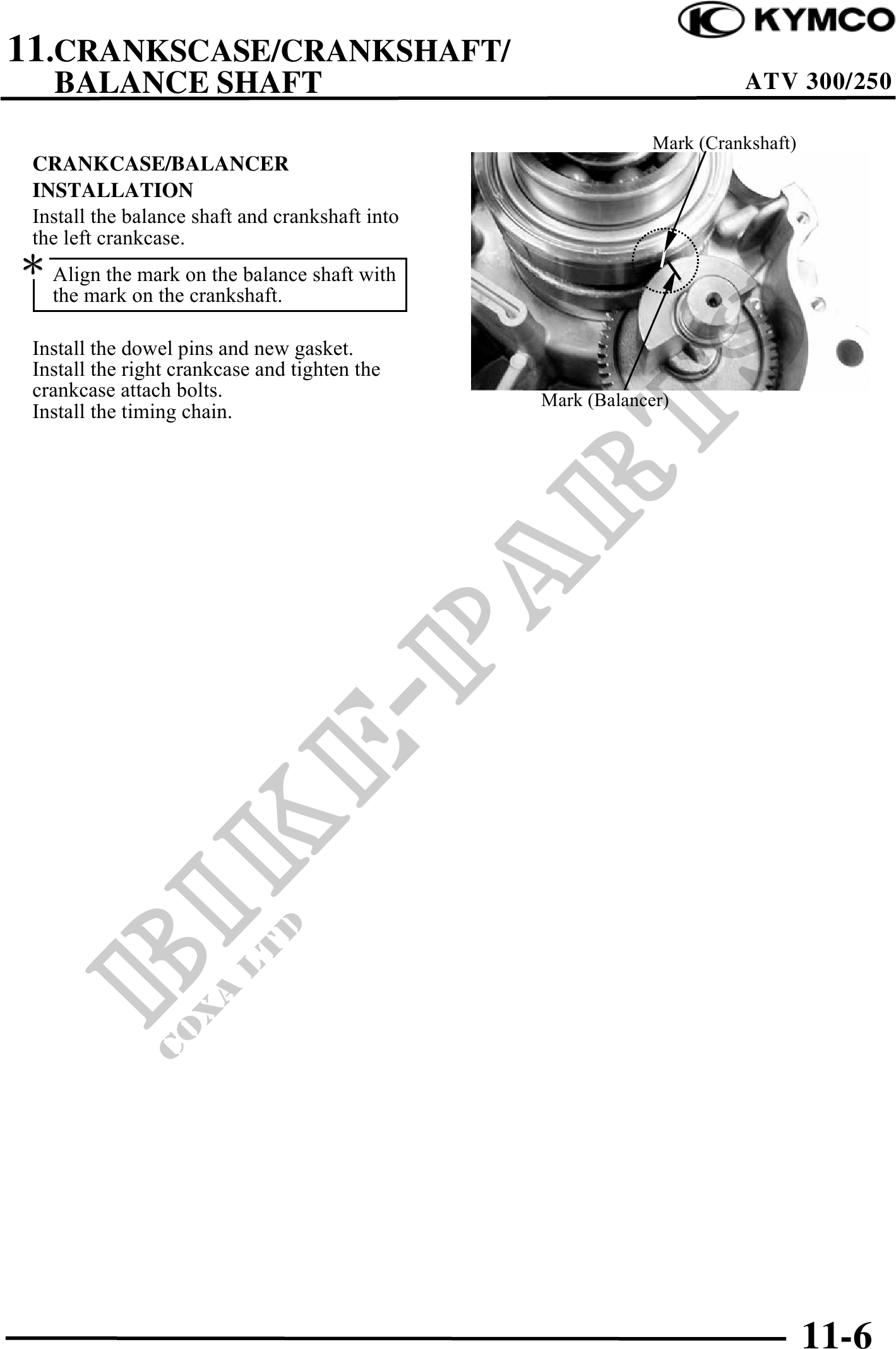

Mark (Crankshaft)
CRANKCASE/BALANCER
INSTALLATION
Install the balance shaft and crankshaft into
the left crankcase.
Align the mark on the balance shaft with
the mark on the crankshaft.
Install the dowel pins and new gasket.
Install the right crankcase and tighten the
crankcase attach bolts. Mark (Balancer)
Install the timing chain.
11-6
