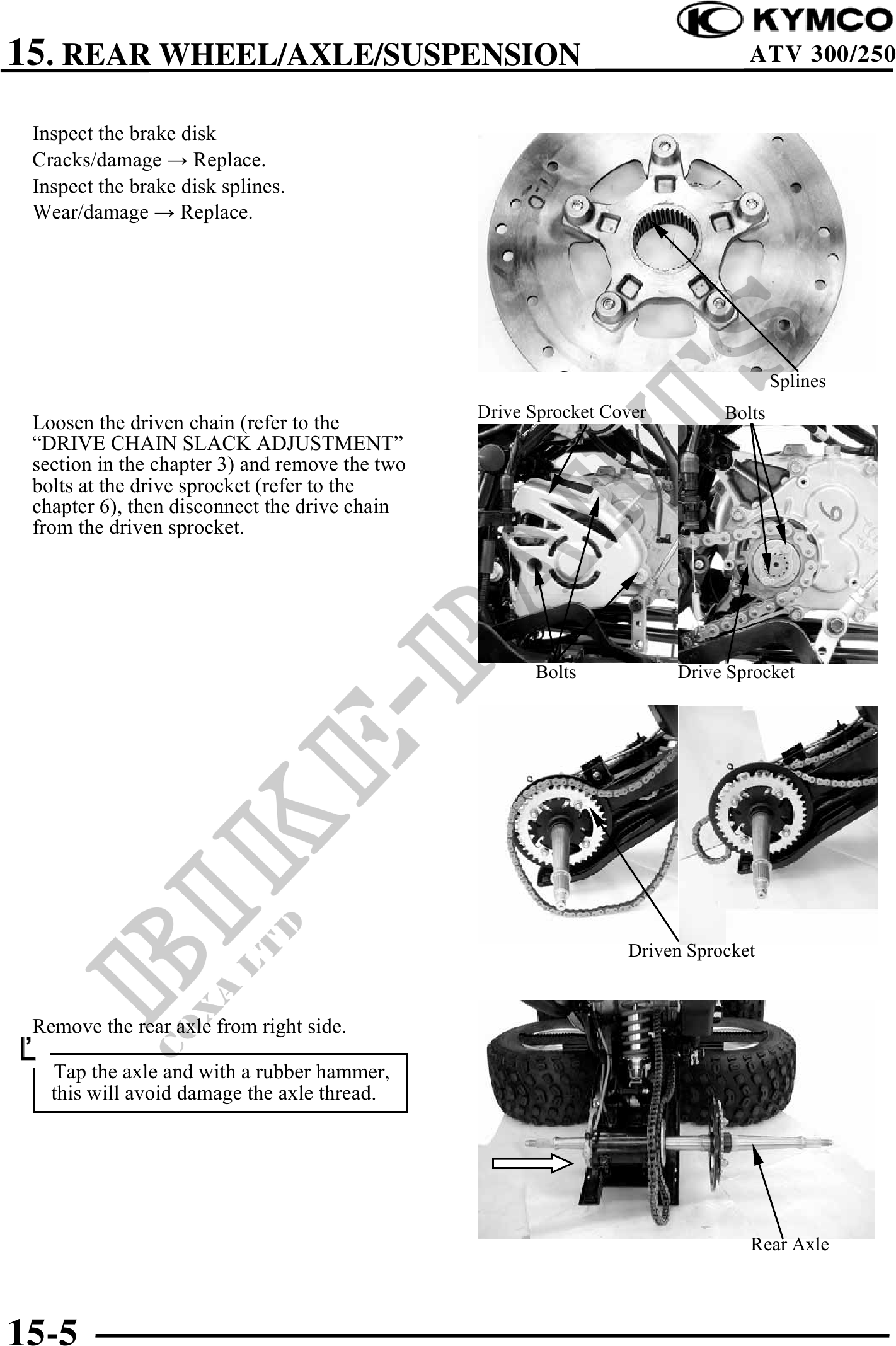

15. REAR WHEEL/AXLE/SUSPENSION ATV 300/250
Inspect the brake disk
Cracks/damage Replace.
Inspect the brake disk splines.
Wear/damage Replace.
Splines
Drive Sprocket Cover Bolts
Loosen the driven chain (refer to the
"DRIVE CHAIN SLACK ADJUSTMENT"
section in the chapter 3) and remove the two
bolts at the drive sprocket (refer to the
chapter 6), then disconnect the drive chain
from the driven sprocket.
Bolts Drive Sprocket
Driven Sprocket
Remove the rear axle from right side.
Tap the axle and with a rubber hammer,
this will avoid damage the axle thread.
Rear Axle
15-5
