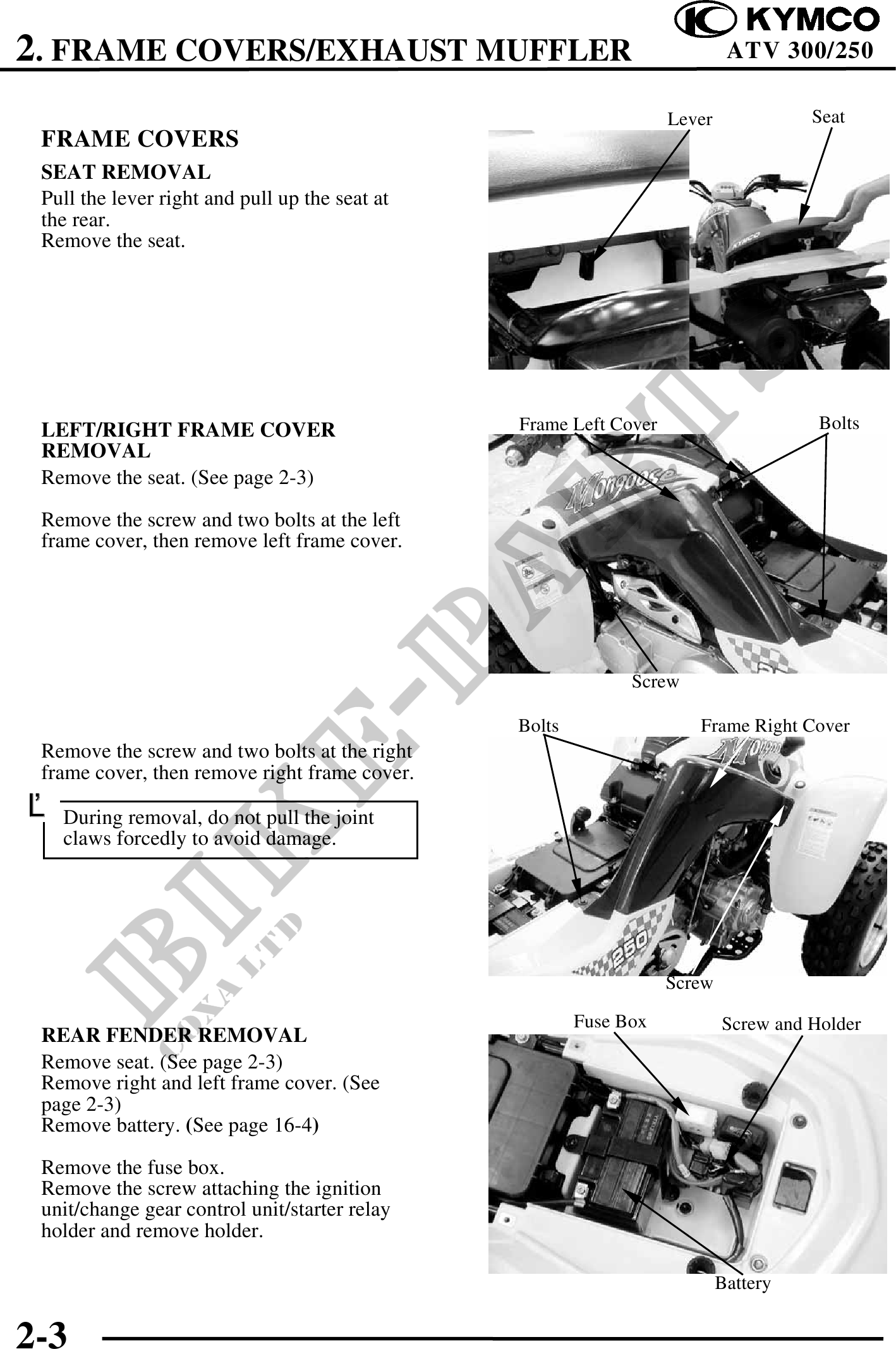

2. FRAME COVERS/EXHAUST MUFFLER ATV 300/250
Lever Seat
FRAME COVERS
SEAT REMOVAL
Pull the lever right and pull up the seat at
the rear.
Remove the seat.
LEFT/RIGHT FRAME COVER Frame Left Cover Bolts
REMOVAL
Remove the seat. (See page 2-3)
Remove the screw and two bolts at the left
frame cover, then remove left frame cover.
Screw
Bolts Frame Right Cover
Remove the screw and two bolts at the right
frame cover, then remove right frame cover.
During removal, do not pull the joint
claws forcedly to avoid damage.
Screw
Fuse Box Screw and Holder
REAR FENDER REMOVAL
Remove seat. (See page 2-3)
Remove right and left frame cover. (See
page 2-3)
Remove battery. (See page 16-4)
Remove the fuse box.
Remove the screw attaching the ignition
unit/change gear control unit/starter relay
holder and remove holder.
Battery
2-3
