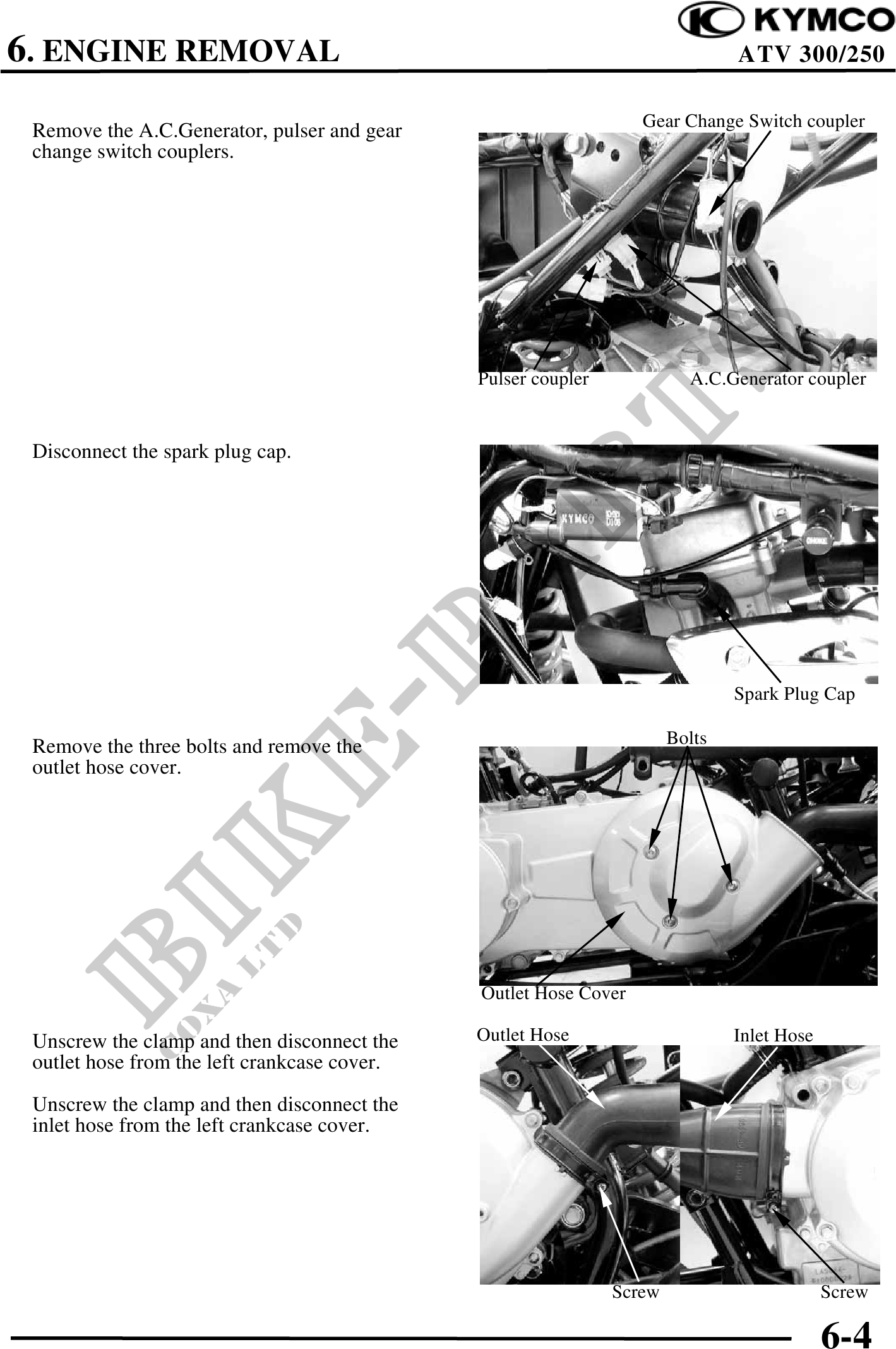

6. ENGINE REMOVAL ATV 300/250
Gear Change Switch coupler
Remove the A.C.Generator, pulser and gear
change switch couplers.
Pulser coupler A.C.Generator coupler
Disconnect the spark plug cap.
Spark Plug Cap
Remove the three bolts and remove the Bolts
outlet hose cover.
Outlet Hose Cover
Unscrew the clamp and then disconnect the Outlet Hose Inlet Hose
outlet hose from the left crankcase cover.
Unscrew the clamp and then disconnect the
inlet hose from the left crankcase cover.
Screw Screw
6-4
