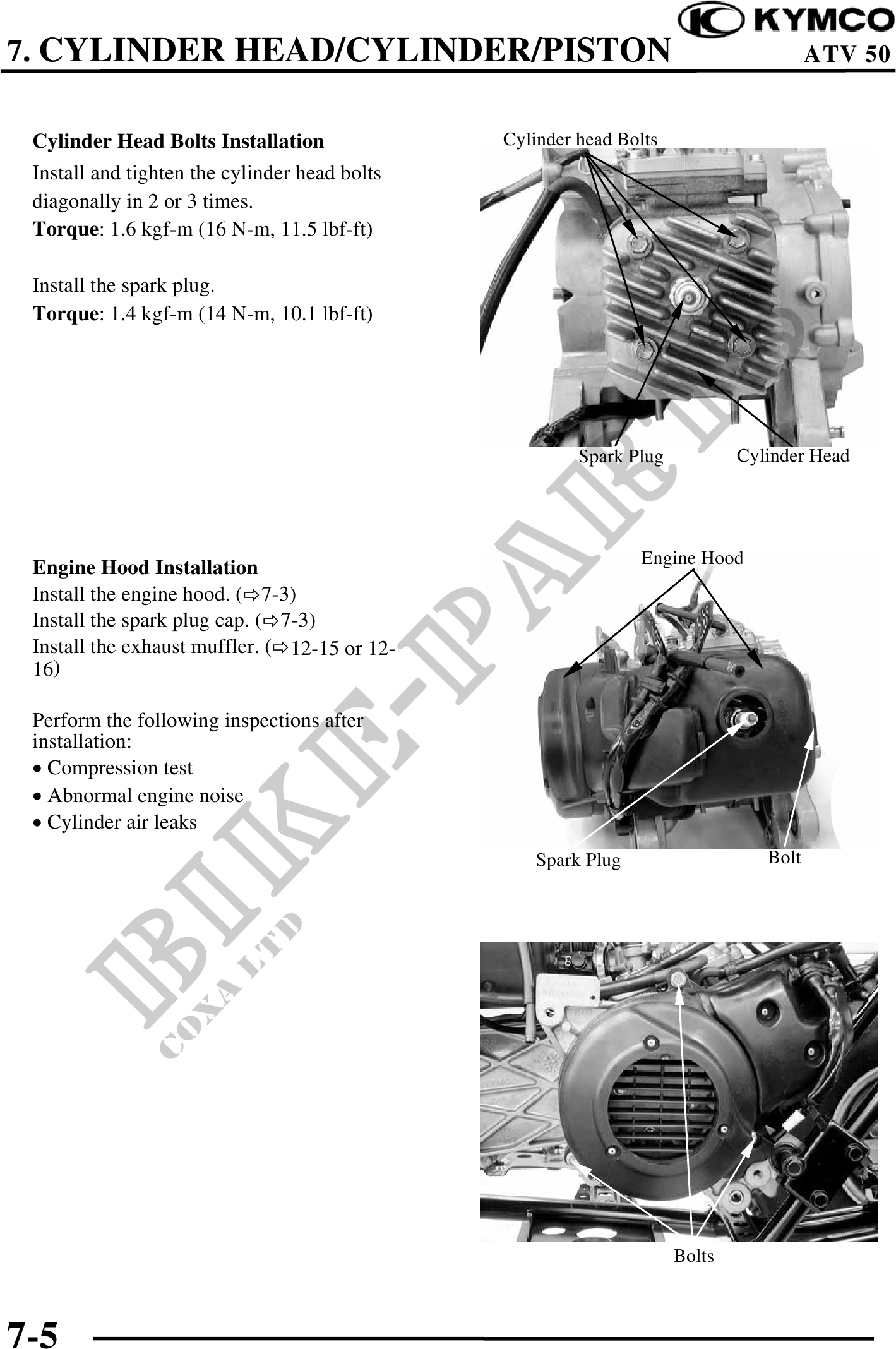

7. CYLINDER HEAD/CYLINDER/PISTON ATV 50
Cylinder Head Bolts Installation Cylinder head Bolts
Install and tighten the cylinder head bolts
diagonally in 2 or 3 times.
Torque: 1.6 kgf-m (16 N-m, 11.5 lbf-ft)
Install the spark plug.
Torque: 1.4 kgf-m (14 N-m, 10.1 lbf-ft)
Spark Plug Cylinder Head
Engine Hood
Engine Hood Installation
Install the engine hood. ( 7-3)
Install the spark plug cap. ( 7-3)
Install the exhaust muffler. ( 12-15 or 12-
16)
Perform the following inspections after
installation:
· Compression test
· Abnormal engine noise
· Cylinder air leaks
Spark Plug Bolt
Bolts
7-5
