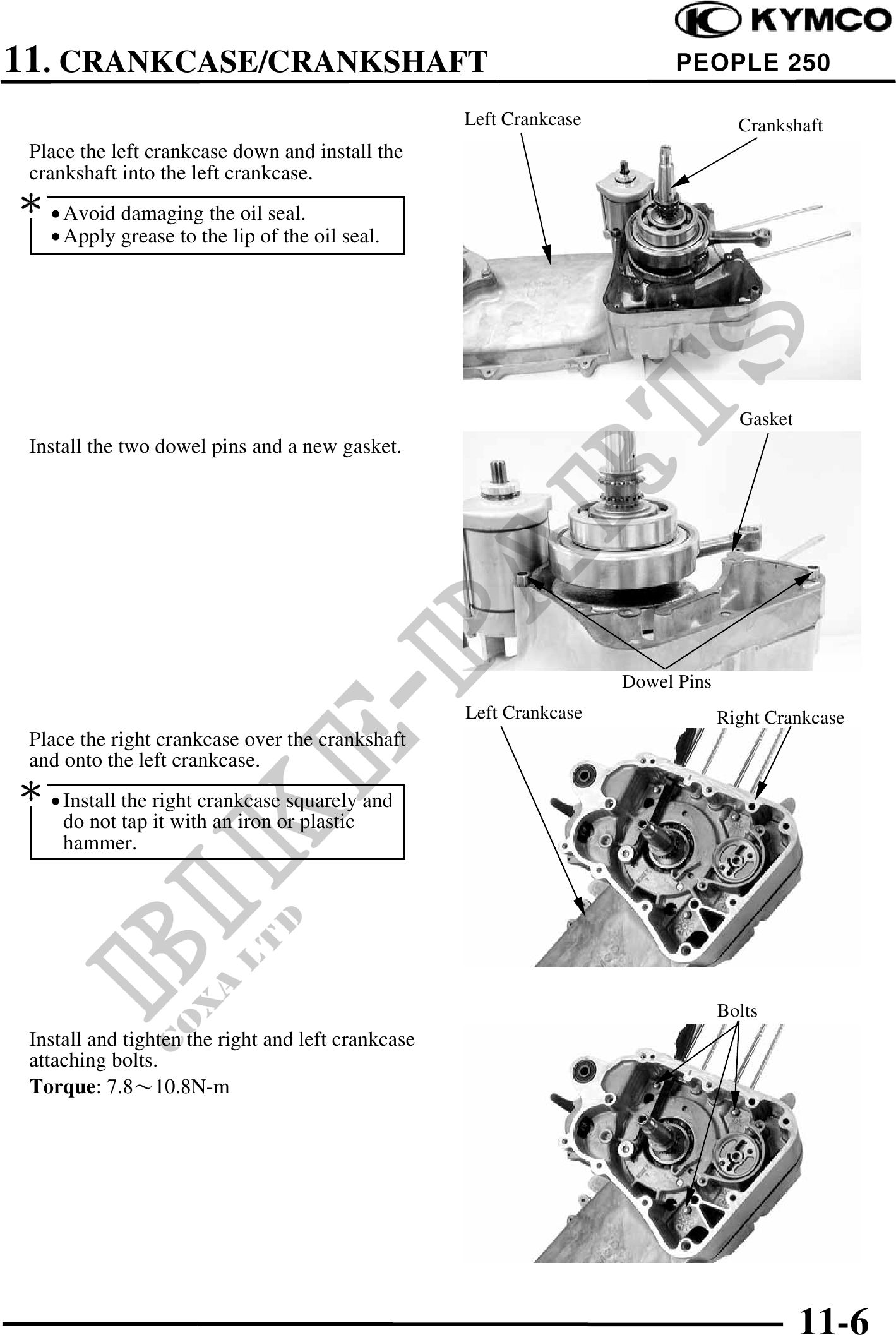

11. CRANKCASE/CRANKSHAFT PEOPLE 250
Left Crankcase Crankshaft
Place the left crankcase down and install the
crankshaft into the left crankcase.
· Avoid damaging the oil seal.
· Apply grease to the lip of the oil seal.
Gasket
Install the two dowel pins and a new gasket.
Dowel Pins
Left Crankcase Right Crankcase
Place the right crankcase over the crankshaft
and onto the left crankcase.
· Install the right crankcase squarely and
do not tap it with an iron or plastic
hammer.
Bolts
Install and tighten the right and left crankcase
attaching bolts.
Torque: 7.810.8N-m
11-6
