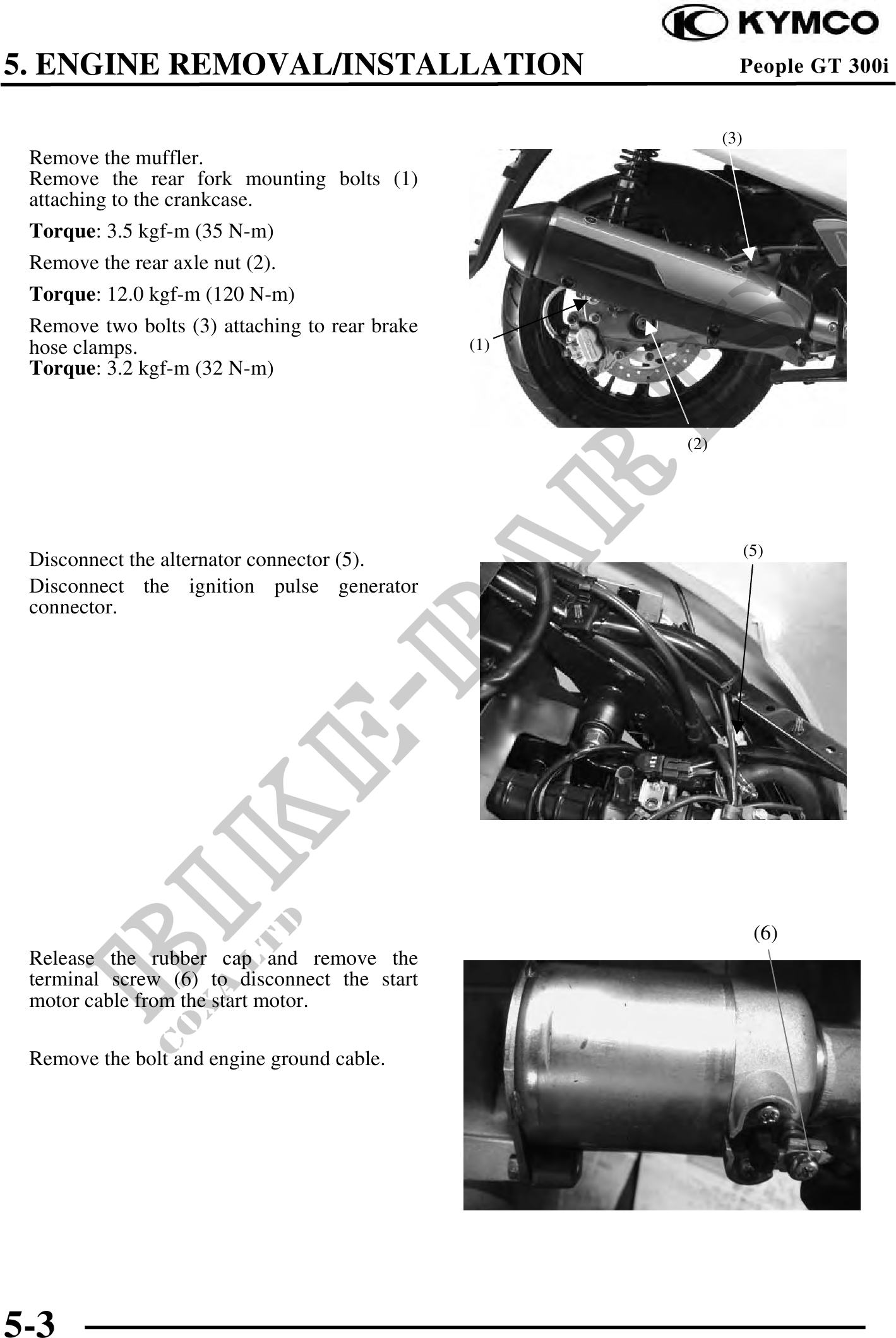

5. ENGINE REMOVAL/INSTALLATION People GT 300i
(3)
Remove the muffler.
Remove the rear fork mounting bolts (1)
attaching to the crankcase.
Torque: 3.5 kgf-m (35 N-m)
Remove the rear axle nut (2).
Torque: 12.0 kgf-m (120 N-m)
Remove two bolts (3) attaching to rear brake
hose clamps. (1)
Torque: 3.2 kgf-m (32 N-m)
(2)
(5)
Disconnect the alternator connector (5).
Disconnect the ignition pulse generator
connector.
(6)
Release the rubber cap and remove the
terminal screw (6) to disconnect the start
motor cable from the start motor.
Remove the bolt and engine ground cable.
5-3
