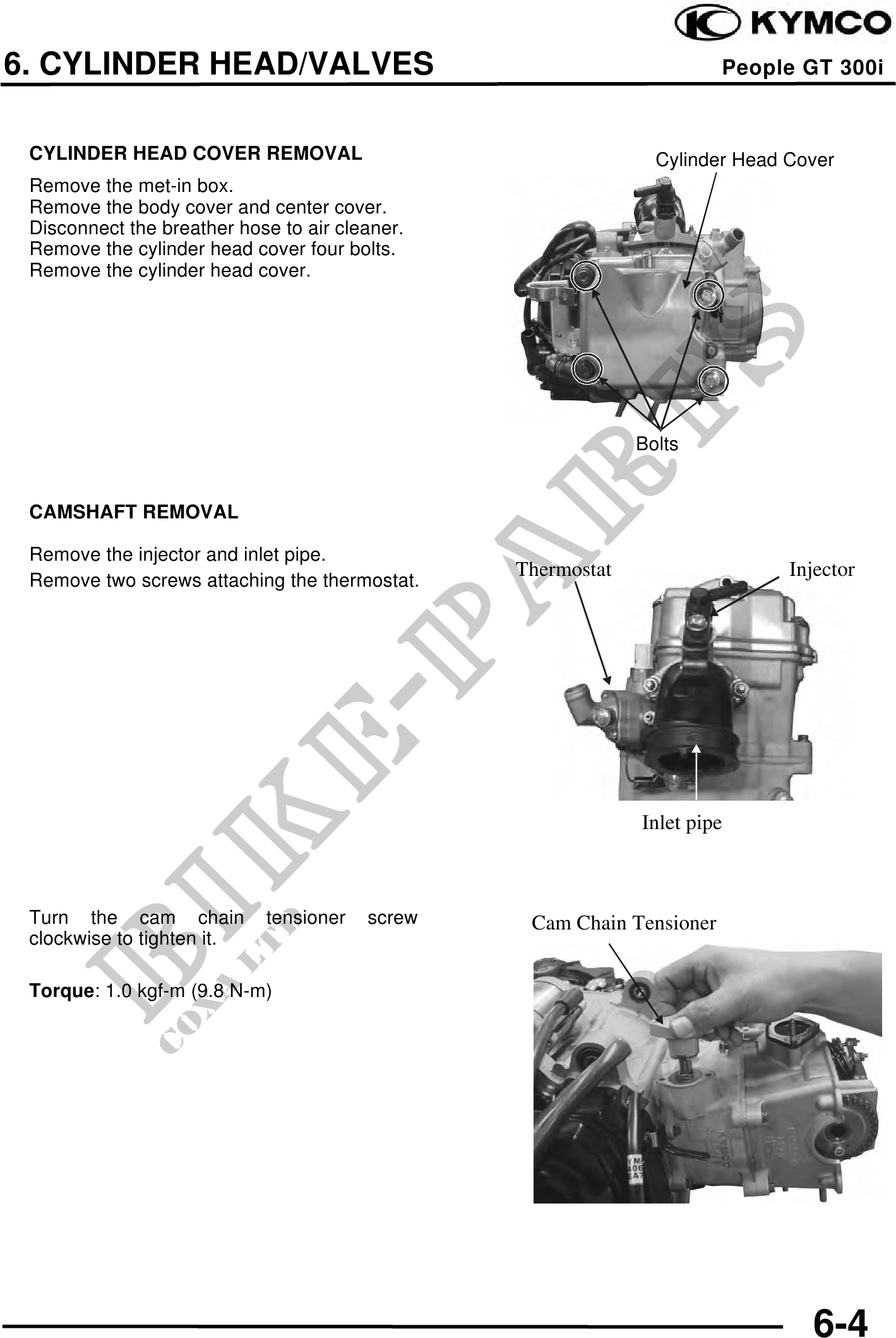

6. CYLINDER HEAD/VALVES People GT 300i
CYLINDER HEAD COVER REMOVAL Cylinder Head Cover
Remove the met-in box.
Remove the body cover and center cover.
Disconnect the breather hose to air cleaner.
Remove the cylinder head cover four bolts.
Remove the cylinder head cover.
Bolts
CAMSHAFT REMOVAL
Remove the injector and inlet pipe.
Thermostat Injector
Remove two screws attaching the thermostat.
Inlet pipe
Turn the cam chain tensioner screw Cam Chain Tensioner
clockwise to tighten it.
Torque: 1.0 kgf-m (9.8 N-m)
6-4
